The Hager Quadro5 Internal Back Plate 1800x50 mm provides a robust mounting surface for equipment inside Quadro5 enclosures. Sized 1775 x 534 x 2.5 mm, it’s made of galvanized steel for rigidity and corrosion resistance. Ideal for neat device fixing and cable routing, it optimizes panel layout, supports reliable assembly, and speeds installation in distribution boards.
EAN
3250612634897
VPE
1 piece
Internal back plate Quadro5 1625x500 mm Galvanised steel 2.5 mm FM489
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Dimensions
-
Height1775 mm
-
Width534 mm
-
Depth2.50 mm
Materials
-
MaterialSteel
-
TreatmentGalvanised
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

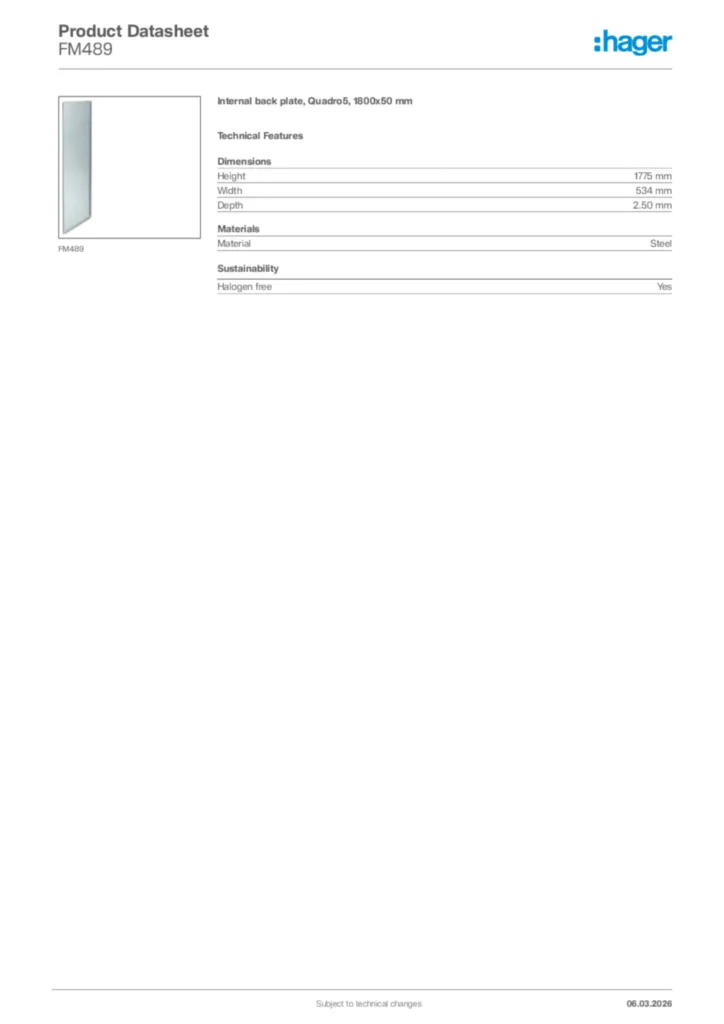

Hager Product data sheet FM489
