The Hager Quadro5 Couple Side Panels H510 D260 mm provide robust lateral enclosure for switchboards. Made of varnished steel in pure white, they ensure rigidity, impact and corrosion resistance, and a clean finish. Sized 510 x 224 x 260 mm, they fit Quadro5 systems as side panels (not rear), protecting components and cabling while completing the assembly.
EAN
3250612634002
Packaging
1 Piece
Quadro5 Coupled Side Panels Steel Pure White H660 D260 Powder Coated FM400
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height510 mm
-
Width224 mm
-
Depth260 mm
Materials
-
ColourPure white
-
MaterialSteel
-
TreatmentVarnished
Instructions
-
Suitable as rear panelNo
-
Suitable as side panelYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

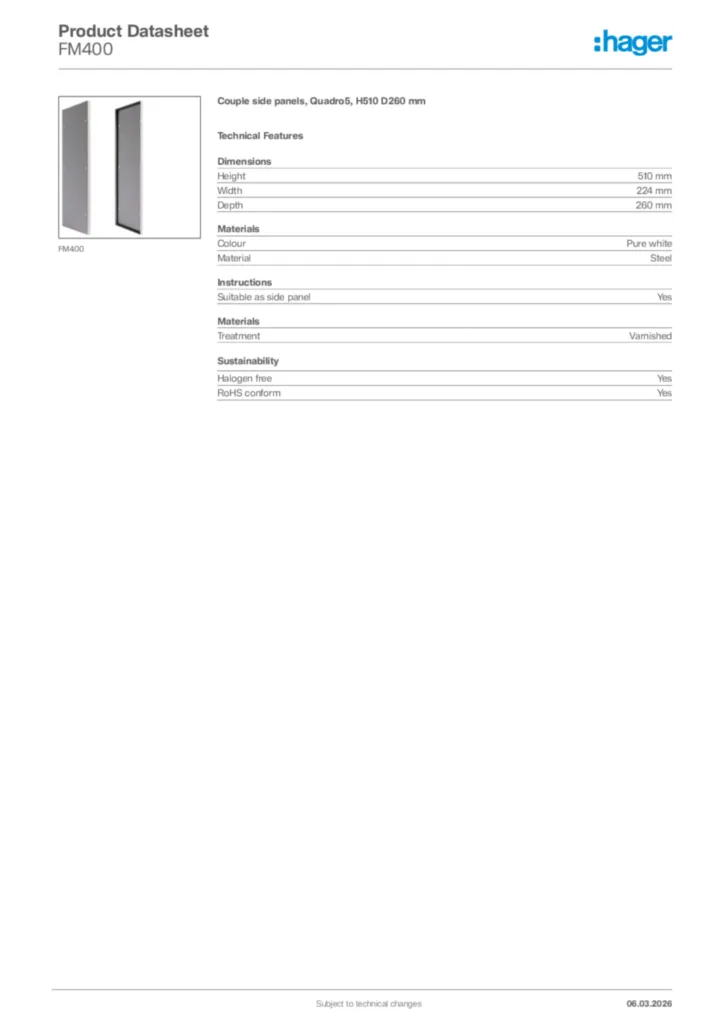

Hager Product data sheet FM400
Couple side panels, Quadro5, H510 D260 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF284,72 kB
Declaration
Declaration of conformity International 2022-10-25
PDF306,93 kB
Declaration
Declaration of conformity International 2023-03-23
PDF275,65 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
EU-Konformitätserklärung ZAS132DFM2
Declaration of conformity International 2022-10-25
PDF318,13 kB
