    • FL72S
    EAN
    3250612550258
    Packaging
    1 Piece

    enclosure, univers, IP65, CL 2, 1150 x 600 x 300mm, Polyester FL72S

    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    enclosure, univers, IP65, CL 2, 1150 x 600 x 300mm, Polyester

    FL72S

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (26)
    • Mounting plate for distri­bu­tion board 15 products available
    • Cable gland shroud 2 products available
    • Lock system 3 products available
    • Base/­base element 1 products available
    • Insert for lock system 2 products available
    • Key for enclos­ures/cab­inets 1 products available

    Complete your system

    • Mounting plate for distri­bu­tion board
    • Cable gland shroud
    • Lock system
    • Base/­base element
    • Insert for lock system
    • Key for enclos­ures/cab­inets
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Mounting accessories
    • FL419A

      Internal, metal mounting plate, orion.plus, 1230x693x2mm
      €0.00  / *
    • FL417A

      Internal, metal mounting plate, orion.plus, 930x693x2mm
      €0.00  / *
    • FL416A

      Internal, metal mounting plate, orion.plus, 930x393x2mm
      €0.00  / *
    • FL415A

      Steel mounting plate, Orion.Plus, 780x443 mm
      €0.00  / *
    • FL413A

      Steel mounting plate, Orion.Plus, 630x443 mm
      €0.00  / *
    • FL412A

      Steel mounting plate, Orion.Plus, 630x343 mm
      €0.00  / *
    • FL423A

      Insulated mounting plate, Orion.Plus, 285x245 mm
      €0.00  / *
    • FL424A

      Insulated mounting plate, Orion.Plus, 435x245 mm
      €0.00  / *
    • FL425A

      Insulated mounting plate, Orion.Plus, 435x345 mm
      €0.00  / *
    • FL426A

      Insulated mounting plate, Orion.Plus, 585x345 mm
      €0.00  / *
    • FL427A

      Insulated mounting plate, Orion.Plus, 585x445 mm
      €0.00  / *
    • FL429A

      Insulated mounting plate, Orion.Plus, 735x545 mm
      €0.00  / *
    • FL410A

      Steel mounting plate, Orion.Plus, 580x343 mm
      €0.00  / *
    • FL411A

      Steel mounting plate, Orion.Plus, 580x543 mm
      €0.00  / *
    • FL418A

      Internal, metal mounting plate, orion.plus, 1230x543x2mm
      €0.00  / *
    • VZ013V

      Plugs for pressure equalization fitting, universal, for M20/25
      €0.00  / *
    • VZ021V

      Enclosure, vector, sealing plug, for pressure balance screw joint M2
      €0.00  / *
    • FZ502

      Lock, univers, triangular 7mm, with 1 key
      €0.00  / *
    • FZ527

      Lock, univers, big T-handle, with lock-Nr. E455 with 2 keys for encl. IP5-6
      €0.00  / *
    • FZ526

      Lock, univers, big T-handle, with lock-Nr. E405 with 2 keys for encl. IP5-6
      €0.00  / *
    • FL960A

      Plinth, Orion.Plus, H150 600x300 mm
      €0.00  / *
    • FZ517

      Key lock insert, Quadro5, 6 mm
      €0.00  / *
    • FZ515

      Key lock insert, Quadro5, 8 mm
      €0.00  / *
    • FZ850

      Key lock insert, Orion.Plus
      €0.00  / *
    • FL874A

      Ground wire kit, Orion.Plus
      €0.00  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      €0.00  / *

    Technical properties

    Dimen­sions
    • Height
      1150 mm
    • Width
      600 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-point lever, 4-side 8 mm
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      2
    • Number of flange plate open­ings
      0
    • Number of rows
      7
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Varnished
    • Material
      Glass rein­forced poly­ester
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current IN
      400 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Poly. enc., Pedro, pl. d. 500x430x210mm (English)
    PDF
    4,33 MB
    REACH declaration FL72S
    PDF
    RoHS report FL72S
    PDF

    Downloads

    • Image FL72S | Hager Africa

      Product Image FL72S

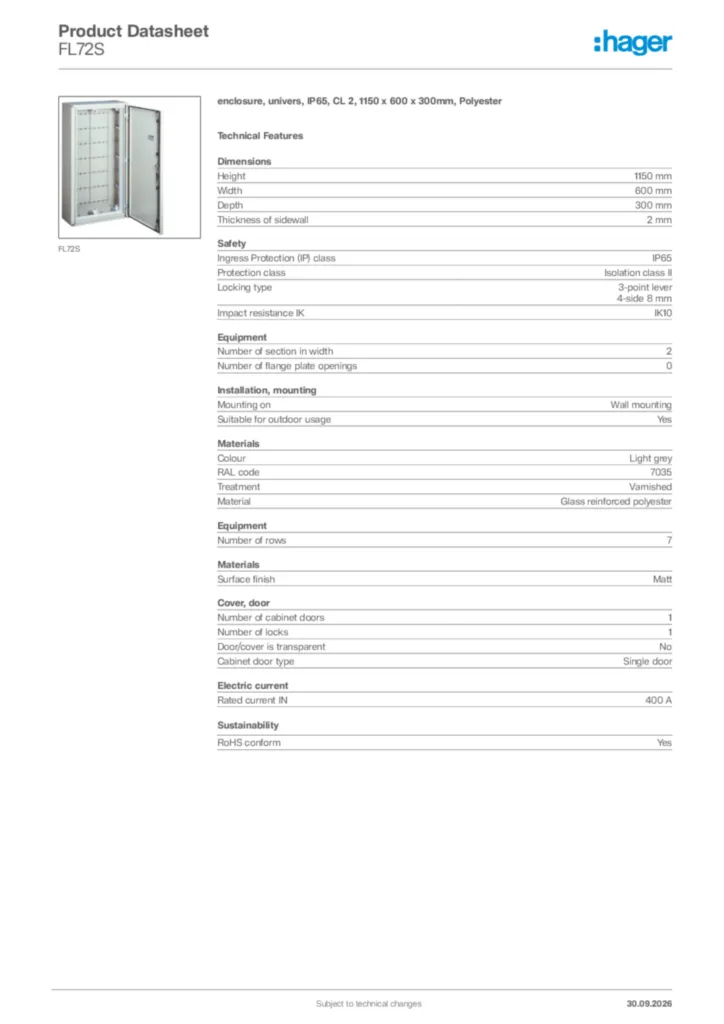

    • Product datasheet

      Image Hager Product data sheet FL72S | Hager Africa

      Hager Product data sheet FL72S

      enclosure, univers, IP65, CL 2, 1150 x 600 x 300mm, Polyester

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-07-22 | Hager Africa

      Declaration of conformity en-GB 2026-07-22

      PDF
      1,01 MB
      Image Declaration of conformity en-GB 2026-08-04 | Hager Africa

      Declaration of conformity en-GB 2026-08-04

      PDF
      1,06 MB
      Image EU Declaration of Conformity | Hager Africa

      EU Declaration of Conformity

      Declaration of conformity en-GB 2026-03-06

      PDF
      709,43 kB
