The Hager Orion.Plus polyester double enclosure with plain double doors, 1150x1100x300 mm, delivers reliable housing for distribution up to 630 A. IP65, IK10 and Class II insulation ensure safe, outdoor-ready performance. Two sections wide with 6 rows optimize layout. Wall-mount, RAL7035 light grey, corrosion‑resistant, 1.5 mm sidewalls. 3-point 7 mm key lock secures access—ideal for industrial and infrastructure use.

EAN

3250610672631

Packaging

1 Piece

orion+ waterproof enclosures and cabinets

Orion.Plus polyester double enclosure IP65 IK10 Class II 2050x600x300 630A FL360B

Accessories
Technical properties
Environmental value
Documentations
More products

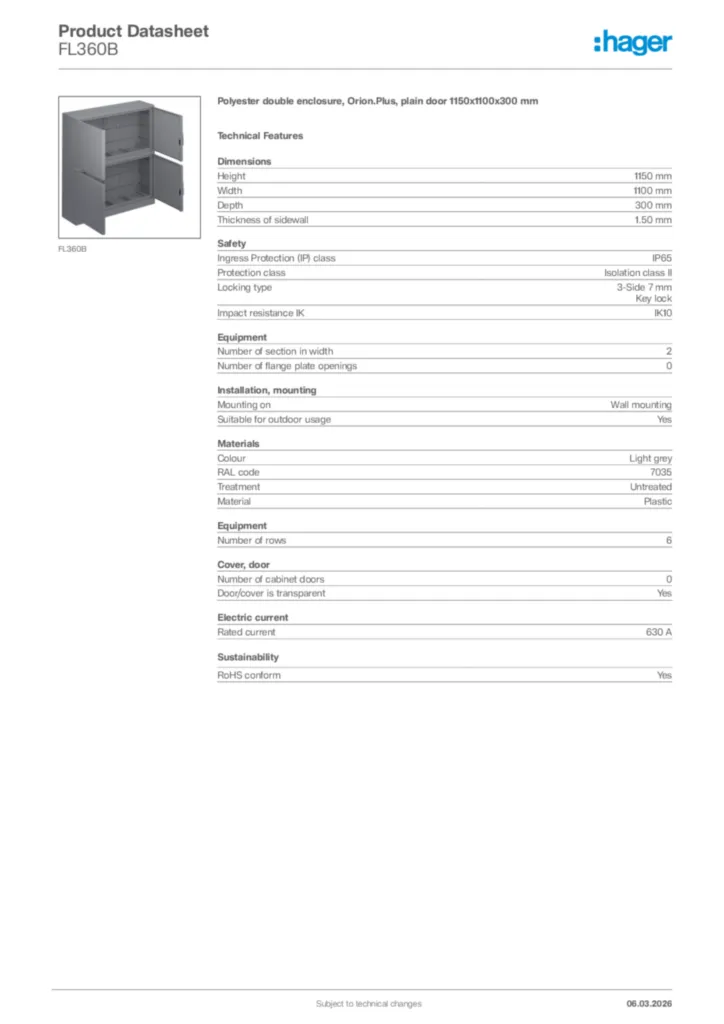

Download the data sheet

Complete your system

Mounting plate for distribution board 9 products available
Heater for enclosure 4 products available
Blanking plate for enclosure 5 products available
DIN rail 2 products available
Distributor assembly for serial built-in device 2 products available
Door/operating panel 4 products available

Technical properties

Height

1150 mm
Width

1100 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of section in width

2
Number of flange plate openings

0
Number of rows

6

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Plastic

Number of cabinet doors

0
Door/cover is transparent

Yes
Cabinet door type

Double door, symmetric

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
