    • FL172A
    EAN
    3250610674253
    Packaging
    1 Piece

    Steel enclosure, Orion.Plus, glazed door 800x500x250 mm FL172A

    Phase out product: please contact your electrical wholesaler for availability

    Follow-up products :

    FL124A, FL171A

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Steel enclosure, Orion.Plus, glazed door 800x500x250 mm

    FL172A

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (18)
    • Insert for lock system 1 products available
    • Blanking plate for enclosure 3 products available
    • Key for enclos­ures/cab­inets 2 products available
    • Distrib­utor assembly for serial built-in device 2 products available
    • Mounting plate for distri­bu­tion board 1 products available
    • Door/­op­er­ating panel 1 products available

    Complete your system

    • Insert for lock system
    • Blanking plate for enclosure
    • Key for enclos­ures/cab­inets
    • Distrib­utor assembly for serial built-in device
    • Mounting plate for distri­bu­tion board
    • Door/­op­er­ating panel
    • Cover strip
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • Mounting accessories
    • Lock system
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      €0.00  / *
    • FL713E

      Insulated front panel, Orion.Plus, 150x500 mm
      €0.00  / *
    • FL703E

      Insulated front panel, Orion.Plus, 50x500 mm
      €0.00  / *
    • FL241Z

      Ventilated louvers plate, Orion.Plus, 160x160 mm
      €0.00  / *
    • FZ850

      Key lock insert, Orion.Plus
      €0.00  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      €0.00  / *
    • FL995A

      MCB complete kit, Orion.Plus, 5x22M, H750 W500 mm, System C
      €0.00  / *
    • FL371A

      Kit MCCB x160, Orion.Plus, 300x400 mm
      €0.00  / *
    • FL414A

      Steel mounting plate, Orion.Plus, 780x443 mm
      €0.00  / *
    • FL555A

      Steel inner door, Orion.Plus steel, 800x600 mm
      €0.00  / *
    • VZ416

      Blanking strip, universal, 18M, RAL 7035
      €0.00  / *
    • FL874A

      Ground wire kit, Orion.Plus
      €0.00  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      €0.00  / *
    • FL670A

      Vertical connecting kit S/ORION+
      €0.00  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      €0.00  / *
    • UC969

      Clips nut and screws, quadro.system, M5
      €0.00  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      €0.00  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      €0.00  / *

    Technical properties

    Dimen­sions
    • Height
      800 mm
    • Width
      500 mm
    • Depth
      250 mm
    • Thick­ness of side­wall
      1.2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      2
    • Number of rows
      5
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      2
    • Door/­cover is trans­parent
      Yes
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current IN
      250 A
    Voltage
    • Nominal voltage
      400-400 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP_HAGE-00954-V02.01-EN
    PDF
    10,41 MB
    REACH declaration FL172A
    PDF
    RoHS report FL172A
    PDF

    Downloads

    • Image FL172A | Hager Africa

      Product Image FL172A

    • Product datasheet

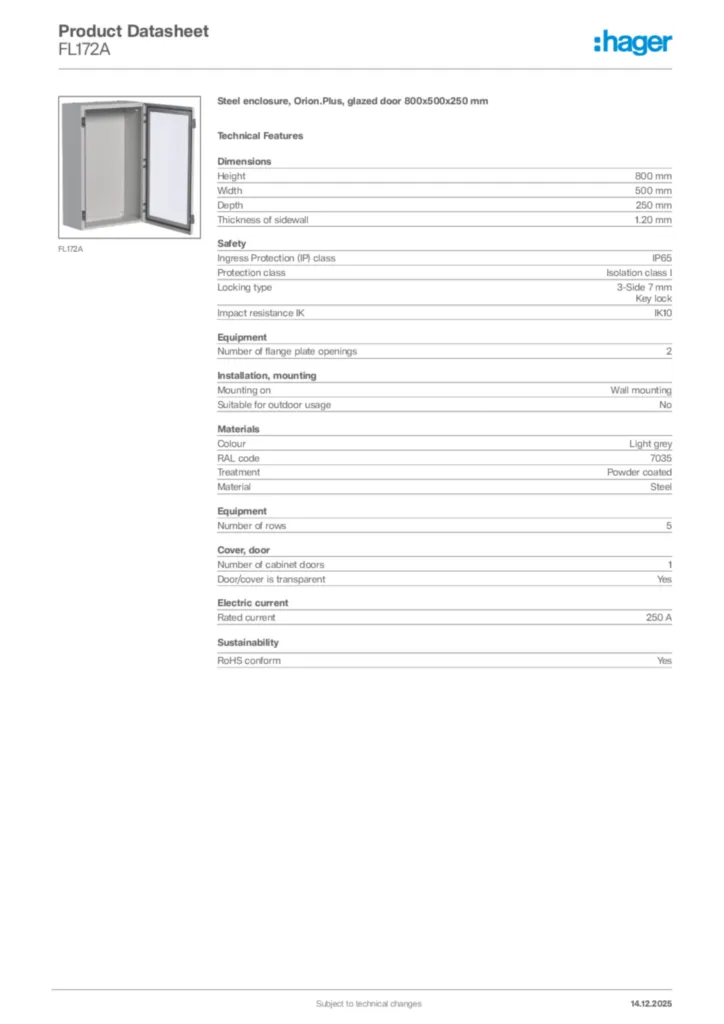

      Image Hager Product data sheet FL172A | Hager Africa

      Hager Product data sheet FL172A

      Steel enclosure, Orion.Plus, glazed door 800x500x250 mm

      PDF
