Steel enclosure, Orion.Plus, glazed door 250x200x160 mm FL151A

EAN
3250610674154
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Steel enclosure, Orion.Plus, glazed door 250x200x160 mm

FL151A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (35)
    • Door/­op­er­ating panel 1 products available
    • Vent­il­ator for enclosure 4 products available
    • Cover strip 2 products available
    • Mounting plate for distri­bu­tion board 1 products available
    • Heater for enclosure 6 products available
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available

    Complete your system

    • Door/­op­er­ating panel
    • Vent­il­ator for enclosure
    • Cover strip
    • Mounting plate for distri­bu­tion board
    • Heater for enclosure
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
    • Lock system
    • Key for enclos­ures/cab­inets
    • Blanking plate for enclosure
    • Insert for lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • Accessor­ies/s­pare parts for earthing and light­ning
    • FL541A

      Steel counterdoor, Orion.Plus sheet metal, H250 W200 mm
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • VZ416

      Blanking strip, universal, 18M, RAL 7035
      0.00 €  / *
    • FL401A

      Steel mounting plate, Orion.Plus, 230x143 mm
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL252Z

      Heaters, quadro.system, 15 W 230 V AC/DC
      0.00 €  / *
    • FL253Z

      Heaters, quadro.system, 30 W 230 V AC/DC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL258Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL82Z

      Pair square key inserts, Orion.Plus, 6 mm
      0.00 €  / *
    • FZ850

      Key lock insert, Orion.Plus
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL240Z

      Ventilated louvers plate, Orion.Plus, 120x120 mm
      0.00 €  / *
    • FL241Z

      Ventilated louvers plate, Orion.Plus, 160x160 mm
      0.00 €  / *
    • FL242Z

      Ventilated louvers plate, Orion.Plus, 220x220 mm
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL77Z

      Insert lock for rotary handle, Orion.Plus, 6x6 mm
      0.00 €  / *
    • FL670A

      Vertical connecting kit S/ORION+
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      250 mm
    • Width
      200 mm
    • Depth
      160 mm
    • Thick­ness of side­wall
      1.2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of flange plate open­ings
      2
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL151A
    PDF
    Hager RoHS report FL151A
    PDF

    Downloads

    • Image FL151A | Hager Africa

      Product Image FL151A

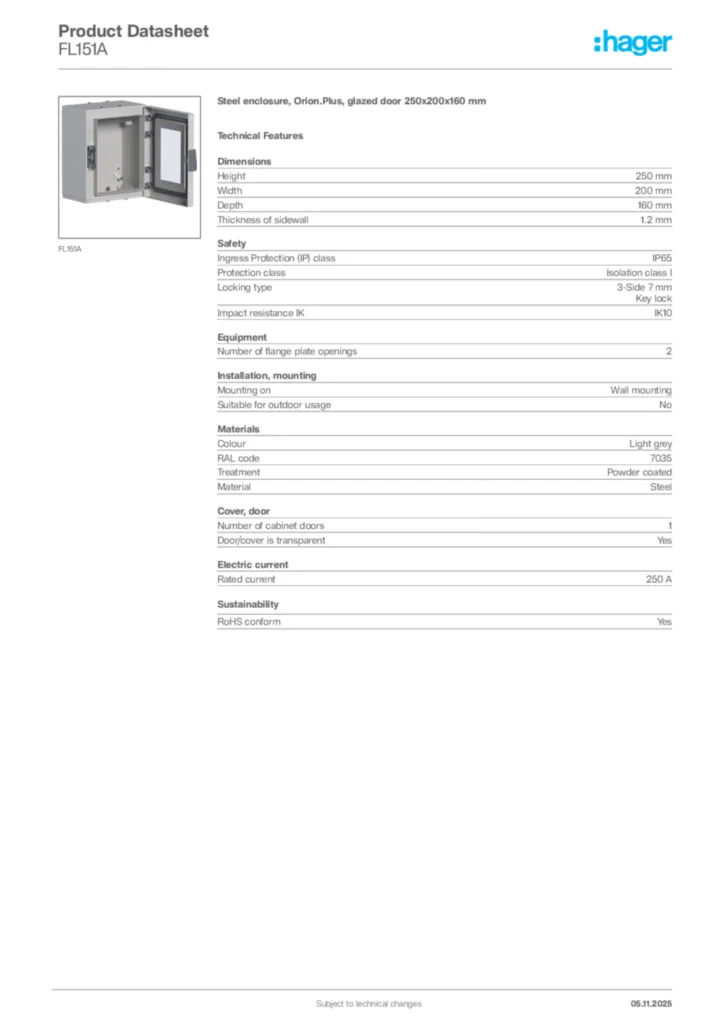

    • Product datasheet

      Image undefined | Hager Africa

      undefined

      PDF
