The Hager Quadro4 plain door H1800 x W620 x D56 mm provides secure, clean closure for distribution boards. Varnished steel in RAL 9010 pure white, non-transparent, with a quarter-turn lock and 1 key. IP43 and Class I for dust/splash protection and safety. Suits 2-section width frames, ideal for indoor panels requiring robust, aesthetic, lockable access.
EAN
3250612533398
Packaging
1 Piece
Glazed door Quadro4 H450xW620 IP43 Pure white quarter-turn lock FC339
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 5 products available -
Document holder 1 products available
Compatible products
-
Referenced by 1 products available
Complete your system
-
FZ597Door lock N° 1242E, for Univers IP43, FW2, Q4/5, with 2 keys
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449N
Lock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ453Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5
-
FZ452Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5
Technical properties
Dimensions
-
Height1800 mm
-
Width620 mm
-
Depth56 mm
Cover, door
-
Door/cover is transparentNo
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks1
Materials
-
RAL code9010
-
ColourPure white
-
Product colourPure white
-
MaterialSteel
-
TreatmentVarnished
Safety
-
Protection classIsolation class I
-
Ingress Protection (IP) classIP43
-
Locking typeQuarter turn lock
Equipment
-
Number of section in width2
-
Number of keys1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

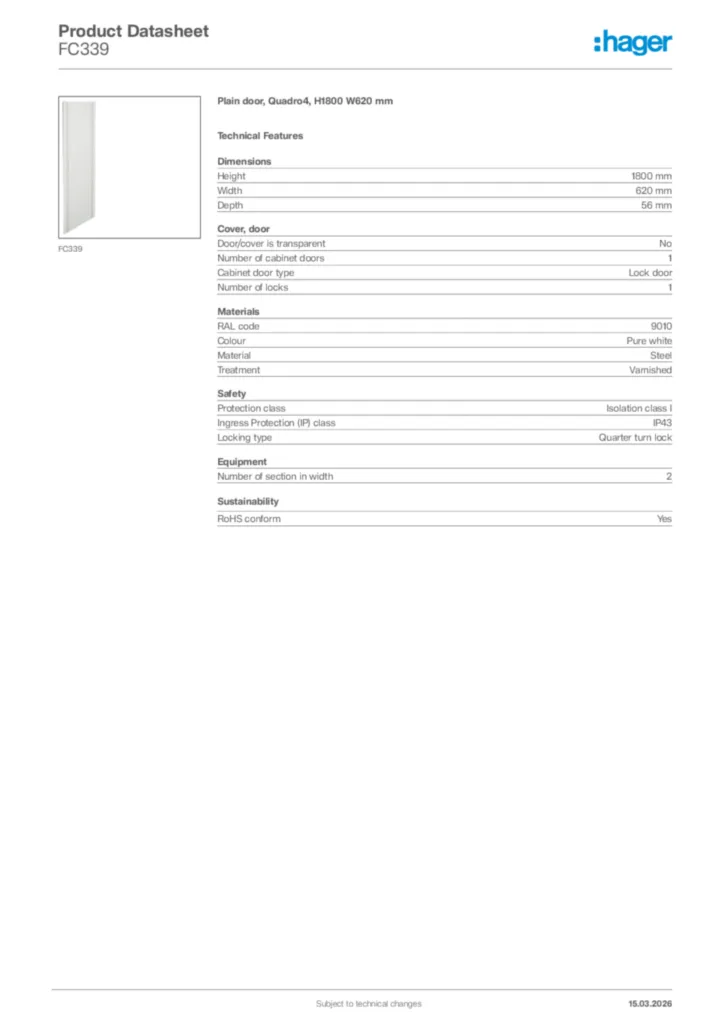

Hager Product data sheet FC339
Plain door, Quadro4, H1800 W620 mm
PDF -
Instruction manual
Instruction manual fr-FR, en-GB, de-DE, el-GR 2023-11-09
PDF2,03 MB
Instruction manual fr-FR, es-ES, pt-PT, el-GR 2023-11-09
PDF4,37 MB
Instruction manual fr-FR, es-ES, pt-PT, el-GR 2023-11-09
PDF6,24 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-10
PDF707,52 kB
