Plain door, Quadro4, H1350 W620 mm FC336
EAN
3250612533367
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 5 products available -
Document holder 1 products available
Compatible products
-
Referenced by 1 products available
Complete your system
-
FZ597
Locking, univers, with 2keys, for IP43
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449NLock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ453Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5
-
FZ452Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5
Technical properties
Dimensions
-
Height1350 mm
-
Width620 mm
-
Depth56 mm
Cover, door
-
Door/cover is transparentNo
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks1
Materials
-
RAL code9010
-
ColourPure white
-
MaterialSteel
-
TreatmentVarnished
Safety
-
Protection classIsolation class I
-
Ingress Protection (IP) classIP43
-
Locking typeQuarter turn lock
Equipment
-
Number of section in width2
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

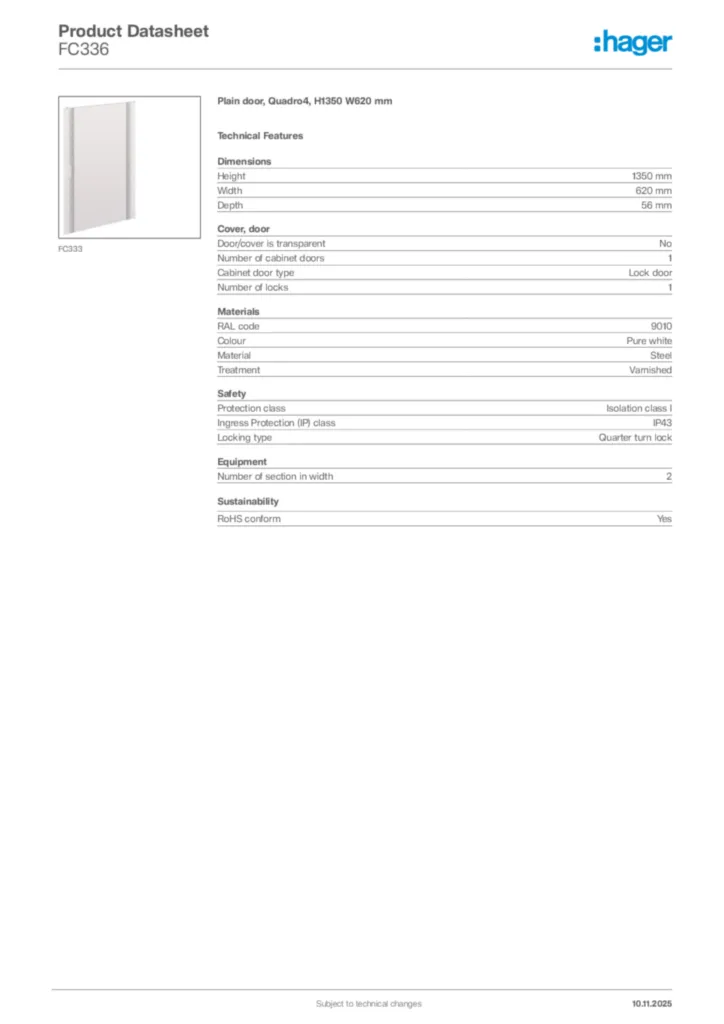

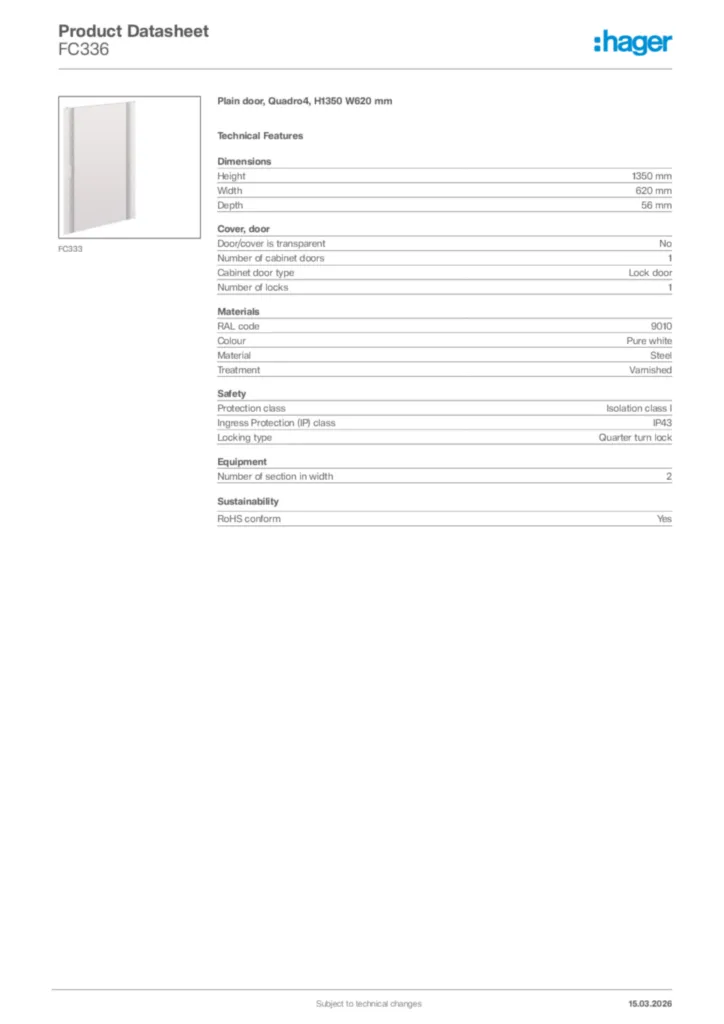

Product datasheet
undefined
PDF -
Instruction manual
Instruction manual fr-FR, en-GB, de-DE, el-GR 2023-11-09
PDF2,03 MB
Instruction manual fr-FR, es-ES, pt-PT, el-GR 2023-11-09
PDF4,37 MB
Instruction manual fr-FR, es-ES, pt-PT, el-GR 2023-11-09
PDF6,24 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-10
PDF707,52 kB
More documentation
