Night & Day Contactor 25A, 4NO, 230V~50/60Hz ETC425
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 1 products available
Technical properties
Connection
-
Type of contacts4NO
-
Number of contacts4
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current25 A
Capacity
-
Number of modules2
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui440 V
-
Rated operational voltage Ue400 - 400 V
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Power
-
Total power loss under IN7 W
-
Inrush power absorbed9.20 VA
Dimensions
-
Height83 mm
-
Width35.75 mm
-
Depth64 mm
Equipment
-
Number of NO contacts4
-
Number of NC contacts0
-
With switch for manual switchYes
Installation, mounting
-
Nominal tightening torque1.20 - 1.20 Nm
Architecture
-
Number of poles4
Downloads
-

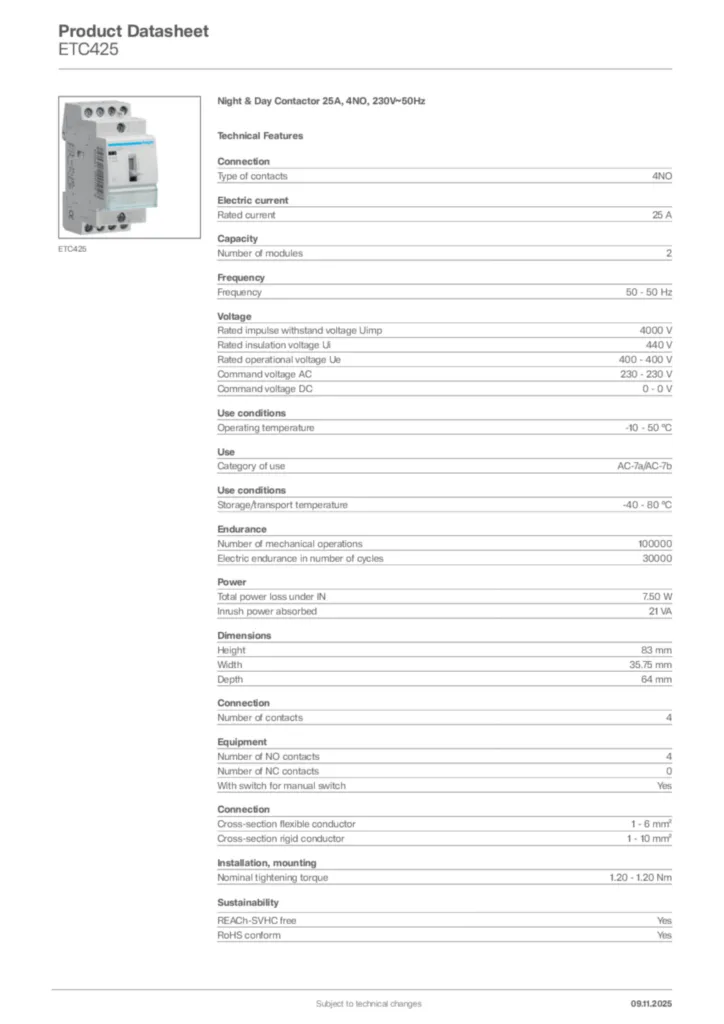

Product datasheet
Hager Product data sheet ETC425
Night & Day Contactor 25A, 4NO, 230V~50/60Hz
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-23
PDF385,80 kB
