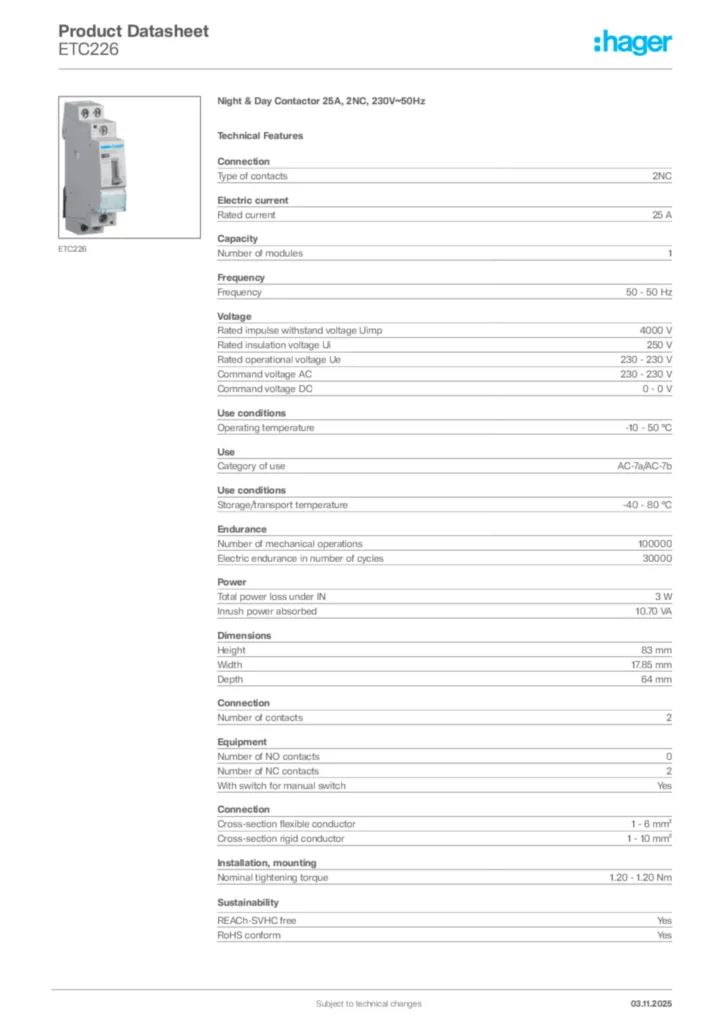

Night & Day Contactor 25A, 2NC, 230V~50Hz ETC226
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 1 products available -
Terminal cover 1 products available
Technical properties
Connection
-
Type of contacts2NC
-
Number of contacts2
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current25 A
Capacity
-
Number of modules1
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui250 V
-
Rated operational voltage Ue230 - 230 V
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Power
-
Total power loss under IN3 W
-
Inrush power absorbed10.70 VA
Dimensions
-
Height83 mm
-
Width17.85 mm
-
Depth64 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts2
-
With switch for manual switchYes
Installation, mounting
-
Nominal tightening torque1.20 - 1.20 Nm
