EAN

3250612400768

Packaging

1 Piece

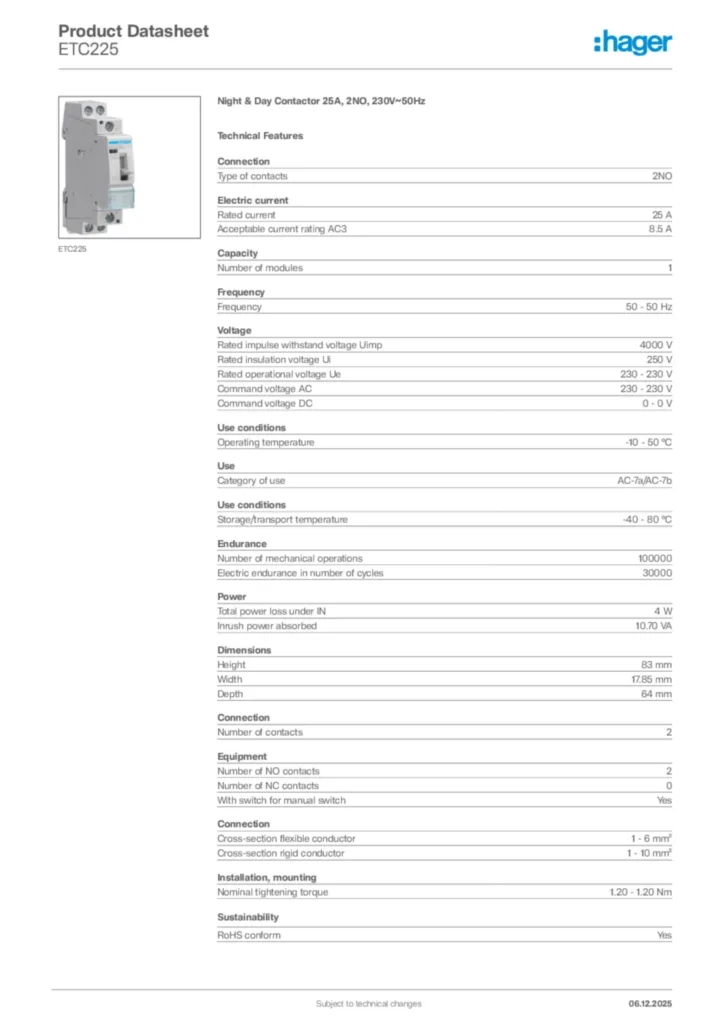

Night & Day Contactor 25A, 2NO, 230V~50/60Hz ETC225

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Documentations

Complete your system

Auxiliary device for distribution board devices 1 products available
Terminal cover 1 products available

Technical properties

Type of contacts

2NO
Number of contacts

2
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1 - 10 mm²

Rated current

25 A
Acceptable current rating AC3

8.5 A

Number of modules

1

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

250 V
Rated operational voltage Ue

230 - 230 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Total power loss under IN

3.60 W
Inrush power absorbed

7.40 VA

Height

83 mm
Width

17.85 mm
Depth

64 mm

Number of NO contacts

2
Number of NC contacts

0
With switch for manual switch

Yes

Nominal tightening torque

1.20 - 1.20 Nm

Number of poles

2
