Humfree Contactor 25A, 3NC, 12VDC ESL326SDC
EAN
3250612230679
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Connection
-
Type of contacts3NC
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current25 A
Capacity
-
Number of modules2
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui440 V
-
Rated operational voltage Ue400 - 400 V
-
Command voltage AC0 - 0 V
-
Command voltage DC12 - 12 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Texts
-
Safety hintHumfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.
Power
-
Total power loss under IN4.30 W
-
Inrush power absorbed2.80 VA
Dimensions
-
Height83 mm
-
Width35.75 mm
-
Depth60 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts3
-
With switch for manual switchNo
Installation, mounting
-
Nominal tightening torque1.20 - 1.20 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

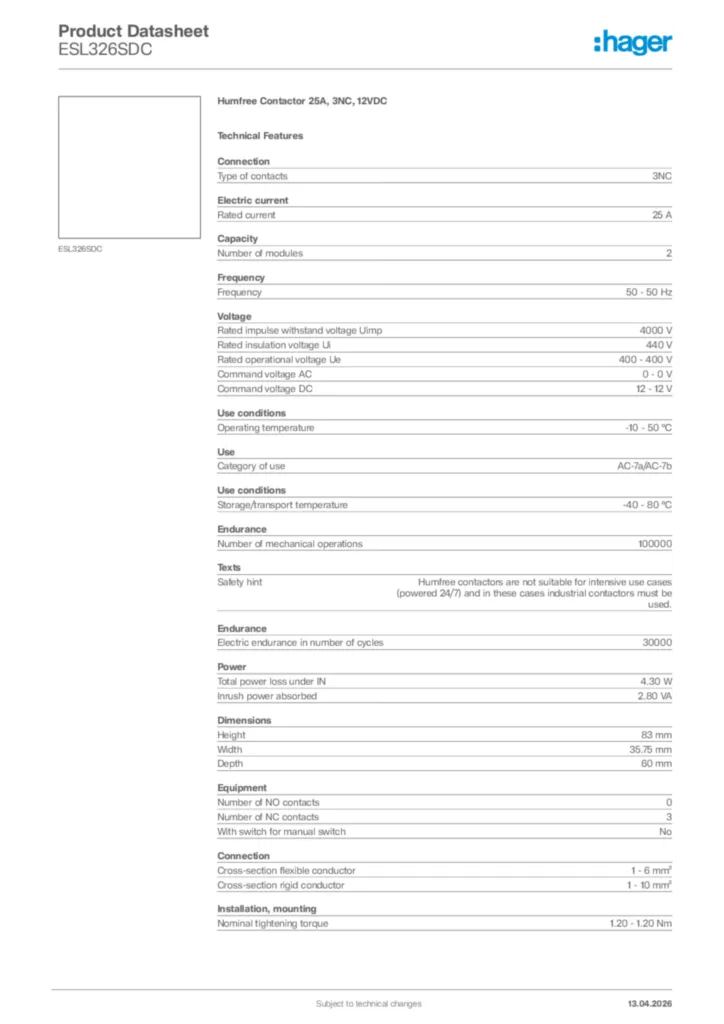

Product datasheet
