The Hager 40A Contactor 3NO 230V 50Hz ensures reliable control of lighting, heating, and small motors. Rated 40A (AC-7a/AC-7b), 25A AC-3, for 400V circuits with 4kV impulse withstand and 440V insulation. Three-pole, 3-module design saves panel space. 230V AC coil. Durable: 100k mechanical/30k electrical ops. Wide wiring 1.5-16/25 mm². Operates -10 to 50°C with low 11.1 W loss.

EAN

3250612401253

Packaging

Installation relays, contactors, load shedding and accessories

Contactor 25A 4NO 230V AC 50Hz AC-7a/7b 2 Modules ESC340

Accessories
Technical properties
Environmental value
Documentations
More products

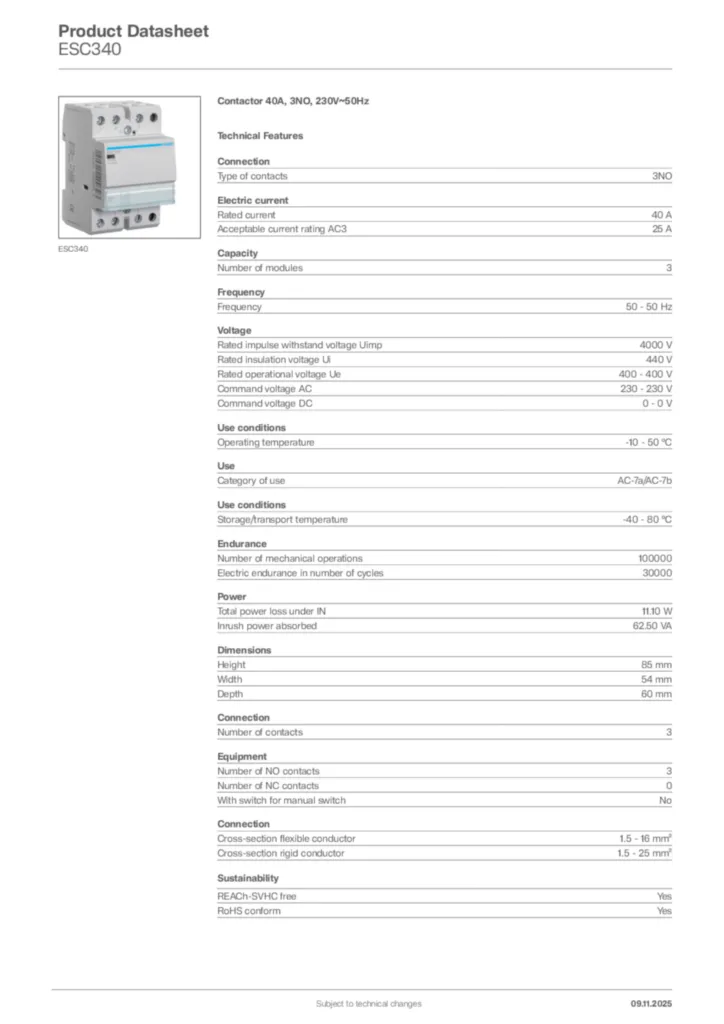

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 1 products available

Technical properties

Type of contacts

3NO
Number of contacts

3
Cross-section flexible conductor

1.5 - 16 mm²
Cross-section rigid conductor

1.5 - 25 mm²

Rated current

40 A
Acceptable current rating AC3

25 A

Number of modules

3

Frequency

50 - 50 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

440 V
Rated operational voltage Ue

400 - 400 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Total power loss under IN

11.10 W
Inrush power absorbed

62.50 VA

Height

85 mm
Width

54 mm
Depth

60 mm

Number of NO contacts

3
Number of NC contacts

0
With switch for manual switch

No

Number of poles

3

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
