The Hager Contactor 40A 2NO 230V~ 50Hz delivers reliable control of lighting, heating and motor loads. Rated 40A (AC-7a/AC-7b), 25A AC-3, with 2 NO poles and 400 V operational voltage. 230 V AC coil. High endurance (100k mechanical/30k electrical), Uimp 4 kV, Ui 440 V. 3 modules (54 mm) wide, accepts 1.5-25 mm² conductors. Operating -10 to +50°C. Ideal for residential/light commercial panels.

EAN

3250612401055

Packaging

Installation relays, contactors, load shedding and accessories

Contactor 40A 3NO 230V~ 50Hz coil 3 modules AC-7a/AC-7b ESC240

Accessories
Technical properties
Environmental value
Documentations
More products

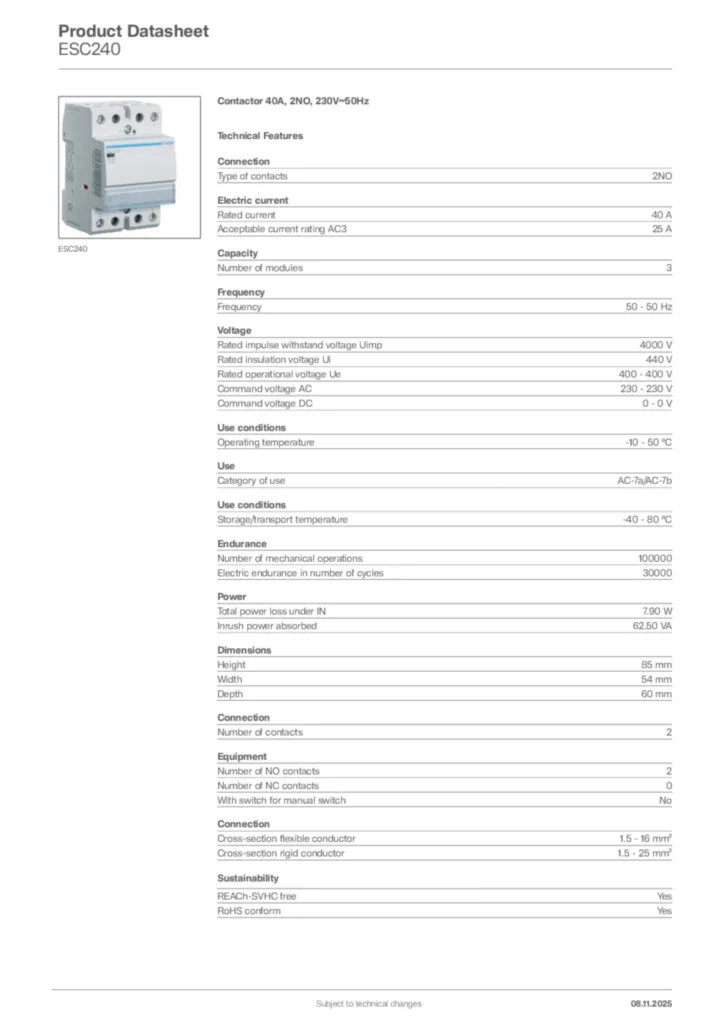

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 1 products available

Technical properties

Type of contacts

2NO
Number of contacts

2
Cross-section flexible conductor

1.5 - 16 mm²
Cross-section rigid conductor

1.5 - 25 mm²

Rated current

40 A
Acceptable current rating AC3

25 A

Number of modules

3

Frequency

50 - 50 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

440 V
Rated operational voltage Ue

400 - 400 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Total power loss under IN

7.90 W
Inrush power absorbed

62.50 VA

Height

85 mm
Width

54 mm
Depth

60 mm

Number of NO contacts

2
Number of NC contacts

0
With switch for manual switch

No

Number of poles

2

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
