The Hager 25A contactor with 2 NC contacts and 230V~ 50Hz coil ensures dependable control of lighting, heating, and small motor loads. AC-7a/AC-7b rated, with low 3W losses, it suits residential and light commercial panels. Compact 1-module (17.85 mm) design saves space. Ui 250V and Uimp 4kV boost insulation and surge resilience. Durable with 100k mechanical/30k electrical ops. Accepts 1-6 mm² flex, 1-10 mm² rigid; torque 1.2 Nm; -10 to 50°C.

EAN

3250612400713

Packaging

Installation relays, contactors, load shedding and accessories

Contactor 40A 2NO 230V AC 50Hz coil 2P 400V AC-7a/7b, 3 modules ESC226

Accessories
Technical properties
Environmental value
Documentations
More products

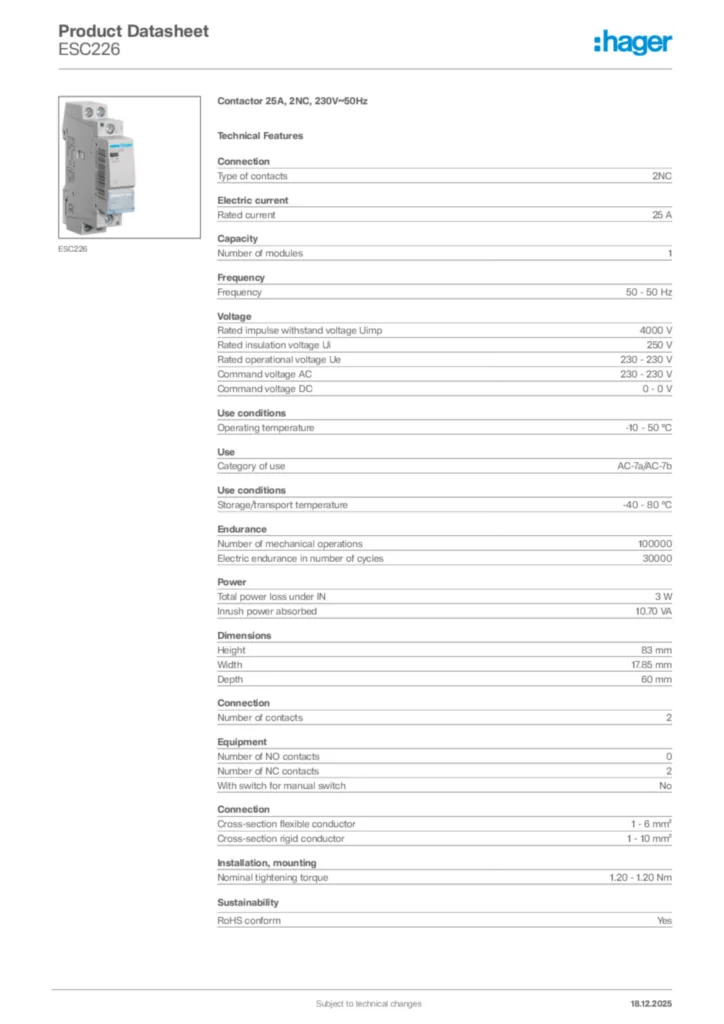

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 1 products available

Technical properties

Type of contacts

2NC
Number of contacts

2
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1 - 10 mm²

Rated current

25 A

Number of modules

1

Frequency

50 - 50 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

250 V
Rated operational voltage Ue

230 - 230 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Total power loss under IN

3 W
Inrush power absorbed

10.70 VA

Height

83 mm
Width

17.85 mm
Depth

60 mm

Number of NO contacts

0
Number of NC contacts

2
With switch for manual switch

No

Nominal tightening torque

1.20 - 1.20 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
