The Hager Humfree Contactor 25A 2NO 230V~ 50/60Hz offers quiet switching for residential/light commercial control of lighting and heating. Two NO contacts rated 25A (AC-7a/7b), 230V AC coil, compact 1-module (17.85 mm). Durable: 100k mechanical/30k electrical ops. Uimp 4 kV, Ui 250 V. Accepts 1-6 mm² flexible and 1-10 mm² rigid conductors. Note: not for 24/7 intensive duty—use industrial contactors.

EAN

3250612400034

Packaging

1 Piece

Installation relays, contactors, load shedding and accessories

Modular contactor 25A 4NO 230V AC coil 50Hz manual override 2 modules ESC225S

Technical properties
Environmental value
Documentations
More products

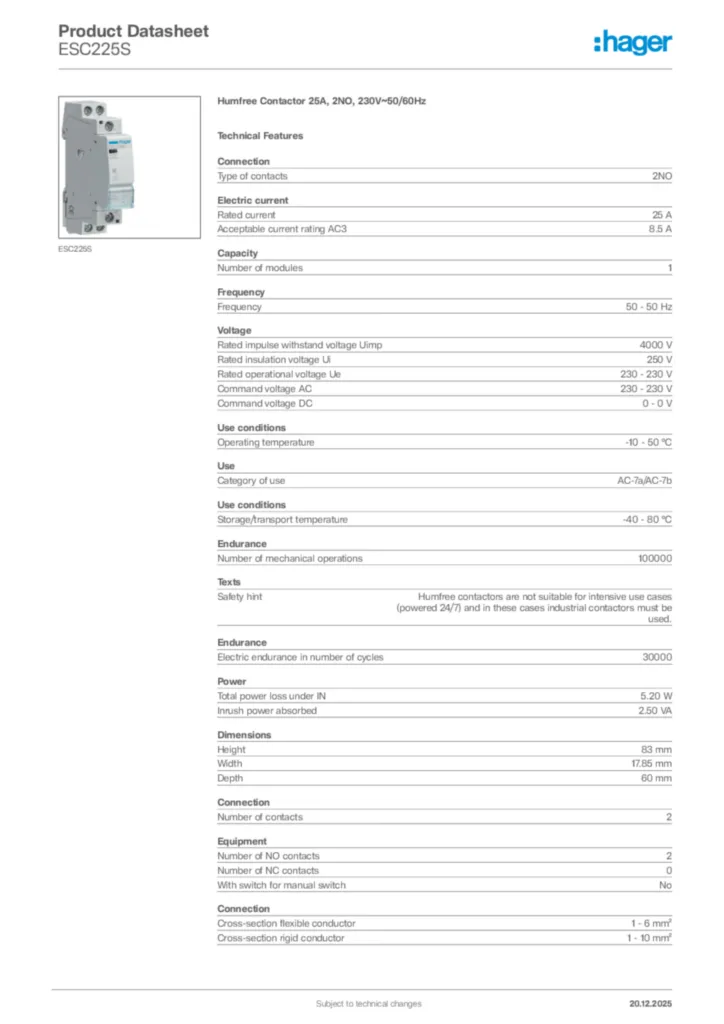

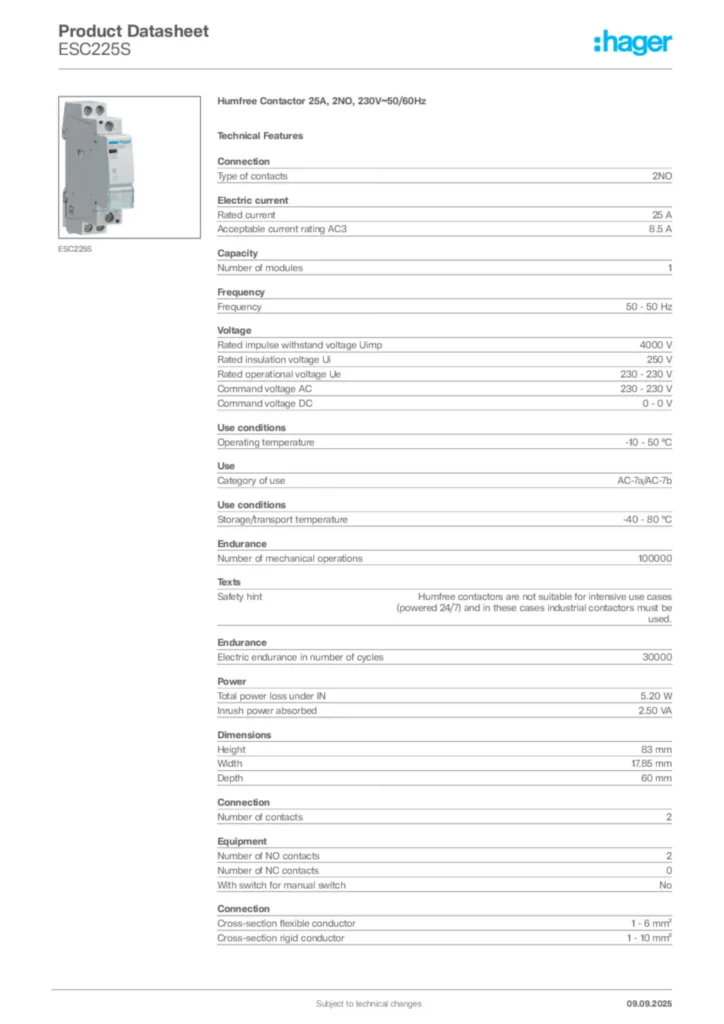

Download the data sheet

Technical properties

Type of contacts

2NO
Number of contacts

2
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1 - 10 mm²

Rated current IN

25 A
Acceptable current rating AC3

8.5 A

Number of modules

1

Frequency

50 - 50 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

250 V
Rated operational voltage Ue

230 - 230 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Safety hint

Humfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.

Power dissipation at IN

5.20 W
Inrush power absorbed

2.50 VA

Height

83 mm
Width

17.85 mm
Depth

60 mm

Number of NO contacts

2
Number of NC contacts

0
With switch for manual switch

No

Nominal tightening torque

1.20 - 1.20 Nm

Hum-free

Yes

Number of poles

2

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
