The Hager 25A contactor with 1 NC contact and 230V AC 50/60Hz coil ensures reliable remote switching for residential and light commercial loads (AC-7a/AC-7b) like lighting and small motors. Its compact 1-module (17.85 mm) design saves panel space. Rated Ui 250 V, Uimp 4 kV. Durable: 100,000 mechanical and 30,000 electrical operations. Low losses (1.5 W). Operates −10 to 50°C. Accepts 1-6 mm² flexible and 1-10 mm² rigid conductors.

EAN

3250612400577

Packaging

1 Piece

Surface-mount enclosure IP44 Class II 36M 3-row 125A clear door 500x300x161 ESC126

Name: ESC126
Brand: Hager
SKU: ESC1266

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

ESC226

Accessories
Technical properties
Environmental value
Documentations

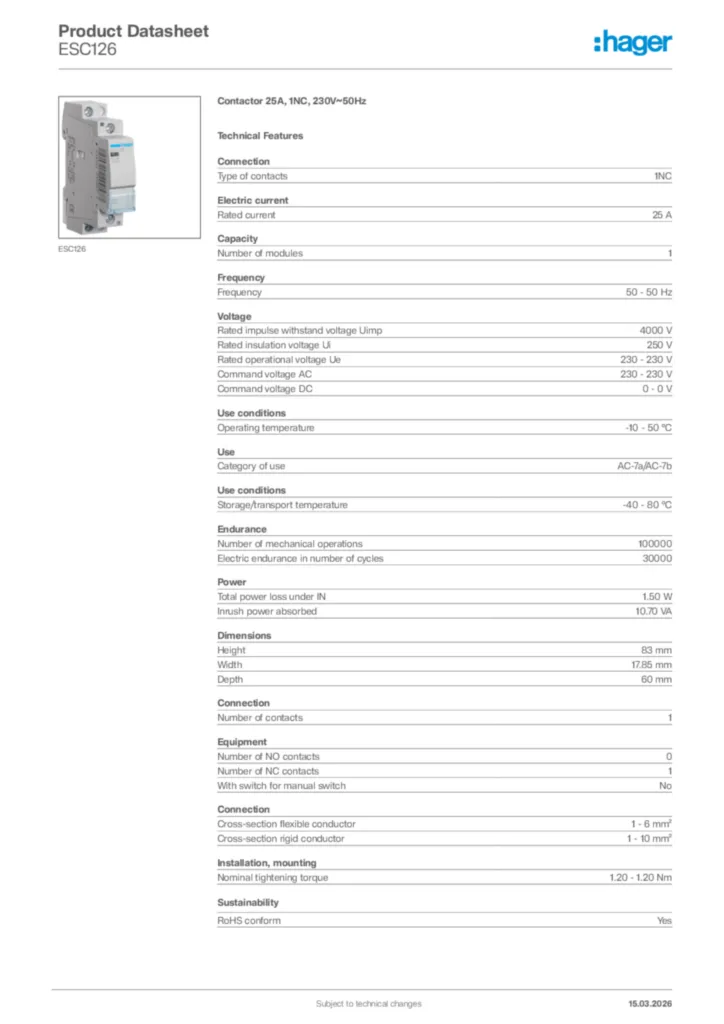

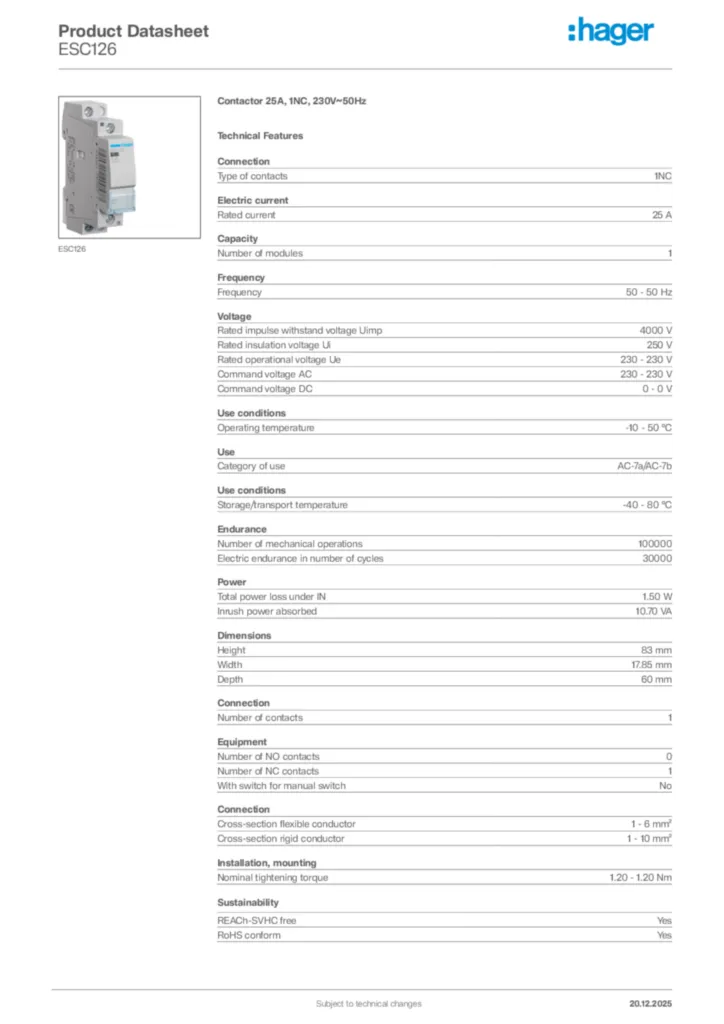

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 1 products available

Technical properties

Type of contacts

1NC
Number of contacts

1
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1 - 10 mm²

Rated current

25 A

Number of modules

1

Frequency

50 - 50 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

250 V
Rated operational voltage Ue

230 - 230 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Total power loss under IN

1.50 W
Inrush power absorbed

10.70 VA

Height

83 mm
Width

17.85 mm
Depth

60 mm

Number of NO contacts

0
Number of NC contacts

1
With switch for manual switch

No

Nominal tightening torque

1.20 - 1.20 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
