The Hager Humfree Override Contactor 25A 2NO 24VDC offers silent, reliable switching for residential and light commercial loads. Rated 25A, AC-7a/AC-7b at 230V, with 4kV impulse withstand and 250V insulation. Compact 1-module design with manual override. Endurance: 100k mechanical/30k electrical ops. Wiring 1-6 mm² flex, 1-10 mm² rigid. Operating −10 to 50°C. Not for 24/7 intensive duty—use industrial contactors.
EAN
3250612230778
VPE
1 piece
Ground wire kit Orion.Plus enclosure earthing and bonding ERD225SDC
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text

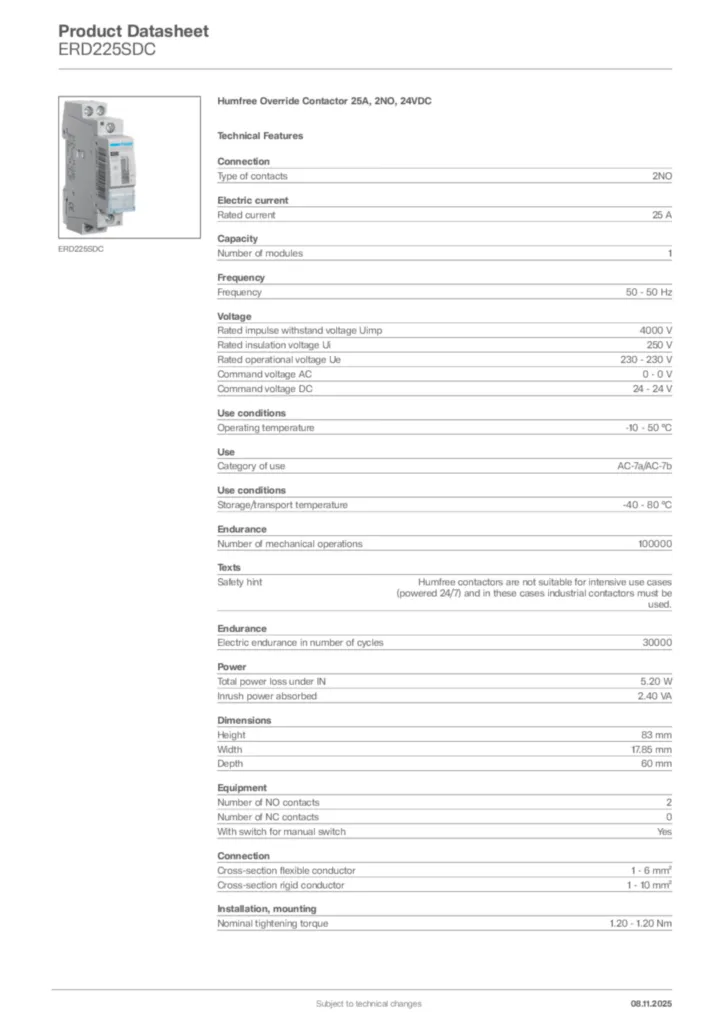

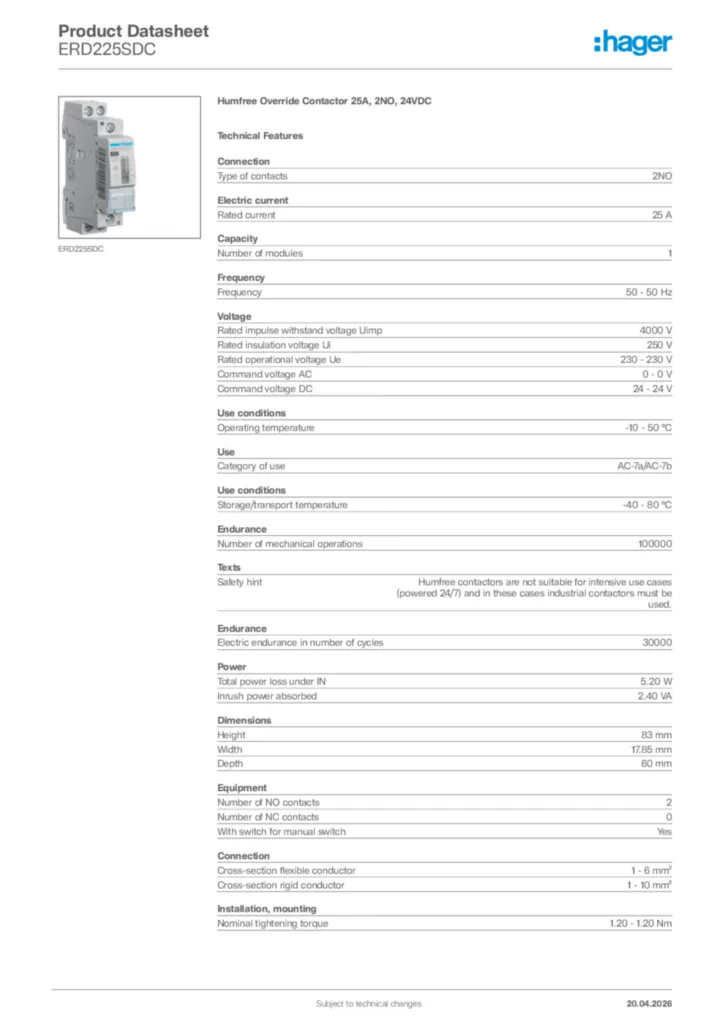

Technical characteristics
Connection
-
Type of contacts2NO
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current IN25 A
Capacity
-
Number of modules1
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui250 V
-
Rated operational voltage Ue230 - 230 V
-
Command voltage AC0 - 0 V
-
Command voltage DC24 - 24 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Texts
-
Safety hintHumfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.
Power
-
Power dissipation at IN5.20 W
-
Inrush power absorbed2.40 VA
Dimensions
-
Height83 mm
-
Width17.85 mm
-
Depth60 mm
Equipment
-
Number of NO contacts2
-
Number of NC contacts0
-
With switch for manual switchYes
Installation, mounting
-
Nominal tightening torque1.20 - 1.20 Nm
