The Hager Override Contactor 25A 2NO 24V~ 50Hz provides reliable switching for lighting, HVAC and resistive/inductive loads (AC-7a/AC-7b) in residential and commercial panels. Compact 1-module (17.85 mm) design with manual override. Rated Ue 230 V, Ui 250 V, Uimp 4 kV. Coil 24 V AC, low loss 4 W. Durable 100k mechanical/30k electrical ops. Wiring 1-6 mm² flex, 1-10 mm² rigid. Operating -10 to +50°C.
EAN
3250612400591
VPE
12 pieces
Contactor 25A 1NO 230V~50Hz coil AC-7a/7b 1 Module ERD225
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Auxiliary device for distribution board devices 1 product.page.accessories.products-available

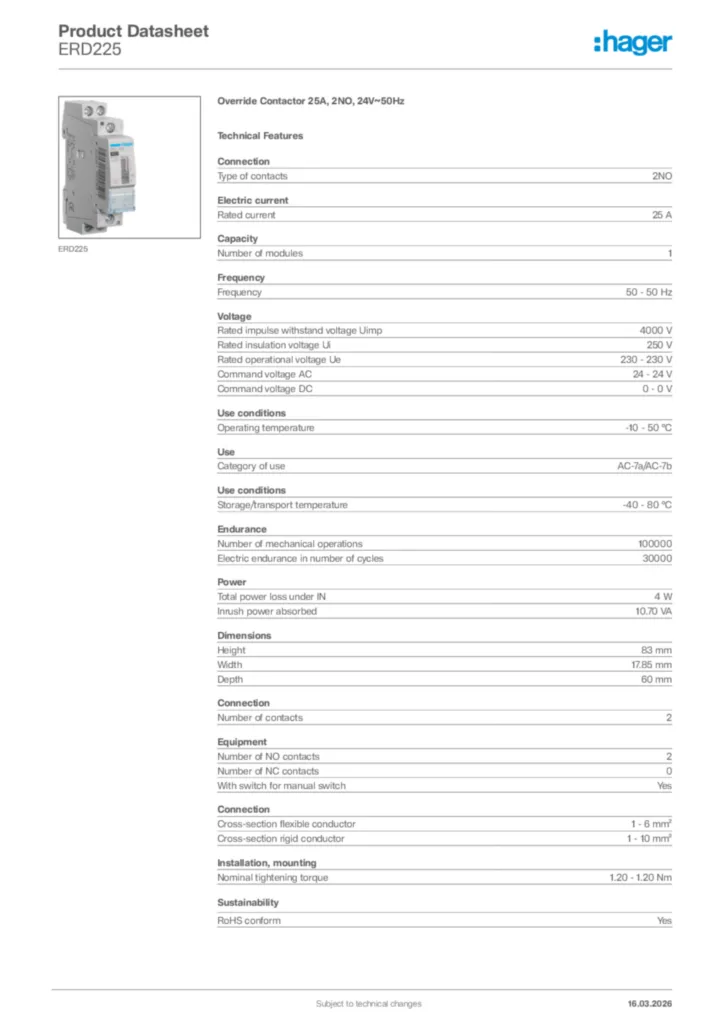

Technical characteristics
Connection
-
Type of contacts2NO
-
Number of contacts2
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current IN25 A
Capacity
-
Number of modules1
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui250 V
-
Rated operational voltage Ue230 - 230 V
-
Command voltage AC24 - 24 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Power
-
Power dissipation at IN4 W
-
Inrush power absorbed10.70 VA
Dimensions
-
Height83 mm
-
Width17.85 mm
-
Depth60 mm
Equipment
-
Number of NO contacts2
-
Number of NC contacts0
-
With switch for manual switchYes
Installation, mounting
-
Nominal tightening torque1.20 - 1.20 Nm
