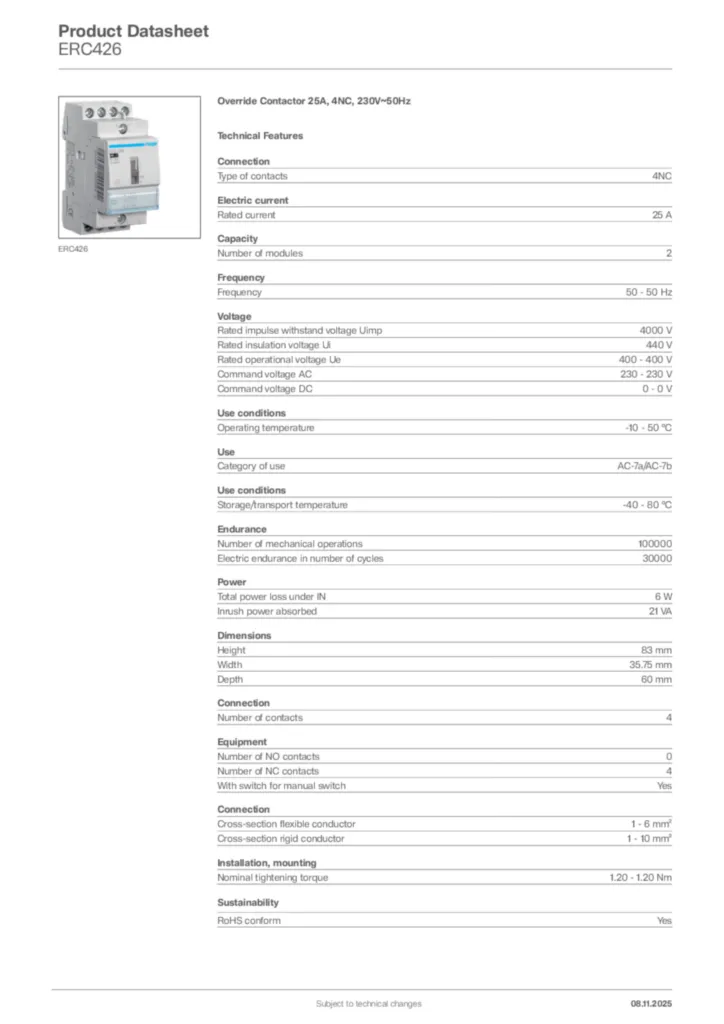

Hager Override Contactor 25A, 4NC, 230V 50Hz for control and isolation of residential/light commercial loads. Four NC poles, AC-7a/AC-7b, Ue 400V, Ui 440V, Uimp 4kV for reliable switching. 230V AC coil with manual override. Compact 2-module (83x35.75x60 mm). Rated 25A, 100k mechanical/30k electrical cycles. Accepts 1-6 mm² flex and 1-10 mm² rigid. Operating -10 to 50°C.

EAN

3250612400942

VPE

1 piece

Installation relays, contactors, load shedding and accessories

Override Contactor 25A 2NO+2NC 230V AC 50Hz with manual switch 2 Modules ERC426

Accessories
Technical characteristics
catalog.pageproduct.title_sustainability.h2
Documentations
More products

product.page.accessories.title

Auxiliary device for distribution board devices 1 product.page.accessories.products-available

Technical characteristics

Type of contacts

4NC
Number of contacts

4
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1 - 10 mm²

Rated current IN

25 A

Number of modules

2

Frequency

50 - 50 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

440 V
Rated operational voltage Ue

400 - 400 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Power dissipation at IN

6 W
Inrush power absorbed

21 VA

Height

83 mm
Width

35.75 mm
Depth

60 mm

Number of NO contacts

0
Number of NC contacts

4
With switch for manual switch

Yes

Nominal tightening torque

1.20 - 1.20 Nm

Number of poles

4
