    Multifunction stair case time lag switch EMN005

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Multifunction stair case time lag switch

    EMN005

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Frequency
    • Frequency
      50 - 60 Hz
    Elec­tric current
    • Rated current
      16 A
    Capa­city
    • Number of modules
      1
    Connectivity
    • Type of connec­tion
      Screw terminal, Wire connec­tion
    Install­a­tion, mounting
    • Mounting on
      DIN rail
    Lighting
    • Max. load fluor­es­cent lamp parallel compensated
      1000 VA
    • Max. load fluor­es­cent lamp
      3600 VA
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 55 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1 - 6 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 10 mm²
    Settings
    • Time delay
      30 S - 10 Min
    Dimen­sions
    • Width
      17.50 mm
    • Depth
      64 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration EMN005
    PDF

    Downloads

    • Image EMN005 | Hager Africa

      Product Image EMN005

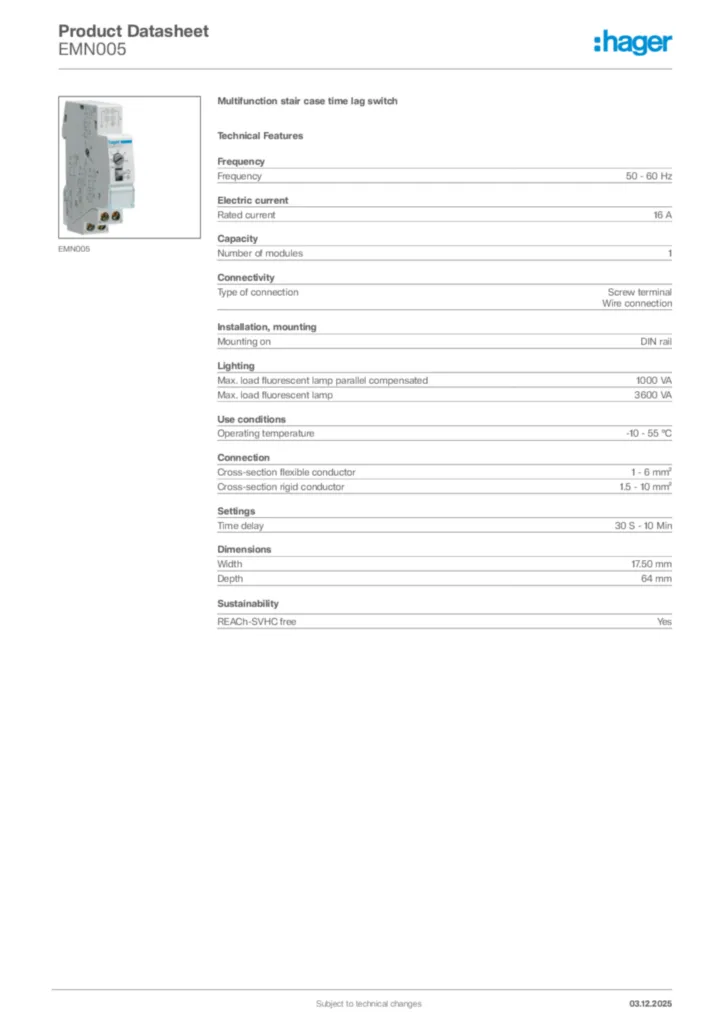

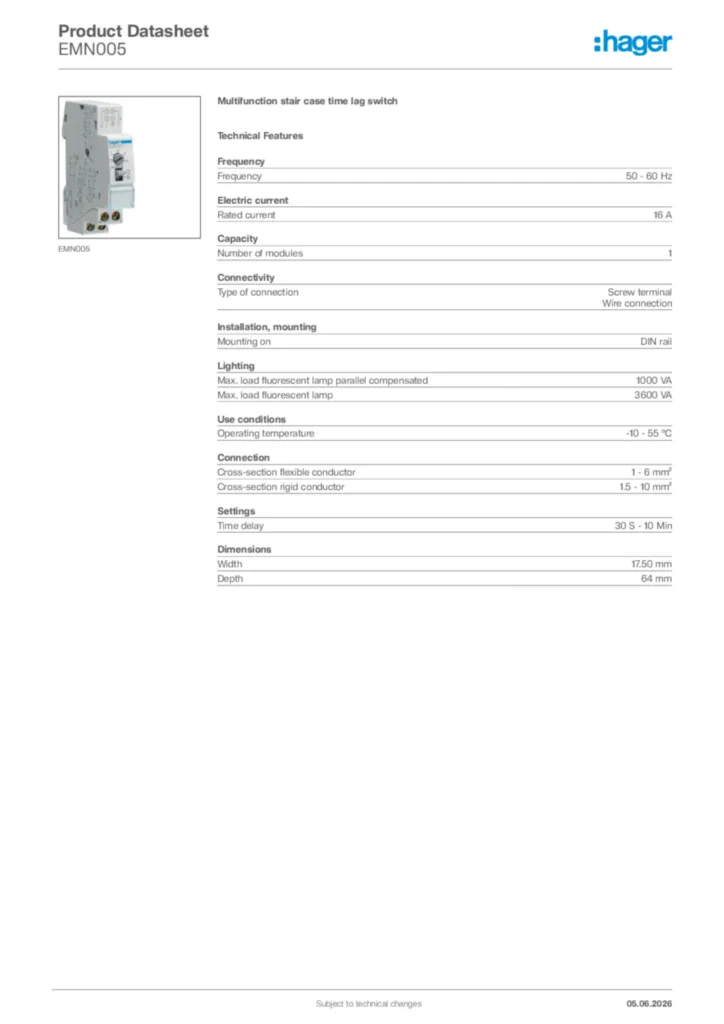

    • Product datasheet

      Image Hager Product data sheet EMN005 | Hager Africa

      Hager Product data sheet EMN005

      Multifunction stair case time lag switch

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2021-11-17

      PDF
      127,02 kB
