Multi-function time switch 4 channels bluetooth EGN400
Phase out product: please contact your electrical wholesaler for availability
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Brightness sensor 2 product.page.accessories.products-available -
Touch sensor for bus system 1 product.page.accessories.products-available
Technical characteristics
Voltage
-
Nominal voltage230 - 230 V
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp2300 W
Lighting
-
Max. load fluorescent lamp in series1000 W
-
Max. load fluorescent lamp parallel compensated400 VA
Functions
-
Power reserve in years10 y
-
With network synchronisationYes
-
With quartz synchronisationYes
-
Number of function channels4
Equipment
-
Accuracy per day0.25 s
-
With impulse programmeYes
-
Number of channels4
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor0.2 - 2.5 mm²
-
Cross-section rigid conductor0.2 - 4 mm²
Settings
-
Daily programmeYes
-
Weekly programmeYes
-
Annual programmeYes
Use conditions
-
Operating temperature-5 - +45 °C
Texts
-
Type of connectionWith screw terminal
Dimensions
-
Height90 mm
-
Width72 mm
-
Depth61.60 mm
Capacity
-
Number of modules4
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Materials
-
RAL code7035
Use
-
Type of cycleYearly
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

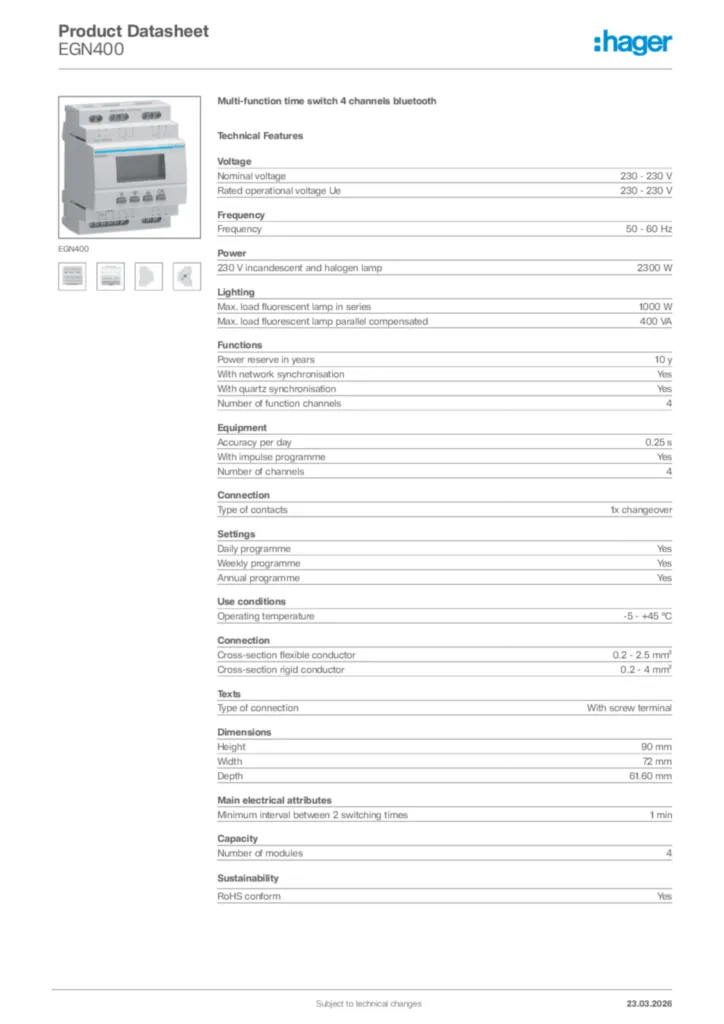

Hager Product data sheet EGN400
Multi-function time switch 4 channels bluetooth
PDF -
ProductApplicationDescription
6LE007391C_QUICKGUIDE_EGN100_200_400_L_A4_Q_FR_WEB.pdf
guide de démarrage rapide 2022-06-28
PDF7,52 MB
6LE007392C_QUICKGUIDE_EGN100-200-400_L_A4_Q_EN_WEB.pdf
quick start guide 2020-06-24
PDF7,29 MB
6LE007393C_QUICKGUIDE_EGN100-200-400_L_A4_Q_DE_WEB.pdf
Schnellstart Anleitung 2022-06-28
PDF7,48 MB -
ProductECDeclaration
Declaration
Declaration of conformity International 2022-05-13
PDF118,54 kB
Declaration of conformity International 2023-04-20
PDF269,54 kB
Declaration of conformity International 2023-04-20
PDF316,39 kB
