    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 160 A
    • invicta DIN Rail Boards
    • DR80F
    EAN
    3250611090403
    Packaging
    1 Piece
    • invicta DIN Rail Boards

    Din rail board, 5 row 80M, non-transparent door, flush DR80F

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Din rail board, 5 row 80M, non-transparent door, flush

    DR80F

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Lock system 1 products available

    Complete your system

    • Lock system
    • VZ303

      VOLTA LOOK FOR STANDARD DOOR HANDLE
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      17
    Voltage
    • Nominal voltage
      415 - 415 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Power
    • Maximum power loss per cabinet at ΔT=20K
      35.39 W
    Equip­ment
    • Number of rails
      5
    • Number of rows
      5
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      80
    • Number of half modules terminals per rail
      32
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      949 mm
    • Width
      430 mm
    • Depth
      5 mm
    • Built-in height
      920 mm
    • Built-in width
      400 mm
    • Built-in depth
      110 mm
    • Number of width units
      16
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Grey white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Without lock
    • Glow wire test
      960 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration DR80F
    PDF
    Hager RoHS report DR80F
    PDF

    Downloads

    • Image DR80F | Hager Africa

      Product Image DR80F

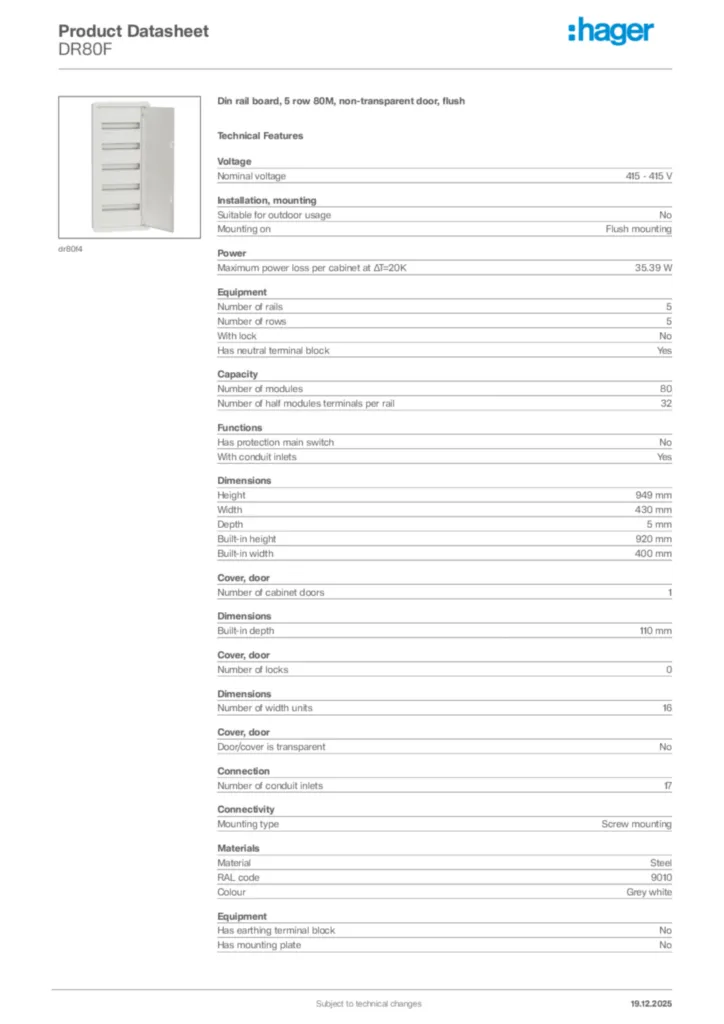

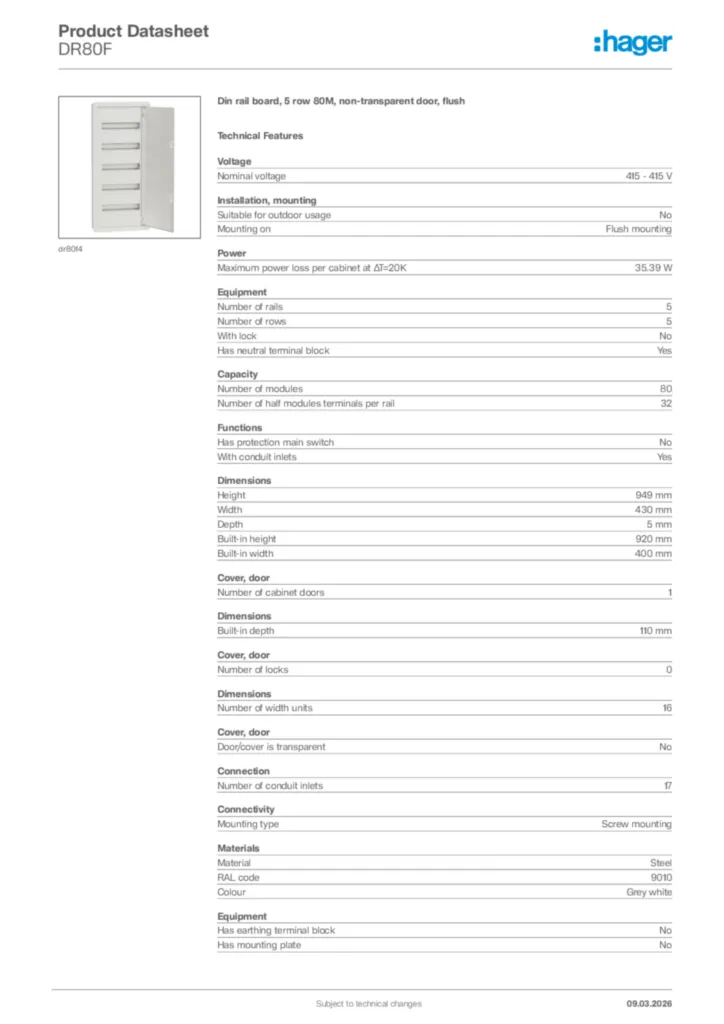

    • Product datasheet

      Image Hager Product data sheet DR80F | Hager Africa

      Hager Product data sheet DR80F

      Din rail board, 5 row 80M, non-transparent door, flush

      PDF

    • Manual

      Image 6LE089796A_DIN_rail_Leaflet_EN_web | Hager Africa

      6LE089796A_DIN_rail_Leaflet_EN_web

      6LE089796A_DIN_rail_Leaflet_EN_2025-01_web

      PDF
      9,58 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-06-20

      PDF
      881,45 kB
