Installation column pressure fit, double sided, height 3.3-3.6m,Clip45, anodized DBS2453300ELN

EAN
4012740857086
Packaging
2

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
Phase out product: please contact your electrical wholesaler for availability

Installation column pressure fit, double sided, height 3.3-3.6m,Clip45, anodized

DBS2453300ELN

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Technical properties

Dimen­sions
  • Depth
    130 mm
  • Width
    65 mm
  • Install­a­tion height
    3.3 - 3.6 m
  • Height adjust­ment
    300 mm
  • Inner cross-sec­tion
    5300 - 5300 mm²
  • Pole shape
    Rect­an­gular
  • Lid width
    45 mm
Cover, door
  • Number of mount­able lids
    2
Equip­ment
  • Adjustable
    Yes
  • Is port­able
    No
Cable
  • Cable entry posi­tion
    Top
Install­a­tion, mounting
  • Ceiling mounting possible
    Yes
  • Suit­able for ground mounting
    Yes
Mater­ials
  • Material
    Aluminium
  • Treat­ment
    Anod­ised
  • Colour
    Aluminium
Config­ur­a­tion
  • Number of sides for install­a­tion
    Double side

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

PEP - Non-equipped service poles with pressure fixation - Series DAS45 & DAS80 & DBS45 (english)
PDF
392,46 kB
Hager REACH declaration DBS2453300ELN
PDF
Hager RoHS report DBS2453300ELN
PDF

Downloads

  • Image DBS2453300ELN | Hager Africa

    Product Image DBS2453300ELN

  • Product datasheet

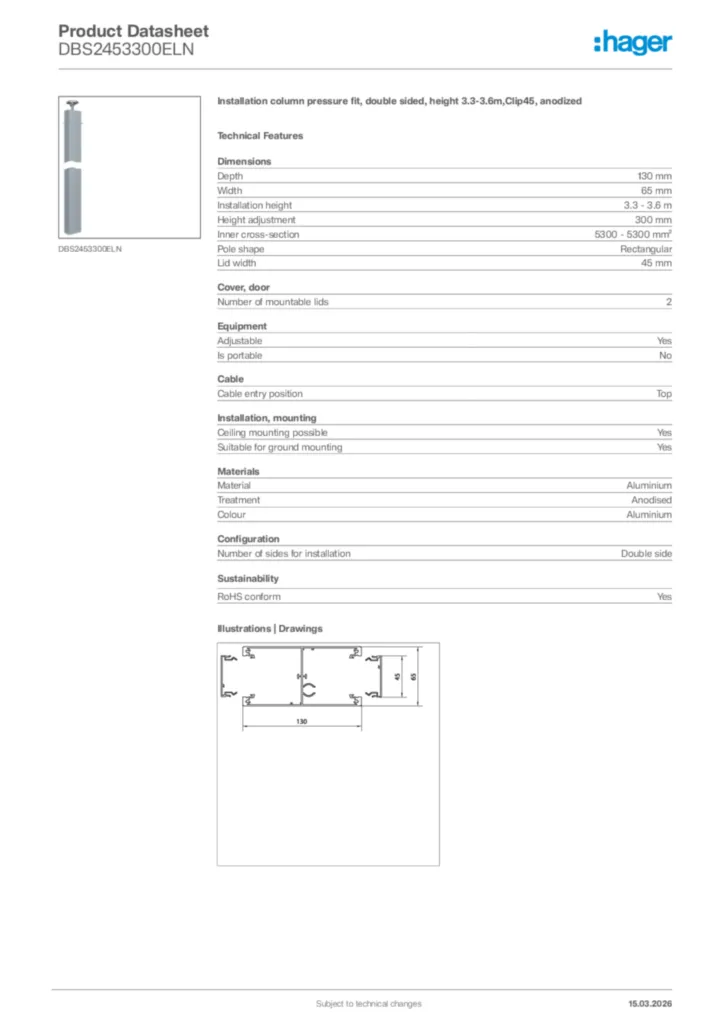

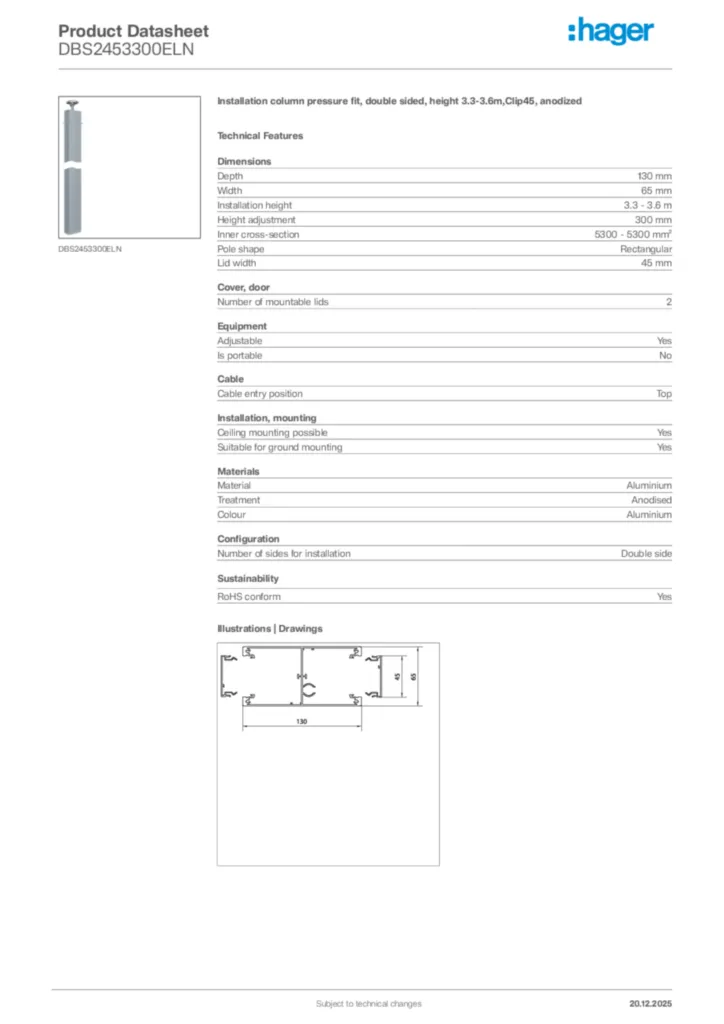

    Image Hager Product data sheet DBS2453300ELN | Hager Africa

    Hager Product data sheet DBS2453300ELN

    Installation column pressure fit, double sided, height 3.3-3.6m,Clip45, anodized

    PDF

  • Instruction manual

    Image Instruction manual International 2020-01-01 | Hager Africa

    Instruction manual International 2020-01-01

    PDF
    1,72 MB

  • Declaration of conformity

    Image EC declaration of conformity DA_DB_DE | Hager Africa

    EC declaration of conformity DA_DB_DE

    Declaration of conformity International 2017-11-20

    PDF
    133,23 kB
