The Hager DA200 double pressure fitting is a double-sided service pole for vertical cable distribution in offices and retail. Adjustable height 3.3-3.6 m (300 mm adjustment) with top cable entry, it supports ceiling and floor mounting. Its 132×132 mm rectangular aluminium body (RAL 9016) offers a large 4300 mm² inner cross-section, two 45 mm lids, and neat, robust, traffic white finish for efficient, segregated power/data routing.
EAN
4012740015882
Packaging
1 Piece
DA200 double-sided fitting 3.0-3.3 m adjustable RAL9016 aluminium top entry DAS24533009016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Depth132 mm
-
Width132 mm
-
Installation height3.3 - 3.6 m
-
Height adjustment300 mm
-
Inner cross-section4300 - 4300 mm²
-
Pole shapeRectangular
-
Lid width45 mm
Cover, door
-
Number of mountable lids2
Equipment
-
AdjustableYes
-
Is portableNo
Cable
-
Cable entry positionTop
Installation, mounting
-
Ceiling mounting possibleYes
-
Suitable for ground mountingYes
Materials
-
MaterialAluminium
-
TreatmentVarnished
-
ColourTraffic white
-
RAL code9016
Configuration
-
Number of sides for installationDouble side
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

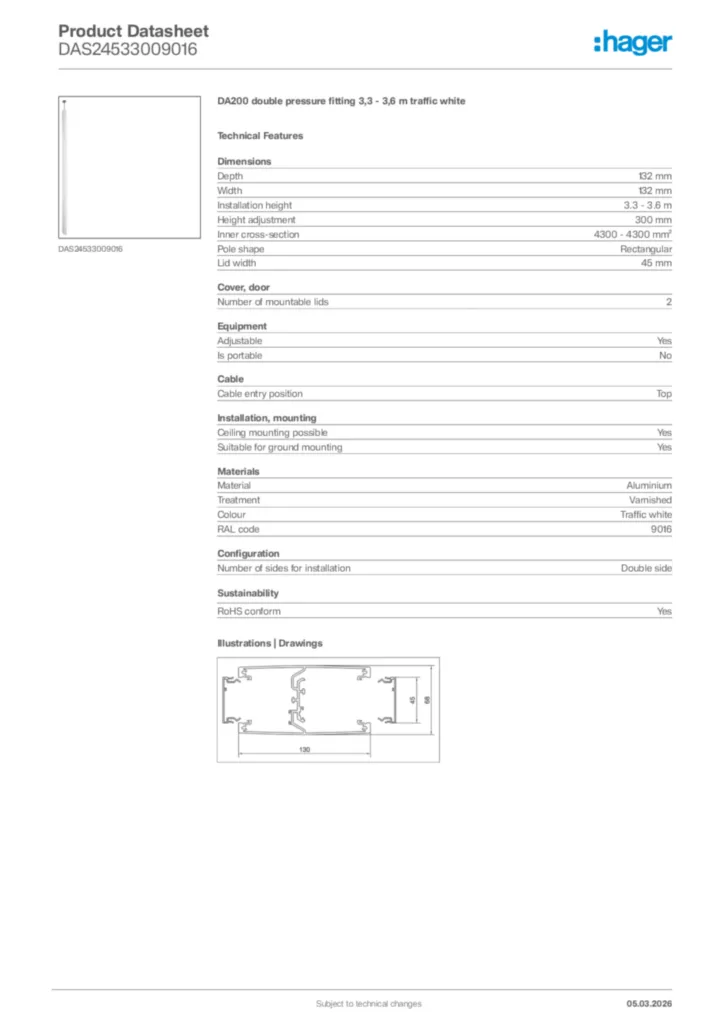

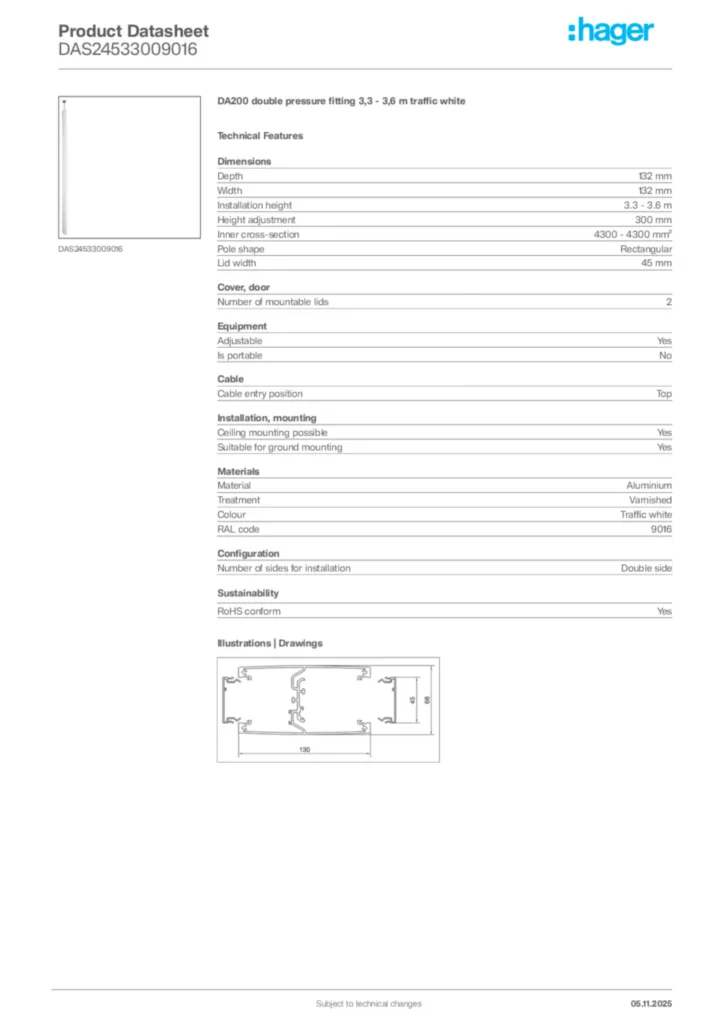

Product datasheet
Hager Product data sheet DAS24533009016
DA200 double pressure fitting 3,3 - 3,6 m traffic white
PDF -
Declaration of conformity
Declaration of conformity en-GB 2026-08-07
PDF298,62 kB
EC declaration of conformity DA_DB_DE
Declaration of conformity International 2017-11-20
PDF133,23 kB
