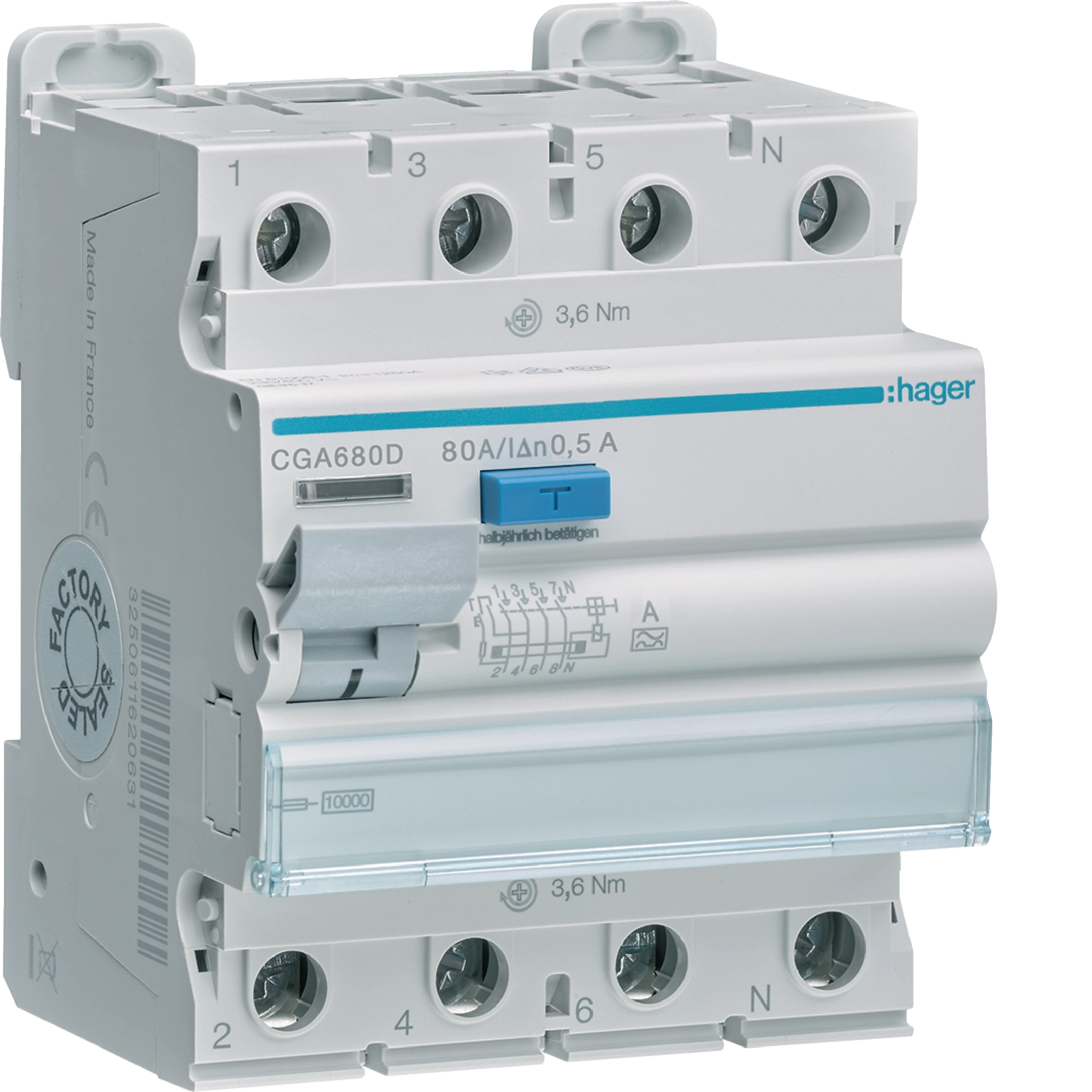

The Hager RCCB 3P+N 80A 500mA Type A protects three-phase systems against earth leakage, detecting AC and pulsating DC faults. With 80A rating, 500mA sensitivity for fire protection, Inc 10kA and Idm 1.25kA, it suits residential and commercial panels. Compact 4 modules for DIN rail, 230-400V AC, 50-60Hz. Screw/biconnect terminals, IP20, -25 to 70°C, and 10k/20k electrical/mechanical cycles ensure durable performance.
EAN
3250611620907
Packaging
1 Piece
RCCB 3P+N 40A 300mA Type AC 10kA 230-400V 4 Modules CGA680D
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
CGA684DTechnical properties
Architecture
-
Type of pole3P+N
-
Number of poles4
Electric current
-
Rated current IN80 A
-
Rated residual operating current Idn500 mA
-
Breaking and opening capacity Idm1.25 kA
-
Rated conditional short-circuit current Inc according to EN61008-110 kA
-
Rated current at -25°C80 A
-
Rated current at -20°C80 A
-
Rated current at -15°C80 A
-
Rated current at -10°C80 A
-
Rated current at -5°C80 A
-
Rated current at 0°C80 A
-
Rated current at 5°C80 A
-
Rated current at 10°C80 A
-
Rated current at 15°C80 A
-
Rated current at 20°C80 A
-
Rated current at 25°C80 A
-
Rated current at 30°C80 A
-
Rated current at 35°C80 A
-
Rated current at 40°C80 A
-
Rated current at 45°C80 A
-
Rated current at 50°C80 A
-
Rated current at 55°C80 A
-
Rated current at 60°C80 A
-
Rated current at 65°C80 A
-
Rated current at 70°C80 A
Installation, mounting
-
Nominal tightening torque top terminal3.60 - 3.60 Nm
-
Nominal tightening torque down terminal3.60 - 3.60 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Dielectric strength value of power frequency2 kV
-
Rated impulse withstand voltage Uimp4000 V
-
Rated impulse withstand voltage Uimp IEC 60947-36000 V
-
Max. operating voltage440 V
Frequency
-
Frequency50 - 60 Hz
Capacity
-
Number of modules4
Compatibility
-
Suitable for DIN RailYes
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of bottom terminal with screws, for rigid conductors1 - 50 mm²
-
Cross-section of bottom terminal with screws, for flexible conductors1 - 35 mm²
-
Cross-section of top and bottom terminal with screws, for flexible conductors1 - 35 mm²
-
Cross-section of top and bottom terminal with screws, for rigid conductors1 - 50 mm²
Power
-
Power dissipation at IN15.80 W
Use conditions
-
Max. altitude2000 m
-
Operating temperature-25 - 70 °C
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Dimensions
-
Height85 mm
-
Width72 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet
Hager Product data sheet CGA680D
RCCB 3P+N 80A 500mA A
PDF -
