The Hager RCCB 1P+N 63A 100 mA Type A (2 modules) protects installations by disconnecting on earth leakage, detecting AC and pulsating DC faults. Suited for upstream/fire protection in residential and light commercial boards. 230 V AC, Inc 6 kA, Uimp 4 kV, IP20. DIN-rail mount. Top screw and bottom biconnect terminals, 1-25 mm². Electric endurance 2000 cycles. Compact: 83×35×70 mm.

EAN

3250611614166

Packaging

1 Piece

Residual current circuit breakers (RCCB)

RCCB 4P 63A 300mA Type A HI 6kA 230/400V 4M CEA263E

Technical properties
Environmental value
Documentations
More products

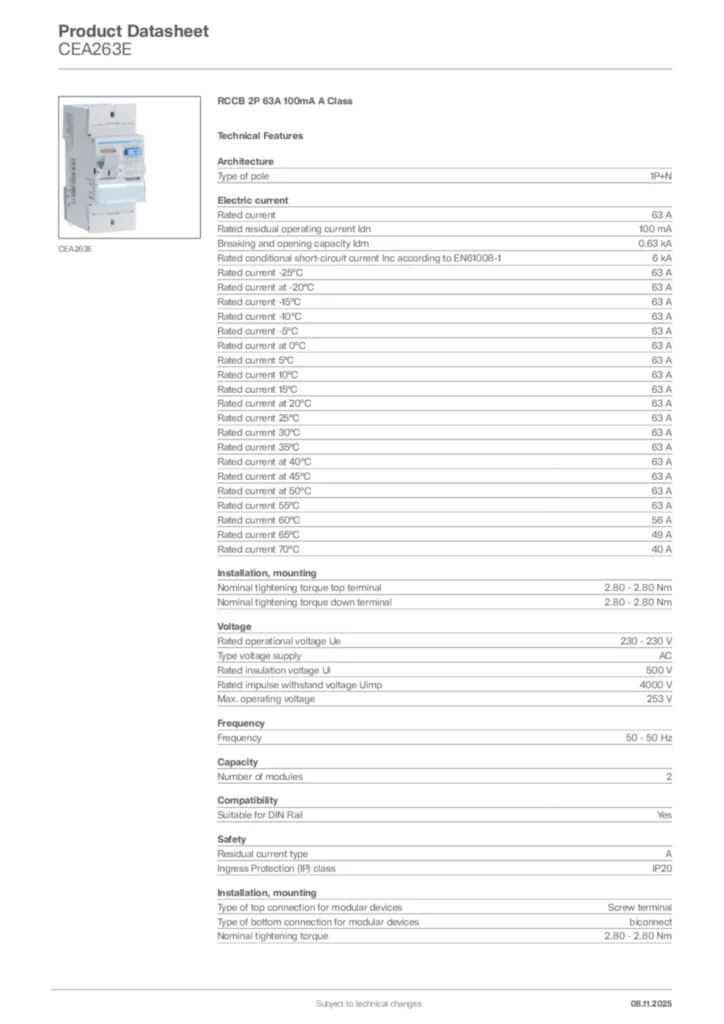

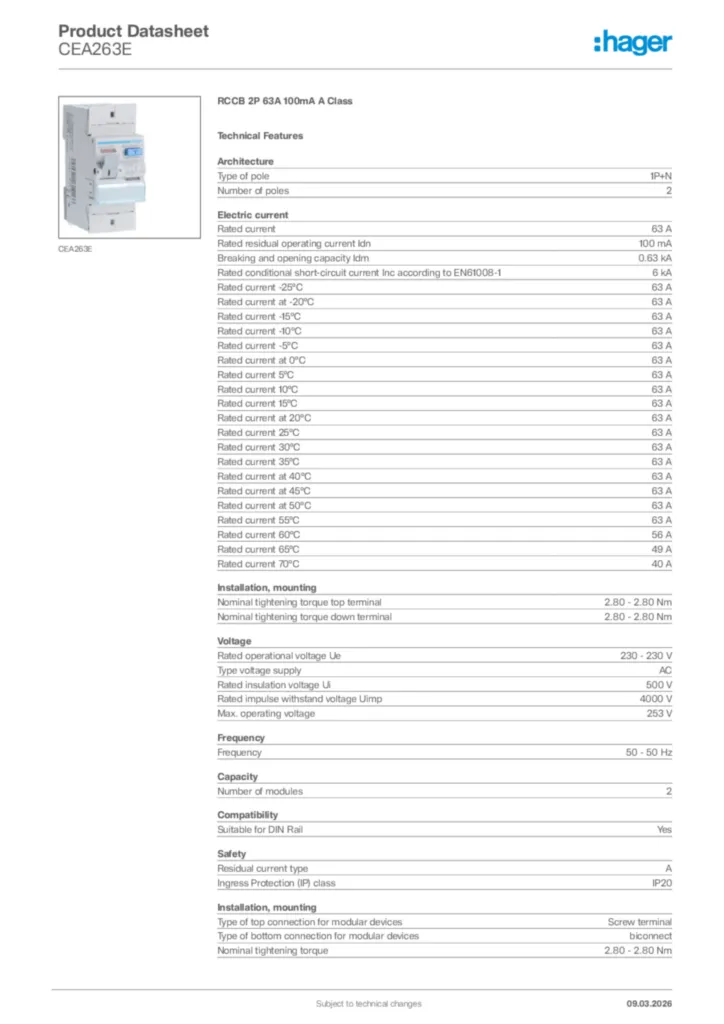

Download the data sheet

Technical properties

Type of pole

1P+N
Number of poles

2

Rated current IN

63 A
Rated residual operating current Idn

100 mA
Breaking and opening capacity Idm

0.63 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current -25°C

63 A
Rated current at -20°C

63 A
Rated current -15°C

63 A
Rated current -10°C

63 A
Rated current -5°C

63 A
Rated current at 0°C

63 A
Rated current 5°C

63 A
Rated current 10°C

63 A
Rated current 15°C

63 A
Rated current at 20°C

63 A
Rated current 25°C

63 A
Rated current 30°C

63 A
Rated current 35°C

63 A
Rated current at 40°C

63 A
Rated current at 45°C

63 A
Rated current at 50°C

63 A
Rated current 55°C

63 A
Rated current 60°C

56 A
Rated current 65°C

49 A
Rated current 70°C

40 A

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect
Nominal tightening torque

2.80 - 2.80 Nm

Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V

Frequency

50 - 50 Hz

Number of modules

2

Suitable for DIN Rail

Yes

Residual current type

A
Ingress Protection (IP) class

IP20

Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section flexible conductor

16 mm²
Cross-section rigid conductor

25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Power dissipation at IN

8.70 W

Max. altitude

2000 m
Operating temperature

-25 - 40 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

4000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm
