Residual current circuit breakers (RCCB)

RCCB 3P+N 100A 30mA A CDA684D

Technical properties
Environmental value
Documentations
More products

Download the data sheet

Technical properties

Type of pole

3P+N

Rated current

100 A
Rated residual operating current Idn

30 mA
Breaking and opening capacity Idm

1.25 kA
Rated conditional short-circuit current Inc according to EN61008-1

10 kA
Rated current -25°C

100 A
Rated current at -20°C

100 A
Rated current -15°C

100 A
Rated current -10°C

100 A
Rated current -5°C

100 A
Rated current at 0°C

100 A
Rated current 5°C

100 A
Rated current 10°C

100 A
Rated current 15°C

100 A
Rated current at 20°C

100 A
Rated current 25°C

100 A
Rated current 30°C

100 A
Rated current 35°C

100 A
Rated current at 40°C

100 A
Rated current at 45°C

100 A
Rated current at 50°C

100 A
Rated current 55°C

100 A
Rated current 60°C

100 A
Rated current 65°C

95 A
Rated current 70°C

90 A

Nominal tightening torque top terminal

3.60 - 3.60 Nm
Nominal tightening torque down terminal

3.60 - 3.60 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Dielectric strength value of power frequency

2 kV
Rated impulse withstand voltage Uimp

4000 V
Rated impulse withstand voltage Uimp IEC 60947-3

6000 V
Max. operating voltage

440 V

Frequency

50 - 50 Hz

Number of modules

4

Suitable for DIN Rail

Yes

Ingress Protection (IP) class

IP20

Cross-section of output with screws, for massive conductors

1 - 50 mm²
Cross-section of output with screws, for flexible conductors

1 - 35 mm²

Total power loss under IN

21.48 W

Max. Altitude

2000 m
Operating temperature

-25 - 60 °C

Electric endurance in number of cycles

10000
Number of mechanical operations

20000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

85 mm
Width

72 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

RCCB 4P 40A 30mA A Class

PDF

23,23 MB

Hager REACH declaration CDA684D

PDF

Hager RoHS report CDA684D

PDF

Downloads

Product Image CDA684D
Product datasheet

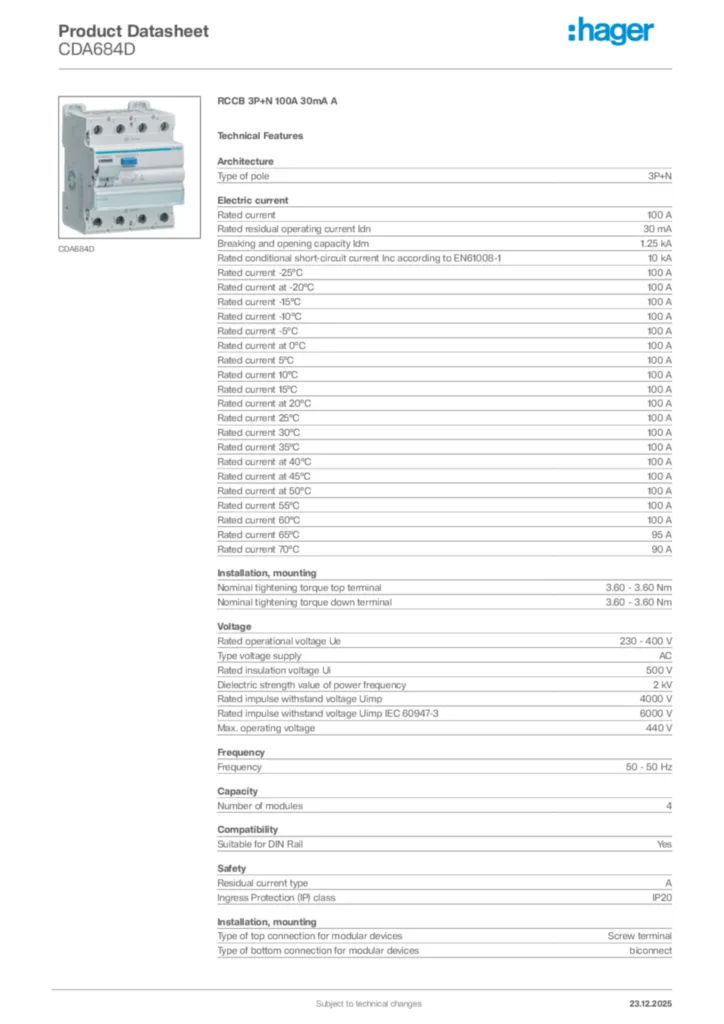

Hager Product data sheet CDA684D
