Earth leakage add-on-block 2P 125A Adjustable type HI BTH280E
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current125 A
-
Rated residual operating current Idn300 mA, 500 mA, 1000 mA
Architecture
-
Number of poles2
Frequency
-
Frequency50 - 50 Hz
Installation, mounting
-
Nominal tightening torque3.50 - 3.50 Nm
Power
-
Total power loss under IN7.50 W
Endurance
-
Number of mechanical operations7000
-
Electric endurance in number of cycles1000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Safety
-
Residual current typeA HI
Capacity
-
Number of modules6
Connectivity
-
Type of connectionScrew terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height103 mm
-
Width160 mm
-
Depth69 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

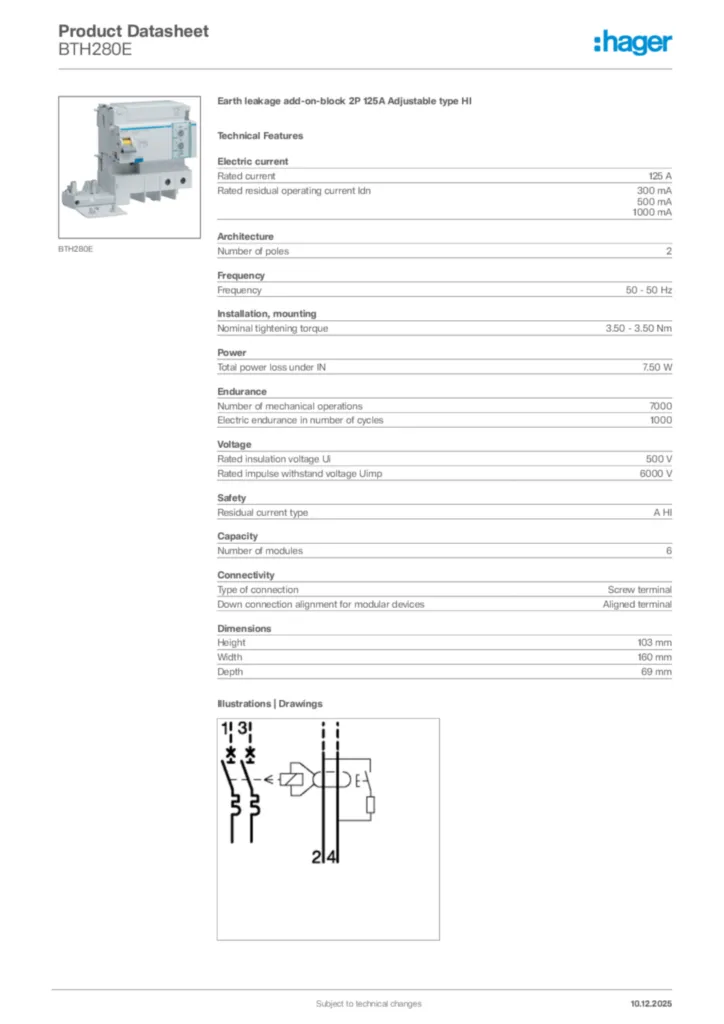

Product datasheet

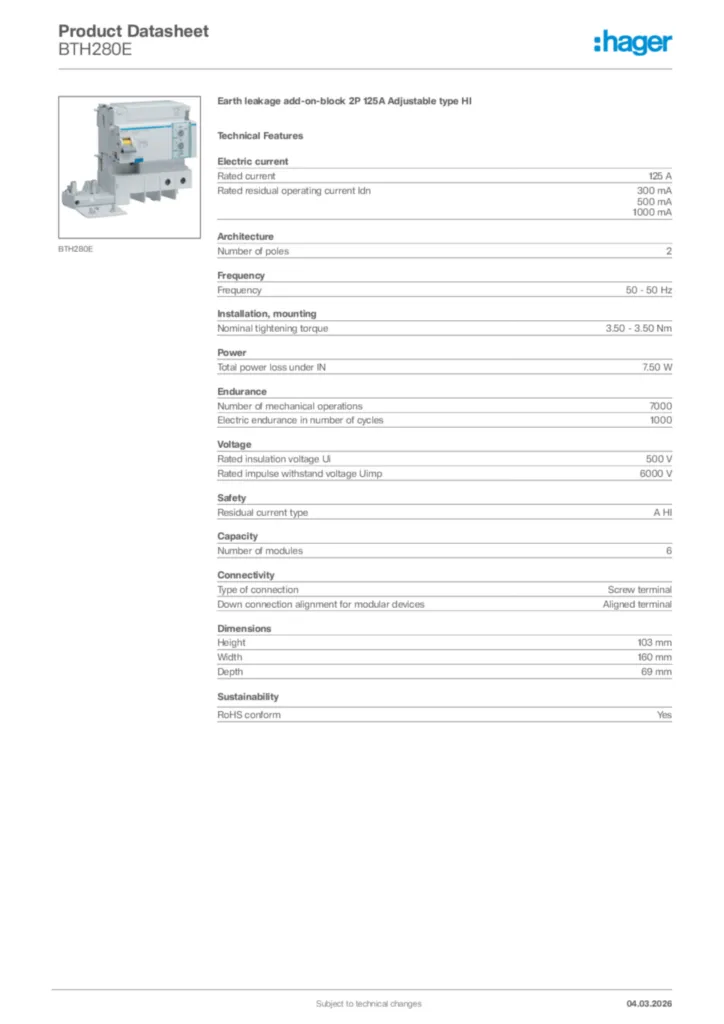

Hager Product data sheet BTH280E
Earth leakage add-on-block 2P 125A Adjustable type HI
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2022-03-09
PDF945,34 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
