    Earth leakage add-on-block 4P 125A Adjustable type AC BTC480E

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on-block 4P 125A Adjustable type AC

    BTC480E

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 17 products available

    Referenced by

    • HMB490

      MCB 4P 15kA B-100A 6M
      0.00 €  / *
    • HMX416

      MCB 4P 50kA C-16A 6M
      0.00 €  / *
    • HMX420

      MCB 4P 50kA C-20A 6M
      0.00 €  / *
    • HMX425

      MCB 4P 50kA C-25A 6M
      0.00 €  / *
    • HMX432

      MCB 4P 50kA C-32A 6M
      0.00 €  / *
    • HMX440

      MCB 4P 50kA C-40A 6M
      0.00 €  / *
    • HMX450

      MCB 4P 50kA C-50A 6M
      0.00 €  / *
    • HMX463

      MCB 4P 50kA C-63A 6M
      0.00 €  / *
    • HMB480

      MCB 4P 15kA B-80A 6M
      0.00 €  / *
    • HMX410

      MCB 4P 50kA C-10A 6M
      0.00 €  / *
    • HMB499

      MCB 4P 15kA B-125A 6M
      0.00 €  / *
    • HMC480

      MCB 4P 15kA C-80A 6M
      0.00 €  / *
    • HMC490

      MCB 4P 15kA C-100A 6M
      0.00 €  / *
    • HMC499

      MCB 4P 15kA C-125A 6M
      0.00 €  / *
    • HMD480

      MCB 4P 15kA D-80A 6M
      0.00 €  / *
    • HMD490

      MCB 4P 15kA D-100A 6M
      0.00 €  / *
    • HMD499

      MCB 4P 15kA D-125A 6M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      125 A
    • Rated residual oper­ating current Idn
      300 mA, 500 mA, 1000 mA
    Archi­tec­ture
    • Number of poles
      4
    Safety
    • Residual current type
      AC
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      6000 V
    Connec­tion
    • Cross-sec­tion of input and output with screws, for massive conductors
      10 - 70 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      10 - 50 mm²
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      103 mm
    • Width
      213 mm
    • Depth
      69 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Earth leakage add-on block 4P 63A 30mA A Class (english)
    PDF
    666,81 kB
    REACH declaration BTC480E
    PDF
    RoHS report BTC480E
    PDF

    Downloads

    • Image BTC480E | Hager Africa

      Product Image BTC480E

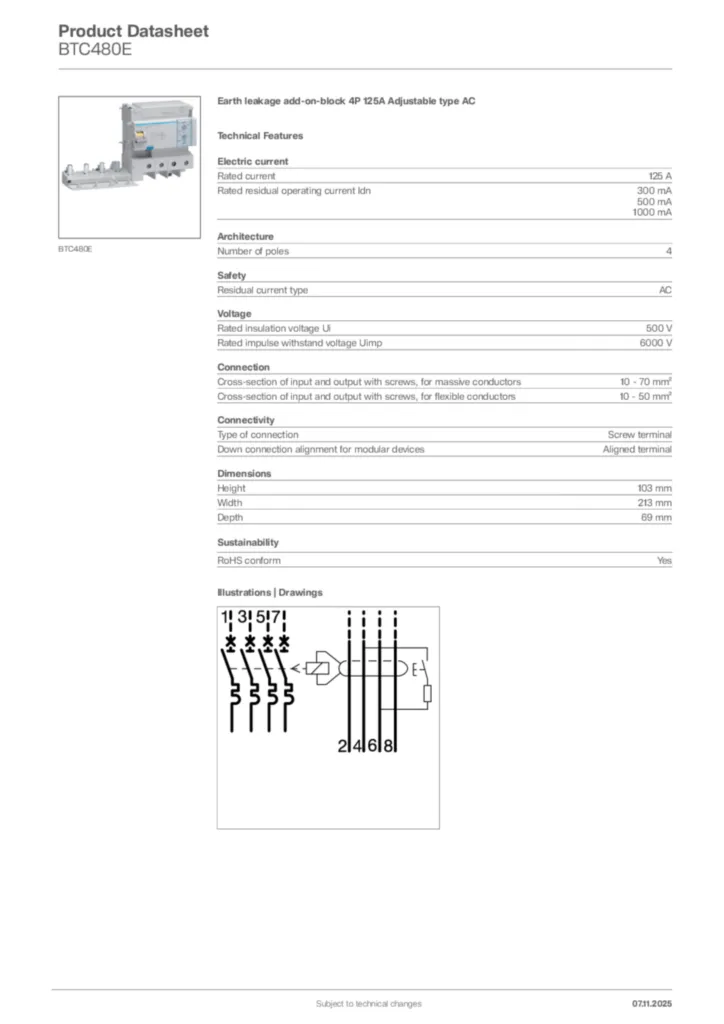

    • Product datasheet

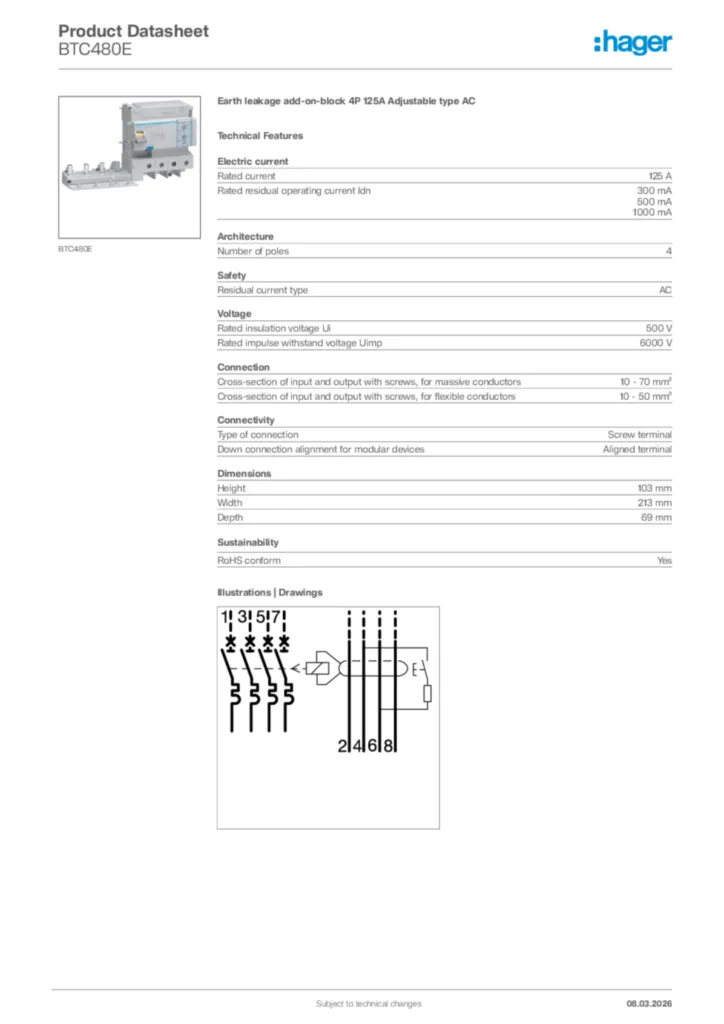

      Image Hager Product data sheet BTC480E | Hager Africa

      Hager Product data sheet BTC480E

      Earth leakage add-on-block 4P 125A Adjustable type AC

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2021-11-10

      PDF
      920,46 kB
