The Hager Earth leakage add-on block 2P 63A 1A AC S Class provides selective residual-current protection when coupled to compatible MCBs. With 63A rating and 1A Idn (AC type, S-class time delay), it ensures upstream discrimination and reduces nuisance trips in 230/400 V systems. 2 modules wide with aligned terminals and left neutral, it fits compactly in panels. Uimp 4 kV, Ui 500 V, 50 Hz.

EAN

3250611492641

Packaging

1 Piece

Connection terminal 1P prong 100A screw terminal 2x25mm² BS264

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

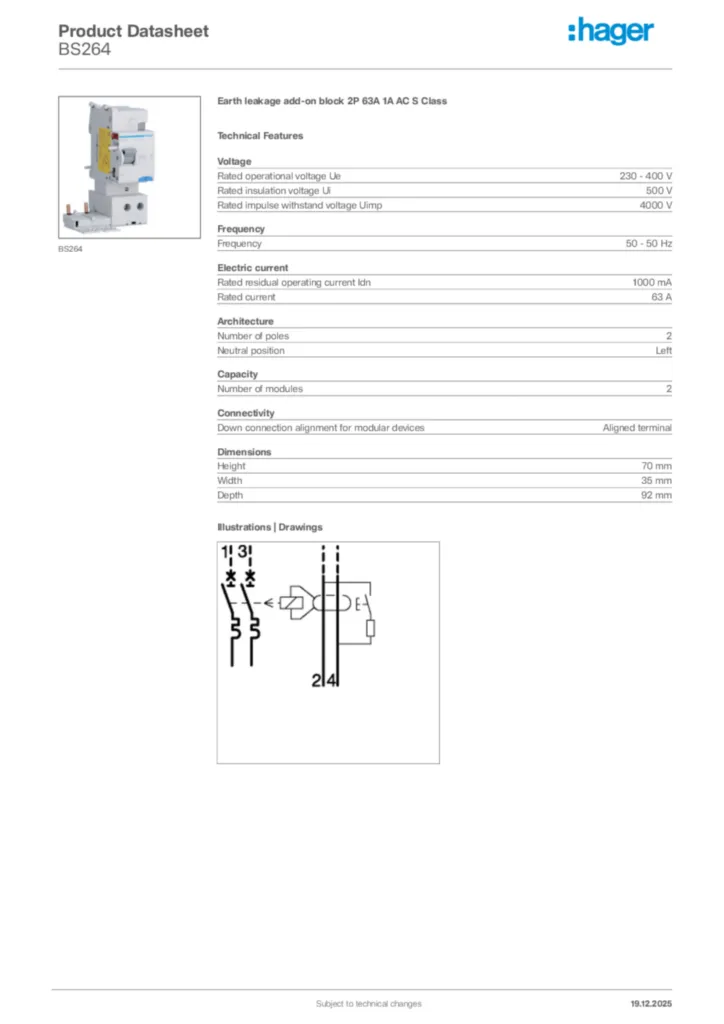

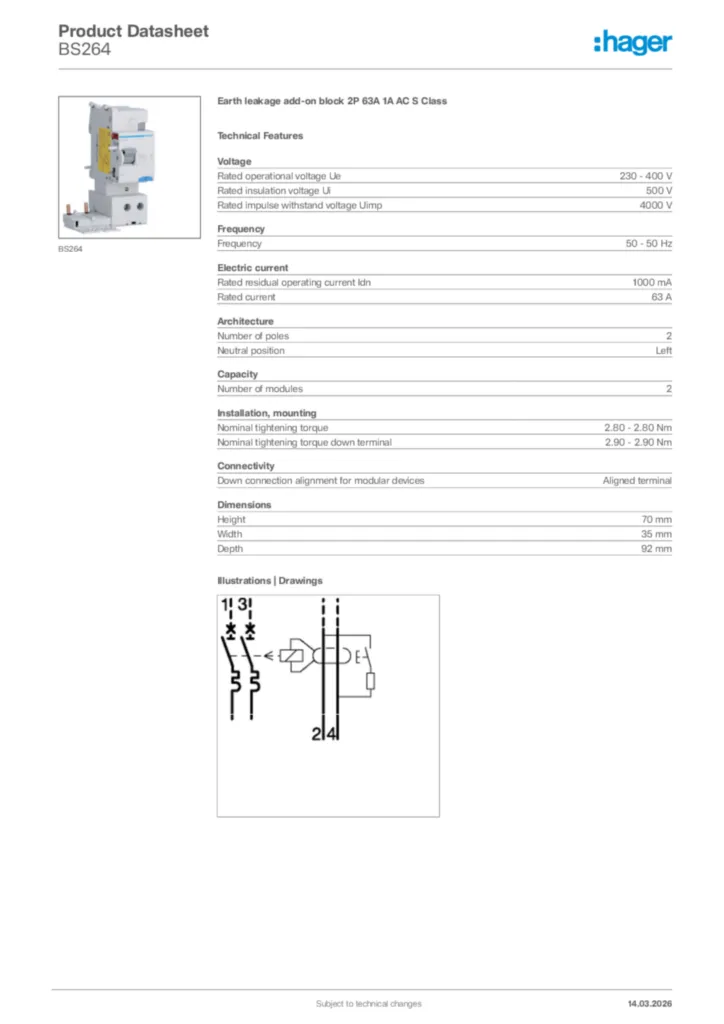

Download the data sheet

Technical properties

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

1000 mA
Rated current

63 A

Number of poles

2
Neutral position

Left

Number of modules

2

Nominal tightening torque

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.90 - 2.90 Nm

Down connection alignment for modular devices

Aligned terminal

Height

70 mm
Width

35 mm
Depth

92 mm
