    Earth leakage add-on block 2P 63A 500mA AC S Class BR264

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on block 2P 63A 500mA AC S Class

    BR264

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 151 products available

    Referenced by

    • NDN225A

      MCB 2P 10kA/15kA D-25A 2M
      0.00 €  / *
    • MCN201

      MCB 2P 6kA C-1A 2M
      0.00 €  / *
    • NDN204A

      MCB 2P 10kA/15kA D-4A 2M
      0.00 €  / *
    • NCN203A

      MCB 2P 10kA/15kA C-3A 2M
      0.00 €  / *
    • NBN210A

      MCB 2P 10kA/15kA B-10A 2M
      0.00 €  / *
    • NRN225

      MCB 2P 25kA C-25A 2M
      0.00 €  / *
    • NGN210

      MCB 2P 6/10kA D-10A 2M
      0.00 €  / *
    • NBN250A

      MCB 2P 10kA/15kA B-50A 2M
      0.00 €  / *
    • NFN202

      MCB 2P 6/10kA C-2A 2M
      0.00 €  / *
    • NDN220A

      MCB 2P 10kA/15kA D-20A 2M
      0.00 €  / *
    • NCN263A

      MCB 2P 10kA/15kA C-63A 2M
      0.00 €  / *
    • NCN232A

      MCB 2P 10kA/15kA C-32A 2M
      0.00 €  / *
    • NBN225A

      MCB 2P 10kA/15kA B-25A 2M
      0.00 €  / *
    • NDN232A

      MCB 2P 10kA/15kA D-32A 2M
      0.00 €  / *
    • NCN240A

      MCB 2P 10kA/15kA C-40A 2M
      0.00 €  / *
    • NCN204A

      MCB 2P 10kA/15kA C-4A 2M
      0.00 €  / *
    • NDN240A

      MCB 2P 10kA/15kA D-40A 2M
      0.00 €  / *
    • NGN225

      MCB 2P 6/10kA D-25A 2M
      0.00 €  / *
    • NCN216A

      MCB 2P 10kA/15kA C-16A 2M
      0.00 €  / *
    • NBN263A

      MCB 2P 10kA/15kA B-63A 2M
      0.00 €  / *

    Technical properties

    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Elec­tric current
    • Rated residual oper­ating current Idn
      500 mA
    • Rated current
      63 A
    Archi­tec­ture
    • Number of poles
      2
    • Neutral posi­tion
      Left
    Capa­city
    • Number of modules
      2
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2.80 - 2.80 Nm
    • Nominal tight­ening torque down terminal
      2.90 - 2.90 Nm
    Connectivity
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      70 mm
    • Width
      35 mm
    • Depth
      92 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    Hager REACH declaration BR264
    PDF

    Downloads

    • Image BR264 | Hager Africa

      Product Image BR264

    • Product datasheet

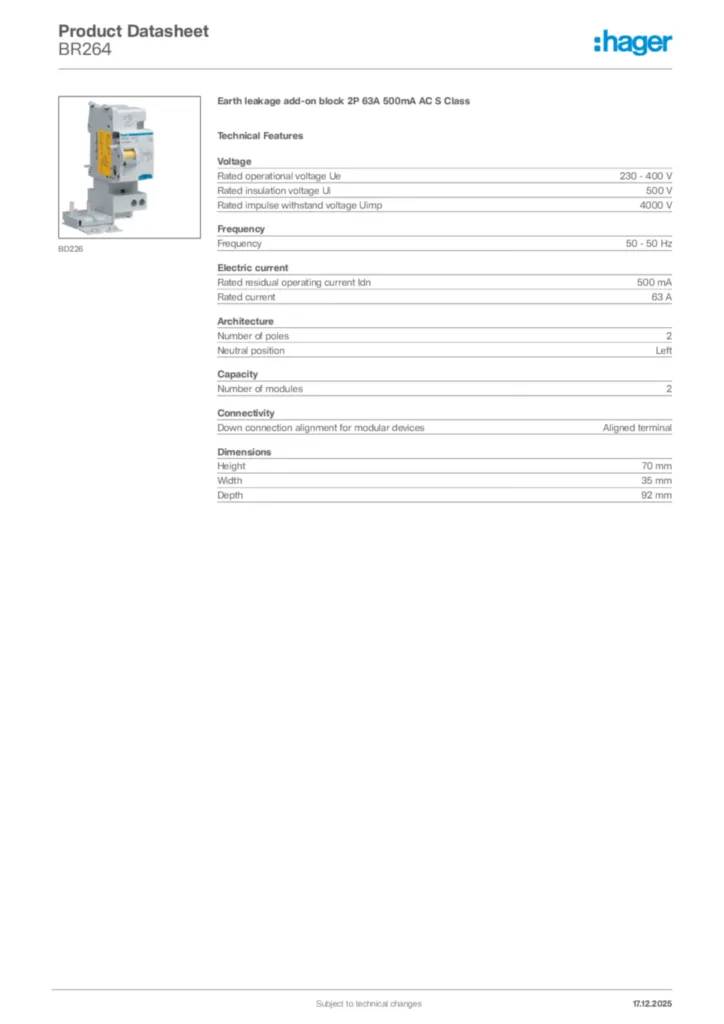

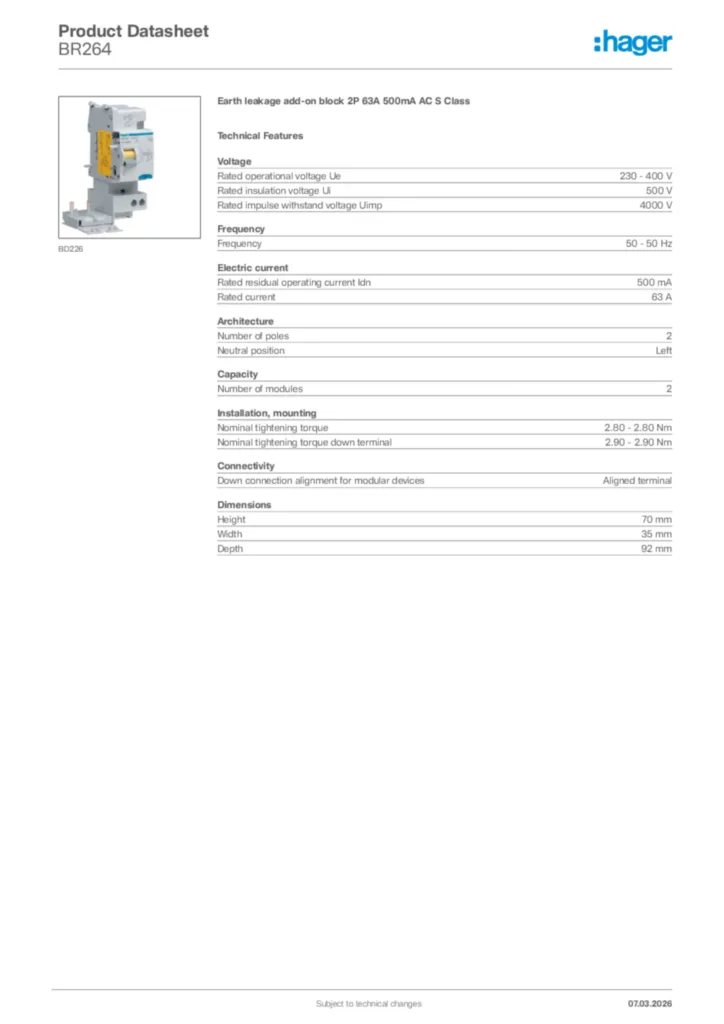

      Image Hager Product data sheet BR264 | Hager Africa

      Hager Product data sheet BR264

      Earth leakage add-on block 2P 63A 500mA AC S Class

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2021-11-10

      PDF
      920,46 kB
      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2021-12-07

      PDF
      1,14 MB
      Image EU Declaration of Conformity | Hager Africa

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-11-12

      PDF
      452,70 kB
