The Hager earth leakage add-on block 4P 63A 300mA AC S Class provides selective residual current protection for 3-phase circuits, reducing nuisance tripping and enhancing fire safety. Rated 230-400 V, 63 A, Idn 300 mA, Ui 500 V, Uimp 4 kV. Four poles with left neutral, 50 Hz, 3 modules. Robust terminals (≈2.8-2.9 Nm). Ideal for pairing with a 4P MCB to upgrade distribution boards.

EAN

3250611464648

Packaging

1 Piece

Golf flush distributor 1-row 12M IP40 63A MS+PE terminals white door BP464

Name: BP464
Brand: Hager
SKU: BP4641

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

BPC863

Technical properties
Environmental value
Documentations

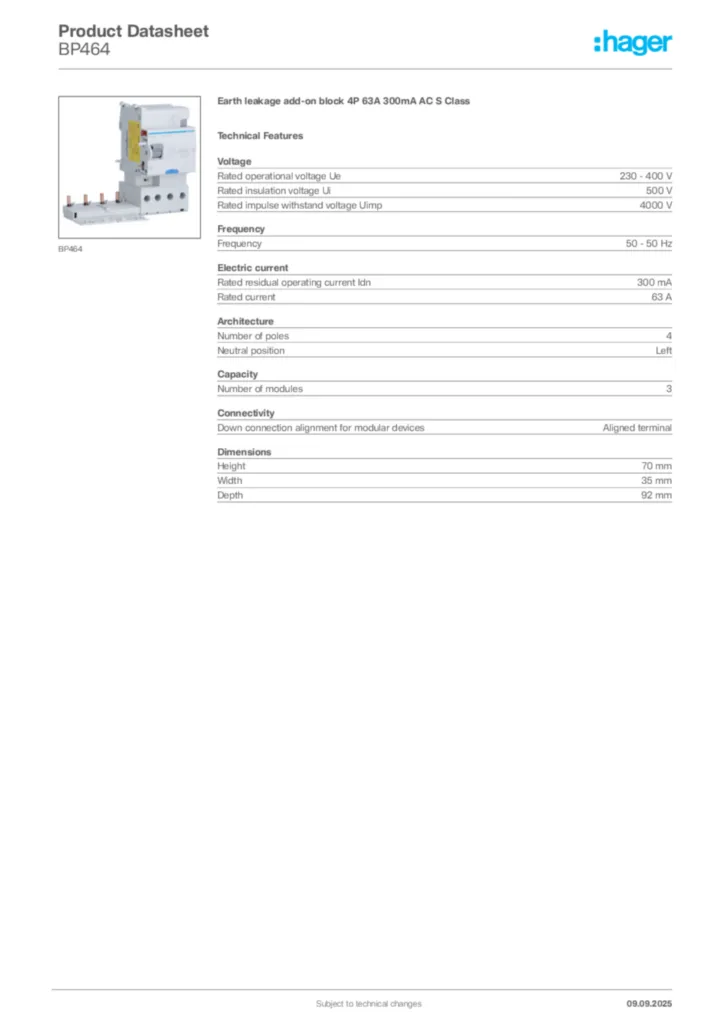

Download the data sheet

Technical properties

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

300 mA
Rated current

63 A

Number of poles

4
Neutral position

Left

Number of modules

3

Nominal tightening torque

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.90 - 2.90 Nm

Down connection alignment for modular devices

Aligned terminal

Height

70 mm
Width

35 mm
Depth

92 mm
