Earth leakage add-on-block 4P 125A 300mA type A HI BFH480E
EAN
3250611360018
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 17 products available
Referenced by
-
HMB490MCB 4P 15kA B-100A 6M
-
HMX416MCB 4P 50kA C-16A 6M
-
HMX420MCB 4P 50kA C-20A 6M
-
HMX425MCB 4P 50kA C-25A 6M
-
HMX432MCB 4P 50kA C-32A 6M
-
HMX440MCB 4P 50kA C-40A 6M
-
HMX450MCB 4P 50kA C-50A 6M
-
HMX463MCB 4P 50kA C-63A 6M
-
HMB480MCB 4P 15kA B-80A 6M
-
HMX410MCB 4P 50kA C-10A 6M
-
HMB499MCB 4P 15kA B-125A 6M
-
HMC480MCB 4P 15kA C-80A 6M
-
HMC490MCB 4P 15kA C-100A 6M
-
HMC499MCB 4P 15kA C-125A 6M
-
HMD480MCB 4P 15kA D-80A 6M
-
HMD490MCB 4P 15kA D-100A 6M
-
HMD499MCB 4P 15kA D-125A 6M
Technical properties
Electric current
-
Rated current125 A
-
Rated residual operating current Idn300 mA
Architecture
-
Number of poles4
Frequency
-
Frequency50 - 50 Hz
Installation, mounting
-
Nominal tightening torque3.50 - 3.50 Nm
Power
-
Total power loss under IN15 W
Endurance
-
Number of mechanical operations7000
-
Electric endurance in number of cycles1000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Safety
-
Residual current typeA HI
Capacity
-
Number of modules6
Connectivity
-
Type of connectionScrew terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height103 mm
-
Width213 mm
-
Depth69 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

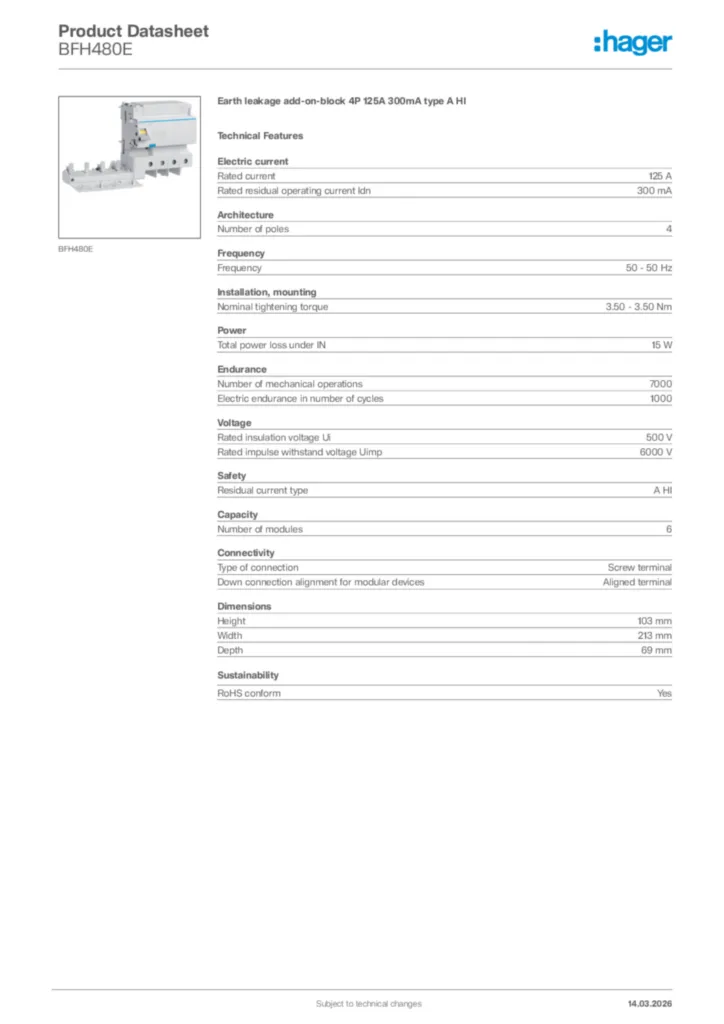

Product datasheet
