Earth leakage add-on-block 2P 125A 30mA type AC BDC280E
EAN
3250611340003
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 17 products available
Referenced by
-
HMD299MCB 2P 15kA D-125A 3M
-
HMB280MCB 2P 15kA B-80A 3M
-
HMB290MCB 2P 15kA B-100A 3M
-
HMB299MCB 2P 15kA B-125A 3M
-
HMC280MCB 2P 15kA C-80A 3M
-
HMC290MCB 2P 15kA C-100A 3M
-
HMC299MCB 2P 15kA C-125A 3M
-
HMD280MCB 2P 15kA D-80A 3M
-
HMD290MCB 2P 15kA D-100A 3M
-
HMX263MCB 2P 50kA C-63A 3M
-
HMX210MCB 2P 50kA C-10A 3M
-
HMX216MCB 2P 50kA C-16A 3M
-
HMX220MCB 2P 50kA C-20A 3M
-
HMX225MCB 2P 50kA C-25A 3M
-
HMX232MCB 2P 50kA C-32A 3M
-
HMX240MCB 2P 50kA C-40A 3M
-
HMX250MCB 2P 50kA C-50A 3M
Technical properties
Electric current
-
Rated current125 A
-
Rated residual operating current Idn30 mA
Architecture
-
Number of poles2
Safety
-
Residual current typeAC
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Connection
-
Cross-section of input and output with screws, for massive conductors10 - 70 mm²
-
Cross-section of input and output with screws, for flexible conductors10 - 50 mm²
Connectivity
-
Type of connectionScrew terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height103 mm
-
Width160 mm
-
Depth69 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

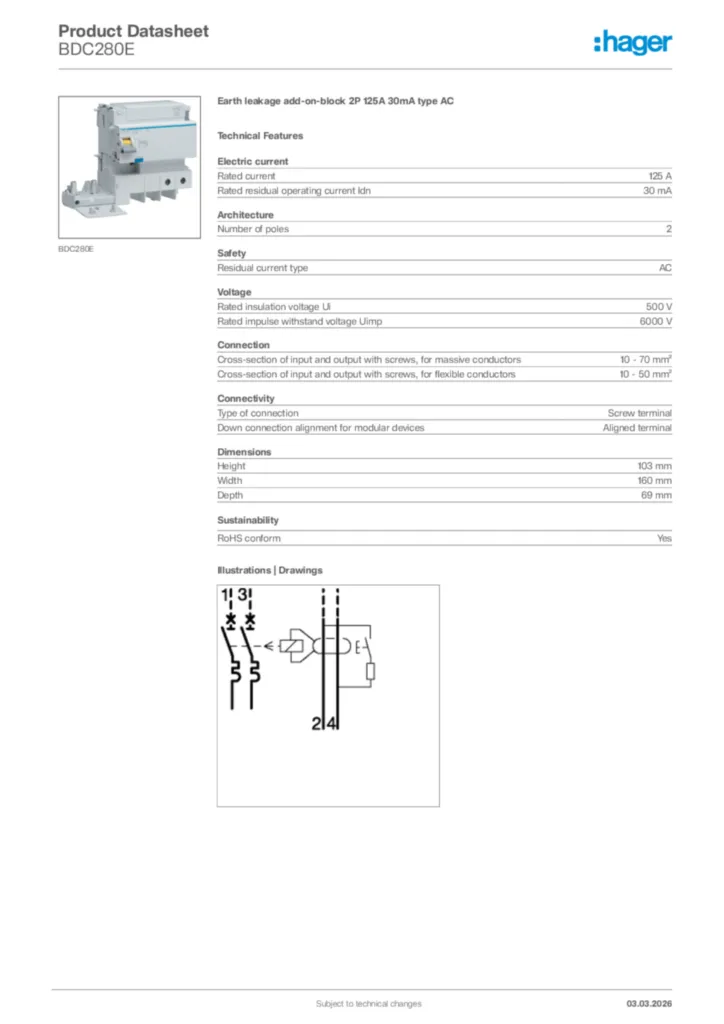

Product datasheet
undefined
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
