Earth leakage add-on block 4P 40A 30mA A high immunity Class BD440

EAN
3250611344407
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Earth leakage add-on block 4P 40A 30mA A high immunity Class

BD440

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Referenced by 24 products available

Referenced by

  • NEN432

    MCB 4P 6/10kA B-32A 4M
    0.00 €  / *
  • NF440A

    MCB 4P 6/10kA C-40A 4M
    0.00 €  / *
  • NF432A

    MCB 4P 6/10kA C-32A 4M
    0.00 €  / *
  • NGN432

    MCB 4P 6/10kA D-32A 4M
    0.00 €  / *
  • NDN440A

    MCB 4P 10kA/15kA D-40A 4M
    0.00 €  / *
  • NCN440A

    MCB 4P 10kA/15kA C-40A 4M
    0.00 €  / *
  • NBN440A

    MCB 4P 10kA/15kA B-40A 4M
    0.00 €  / *
  • NDN432A

    MCB 4P 10kA/15kA D-32A 4M
    0.00 €  / *
  • NFN432

    MCB 4P 6/10kA C-32A 4M
    0.00 €  / *
  • NCN432A

    MCB 4P 10kA/15kA C-32A 4M
    0.00 €  / *
  • NRN432

    MCB 4P 20kA C-32A 4M
    0.00 €  / *
  • NFN440

    MCB 4P 6/10kA C-40A 4M
    0.00 €  / *
  • MBN432

    MCB 4P 6kA B-32A 4M
    0.00 €  / *
  • NBN432A

    MCB 4P 10kA/15kA B-32A 4M
    0.00 €  / *
  • NRN440

    MCB 4P 20kA C-40A 4M
    0.00 €  / *
  • NQN432

    MCB 4P 20kA B-32A 4M
    0.00 €  / *

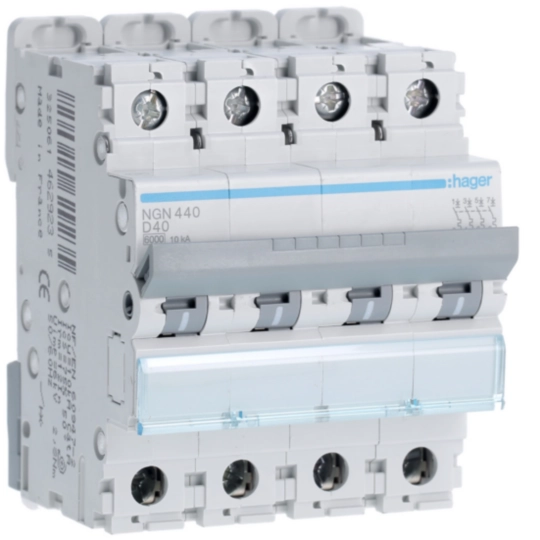

  • NGN440

    MCB 4P 6/10kA D-40A 4M
    0.00 €  / *
  • NQN440

    MCB 4P 20kA B-40A 4M
    0.00 €  / *

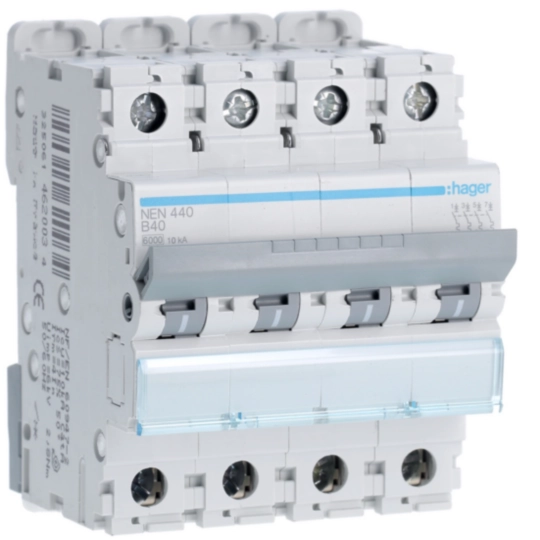

  • NEN440

    MCB 4P 6/10kA B-40A 4M
    0.00 €  / *

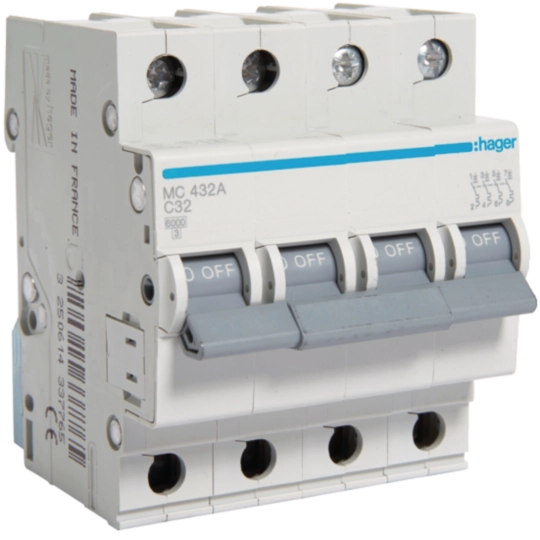

  • MC432A

    MCB 4P 6kA C-32A 4M
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    40 A
  • Rated residual oper­ating current Idn
    30 mA
Archi­tec­ture
  • Number of poles
    4
Safety
  • Residual current type
    A HI
Capa­city
  • Number of modules
    3
Frequency
  • Frequency
    50 - 50 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    2.80 - 2.80 Nm
Power
  • Total power loss under IN
    3.8 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    2000
Voltage
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration BD440
PDF
Hager RoHS report BD440
PDF

Downloads

  • Image BD440 | Hager Africa

    Product Image BD440

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Installation manual

    Image Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29 | Hager Africa

    Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29

    PDF
    1,61 MB

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-11-10

    PDF
    920,46 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-12-07

    PDF
    1,14 MB
    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-11-12

    PDF
    452,70 kB
