Earth leakage add-on block 3P 25A 30mA AC Class BD326
EAN
3250611343264
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles3
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current25 A
Frequency
-
Frequency50 - 50 Hz
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

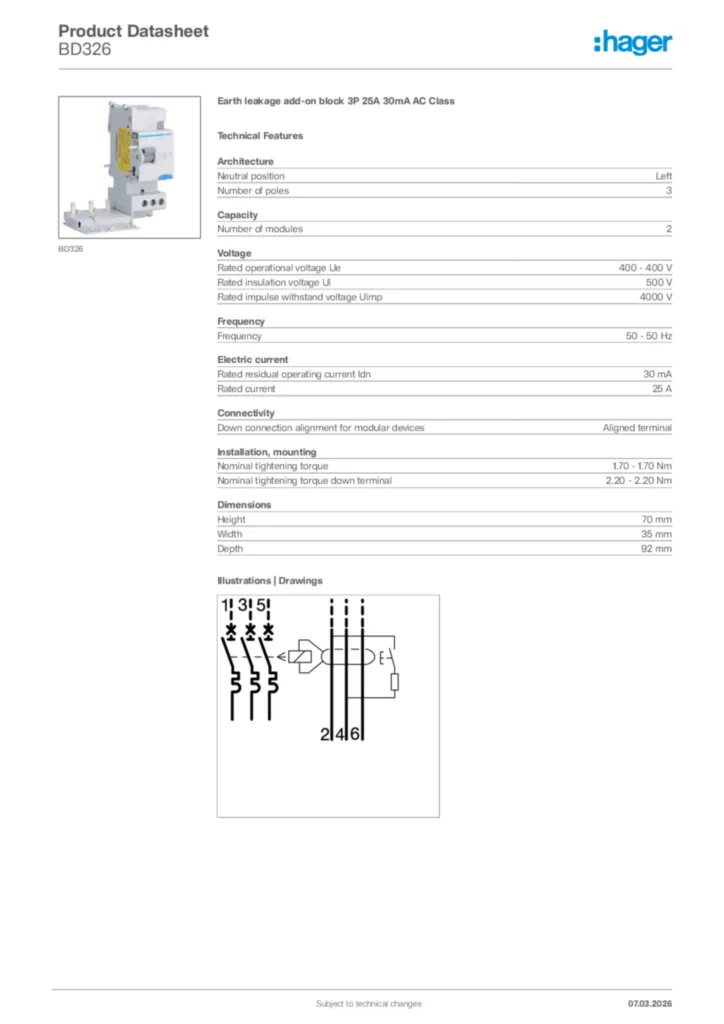

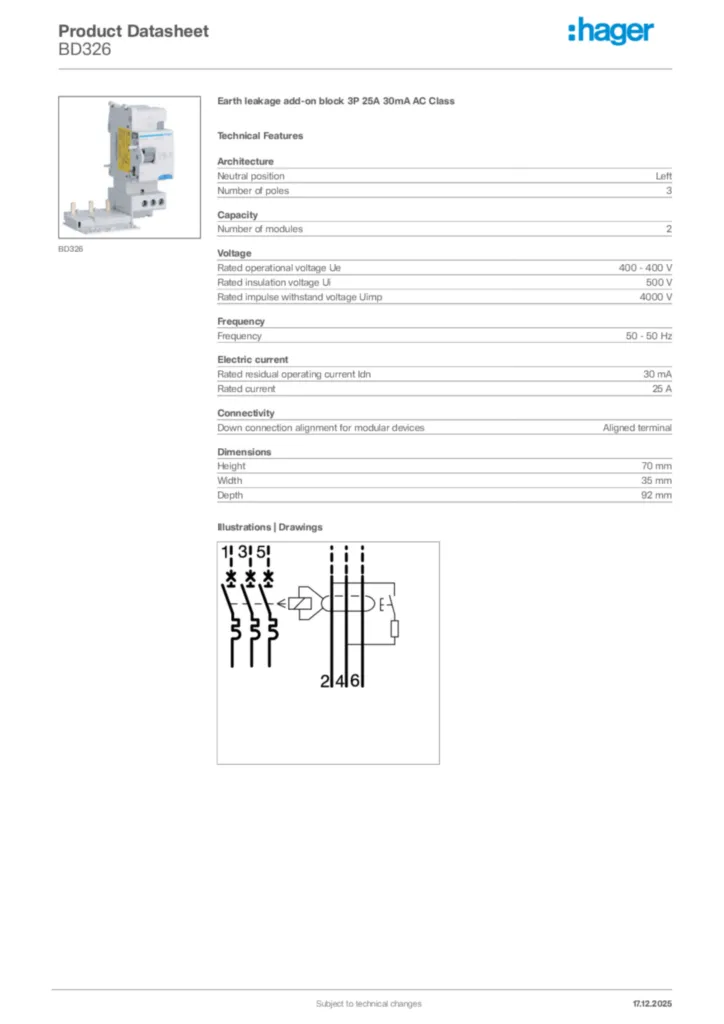

Product datasheet
Hager Product data sheet BD326
Earth leakage add-on block 3P 25A 30mA AC Class
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
