The Hager ATHEA internal corner 20x50 mm (brown RAL8014) enables neat, protected angle transitions in ATA 20x50 trunking. Adjustable 83-140° for flexible routing, with overlapping design for a clean finish. Moulded ABS, IK07 impact resistance, IP40 ingress protection, and -5 to 60 °C rating suit indoor use. Click mounting speeds installation for residential and commercial cable runs.
EAN
4012740865272
Packaging
1 Piece
External corner VDI 20x55 SL Aluminium adjustable 83-135° IP40 IK07 ATA205048014
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Accessories
-
Type of accessoryMoulded
Settings
-
Angle range83 - 140
Dimensions
-
Height20 mm
-
Width50 mm
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourBrown
-
RAL code8014
Safety
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
Connectivity
-
Mounting typeClick mounting
-
Related SeriesATA 20x50
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

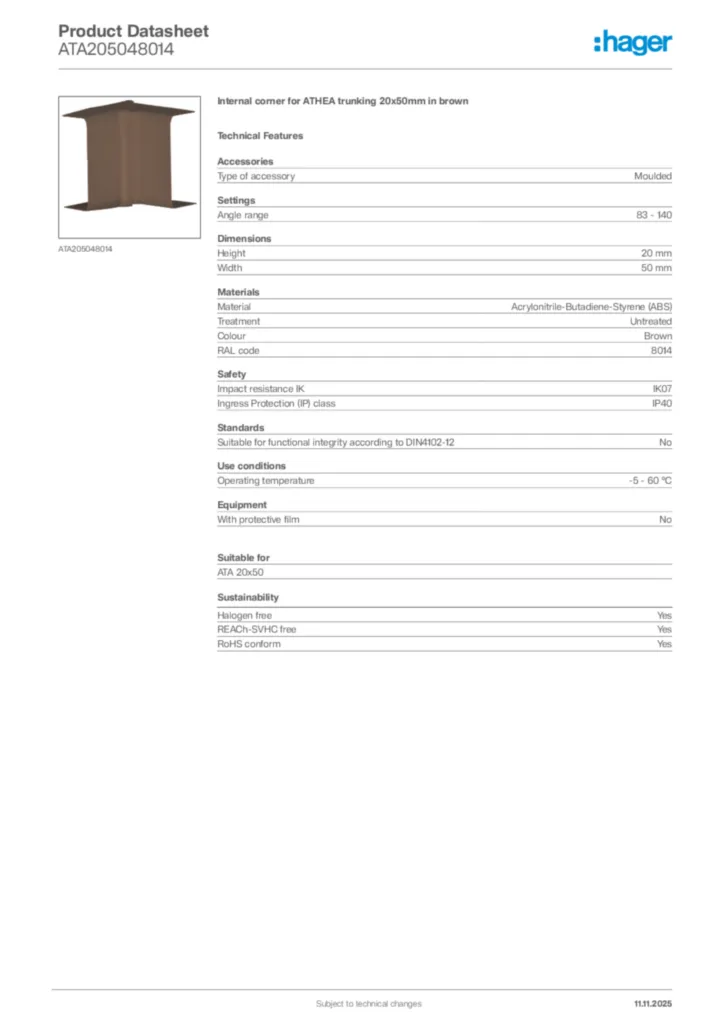

Hager Product data sheet ATA205048014
Internal corner for ATHEA trunking 20x50mm in brown
PDF -
Product licence
Product_Licence_NF004_1076_ATA
Product licence International 2021-02-12
PDF1,01 MB -
Declaration of conformity
EU-Declaration ATA T008A FR_EN 25072019
Declaration of conformity en-US, fr-FR 2023-10-31
PDF41,06 kB
