The Hager trunking 12x20 (L 2.1 m) in brown RAL8014 provides neat, protected routing for low-voltage cabling in residential and light commercial interiors. Compact (13 x 24 mm, 240 mm²), it fits tight spaces while accommodating up to one Ø11 mm cable (50% fill). Durable PVC with IK07 impact resistance and IP40 shielding ensures reliable protection. Operating range 15-60°C. Supplied without coupling, partitions or clips.

EAN

4012740864411

Packaging

84 Meters

Blanking strip Gamma 13 13M Pure White RAL9010 234.3 mm width ATA122008014

Accessories
Technical properties
Environmental value
Documentations
More products

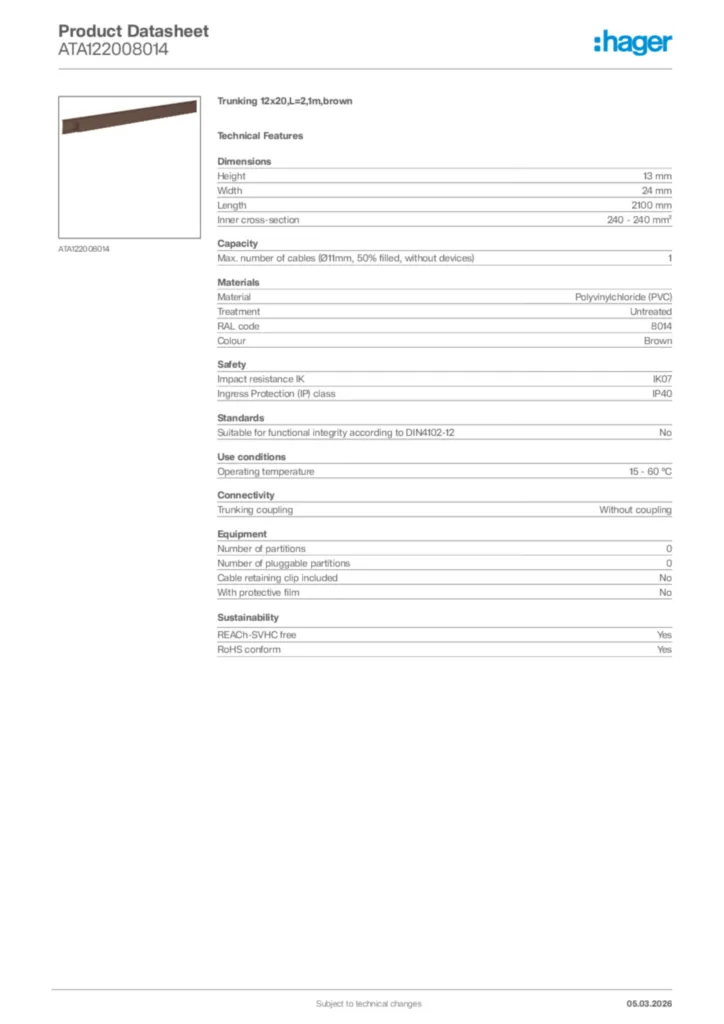

Download the data sheet

Complete your system

External corner for installation duct 1 products available
T-piece for installation duct 1 products available
End piece for installation duct 1 products available
Internal corner for installation duct 1 products available
Flat angle for installation duct 1 products available
Junction box for installation duct 2 products available

Technical properties

Height

13 mm
Width

24 mm
Length

2100 mm
Inner cross-section

240 - 240 mm²

Type of lid

Premounted

Max. number of cables (Ø11mm, 50% filled, without devices)

1

Material

Polyvinylchloride (PVC)
Treatment

Untreated
RAL code

8014
Colour

Brown
Transparent

No

Impact resistance IK

IK07
Ingress Protection (IP) class

IP40

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

15 - 60 °C

Trunking coupling

Without coupling

Number of partitions

0
Number of pluggable partitions

0
Cable retaining clip included

No
Number of cable retainers per meter

2
With protective film

No

With antibacterial treatment

No

Delivery on roll

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
