RCBO 1P+N 6kA B-16A 30mA A Class AD916J

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

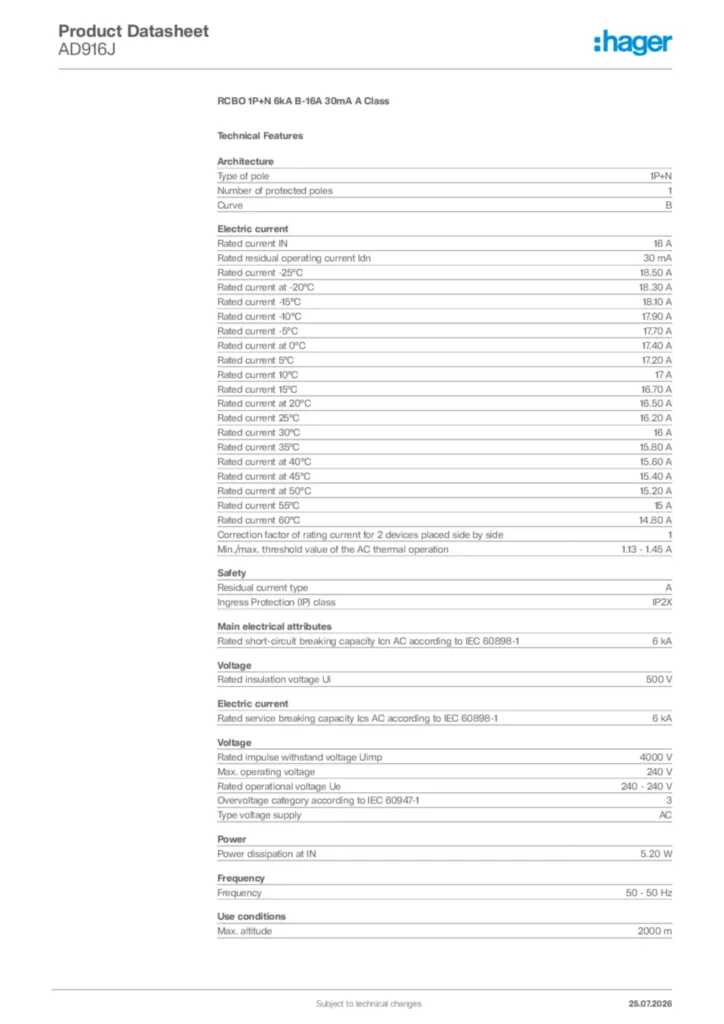

Download the data sheet

Technical properties

Type of pole

1P+N
Number of protected poles

1
Curve

B

Residual current type

A
Ingress Protection (IP) class

IP2X

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

240 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC

Rated current IN

16 A
Rated residual operating current Idn

30 mA
Rated current at -25°C

18.59 A
Rated current at -20°C

18.35 A
Rated current at -15°C

18.12 A
Rated current at -10°C

17.88 A
Rated current at -5°C

17.65 A
Rated current at 0°C

17.41 A
Rated current at 5°C

17.18 A
Rated current at 10°C

16.94 A
Rated current at 15°C

16.71 A
Rated current at 20°C

16.47 A
Rated current at 25°C

16.24 A
Rated current at 30°C

16 A
Rated current at 35°C

15.8 A
Rated current at 40°C

15.6 A
Rated current at 45°C

15.4 A
Rated current at 50°C

15.2 A
Rated current at 55°C

15 A
Rated current at 60°C

14.8 A
Correction factor of rating current for 2 devices placed side by side

1
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA

Power dissipation at IN

5.20 W

Frequency

50 - 50 Hz

Nominal tightening torque down terminal

2.10 - 2.10 Nm
Nominal tightening torque top terminal

2.10 - 2.10 Nm
Type of bottom connection for modular devices

biconnect

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

For all climates

Electric endurance in number of cycles

2000
Number of mechanical operations

2000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
