The Hager KNX radio timer quicklink with display (S.1/B.7, aluminium matt lacquer) automates lighting or blinds via KNX RF. Quicklink setup, 1 channel with 6 scenes, dimming and up/down. Astro shift ±2 h, summer/winter switchover, priority, keylock, reset, and switch protection. 8 h battery backup, dismantling protection. Ideal for retrofit KNX RF in S.x/B.x ranges; -5 to 45 °C.
EAN
4011334375340
Packaging
1 Piece
KNX RF timer quicklink 1-channel display S.1/B.3/B.7 anthracite 85745283
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels1
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourAluminium
Texts
-
FunctionEasy additional functions: +6 scenes, dimming, 1 up/down button control, priority, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (switch protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Height55.50 mm
-
Width55.50 mm
-
Depth30.30 mm
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

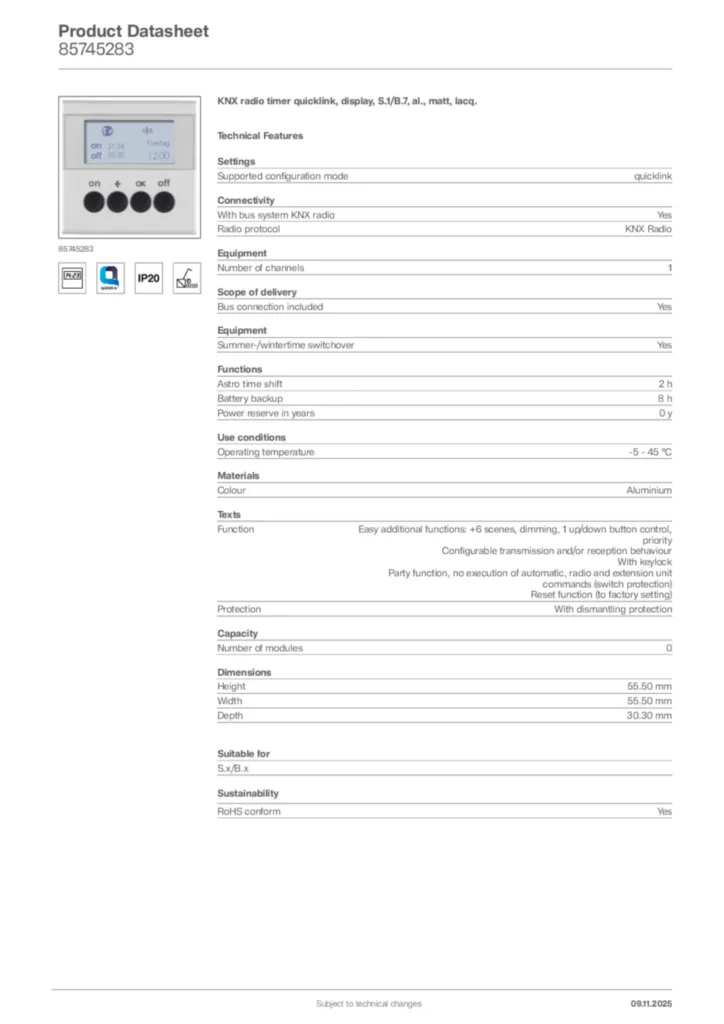

Product datasheet
