The Hager KNX radio timer quicklink with display (K.1, polar white glossy) delivers wireless time-based control for lighting or blinds via KNX Radio. One channel with quicklink setup, auto summer/winter changeover, astro shift ±2 h, and 8 h battery backup ensure reliable schedules. Supports dimming, 6 scenes, up/down control, priority, keylock and switch protection. Ideal for upgrades without rewiring.
EAN
4011334375494
Packaging
1 Piece
KNX radio timer quicklink with display, 1-channel, 8h backup, polar white 85745279
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels1
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourPolar white
Texts
-
FunctionEasy additional functions: +6 scenes, dimming, 1 up/down button control, priority, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (switch protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Height55.10 mm
-
Width70.50 mm
-
Depth30.10 mm
-
Related SystemsK.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

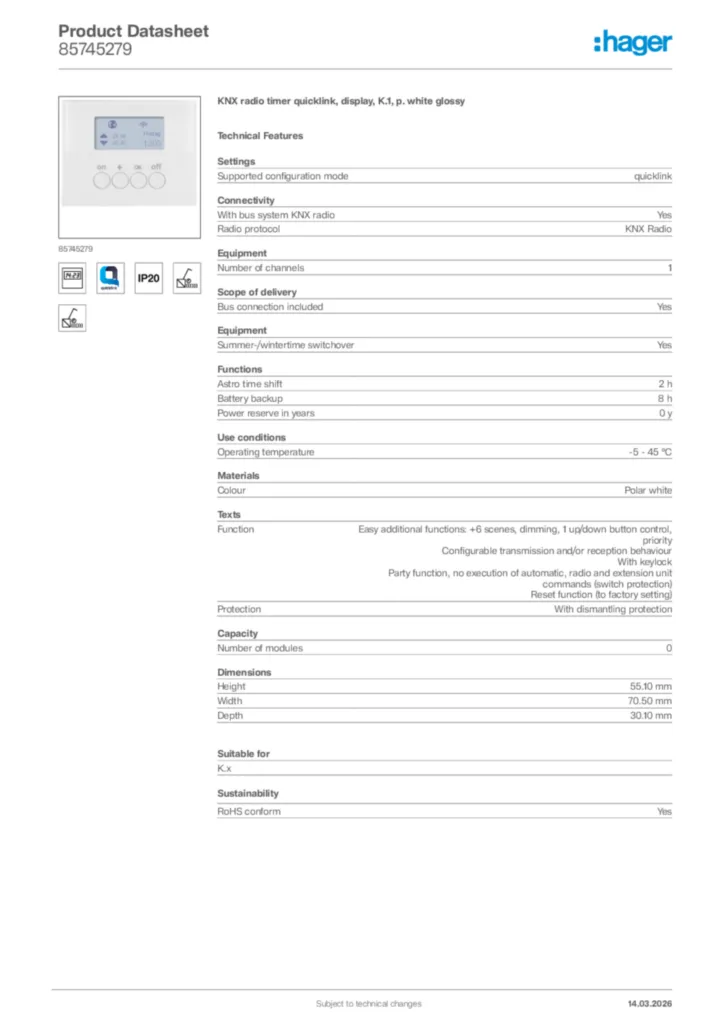

Product datasheet
Hager Product data sheet 85745279
KNX radio timer quicklink, display, K.1, p. white glossy
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF285,63 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF291,50 kB
