The Hager KNX radio timer quicklink with display, K.5 stainless steel matt lacquered, delivers 1‑channel wireless KNX control for lighting or blinds. Quicklink setup, summer/winter switchover and ±2 h astro shift enable precise scheduling. Offers 6 scenes, dimming, up/down, priority, keylock and reset. 8 h battery backup, dismantling protection, and included bus connector ensure reliable operation from -5 to 45°C.
EAN
4011334375531
Packaging
1 Piece
KNX Radio Timer quicklink 1-channel with display, 8h backup, K.5 Aluminium 85745273
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels1
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Texts
-
FunctionEasy additional functions: +6 scenes, dimming, 1 up/down button control, priority, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (switch protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Height55.10 mm
-
Width70.50 mm
-
Depth30.10 mm
-
Related SystemsK.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

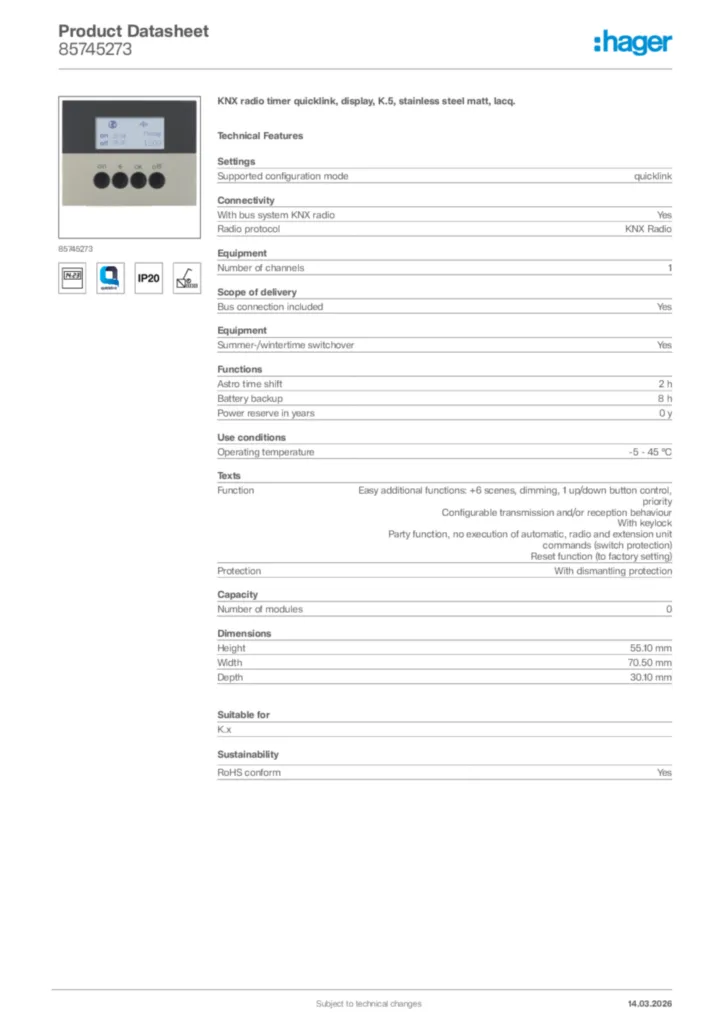

Product datasheet
Hager Product data sheet 85745273
KNX radio timer quicklink, display, K.5, stainless steel matt, lacq.
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF285,63 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF291,50 kB
