The Hager KNX radio blind time switch quicklink with display in polar white glossy (S.1/B.3/B.7) automates two blind/shutter channels via KNX Radio. Quicklink setup, DST and astro shift (±2 h) enable precise seasonal scheduling, with 8 h battery backup. Supports 6 scenes, up/down mode, configurable TX/RX, keylock and lock-out. Supplied with bus connection and dismantling protection; operates -5 to 45°C.
EAN
4011334375258
Packaging
1 Piece
KNX Radio Blind Time Switch 2-Channel with Display quicklink S.1 White Glossy 85745189
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels2
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Runtime2 min
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourPolar white
Texts
-
FunctionEasy additional functions: +6 scenes, 1 up/down operating mode, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (lock-out protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Height55.50 mm
-
Width55.50 mm
-
Depth30.30 mm
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

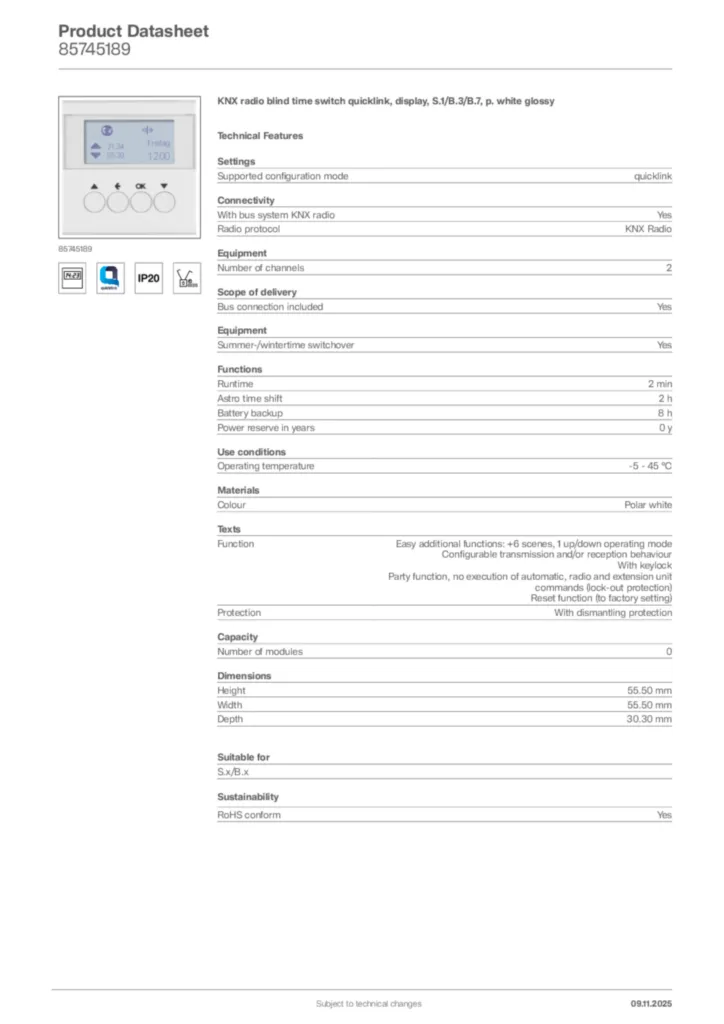

Product datasheet

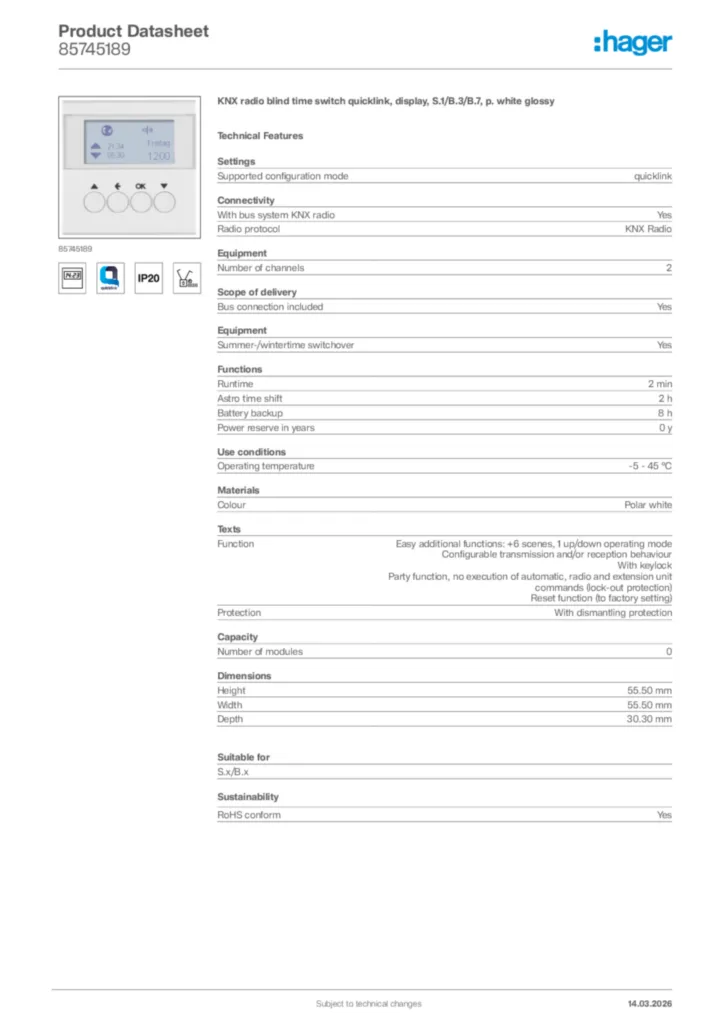

Hager Product data sheet 85745189
