The Hager KNX Radio Blind Time Switch quicklink with display (K.5, matt lacquered aluminium) automates blinds/shutters via KNX Radio for retrofit or new builds. Quicklink setup, 2 channels, astro time shift (±2 h), automatic summer/winter switchover, 2 min runtime, and 8 h battery backup ensure reliable scheduling. Offers 6 scenes, up/down mode, keylock, party/lock-out, configurable TX/RX, reset, and dismantling protection. Operates -5 to 45°C.
EAN
4011334382393
VPE
1 piece
KNX Radio blind time switch quicklink 2-channel, display, Anthracite K.1 85745177
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels2
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Runtime2 min
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourAluminium
Texts
-
FunctionEasy additional functions: +6 scenes, 1 up/down operating mode, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (lock-out protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Height55 mm
-
Width70 mm
-
Depth30 mm
-
Related SystemsK.x
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

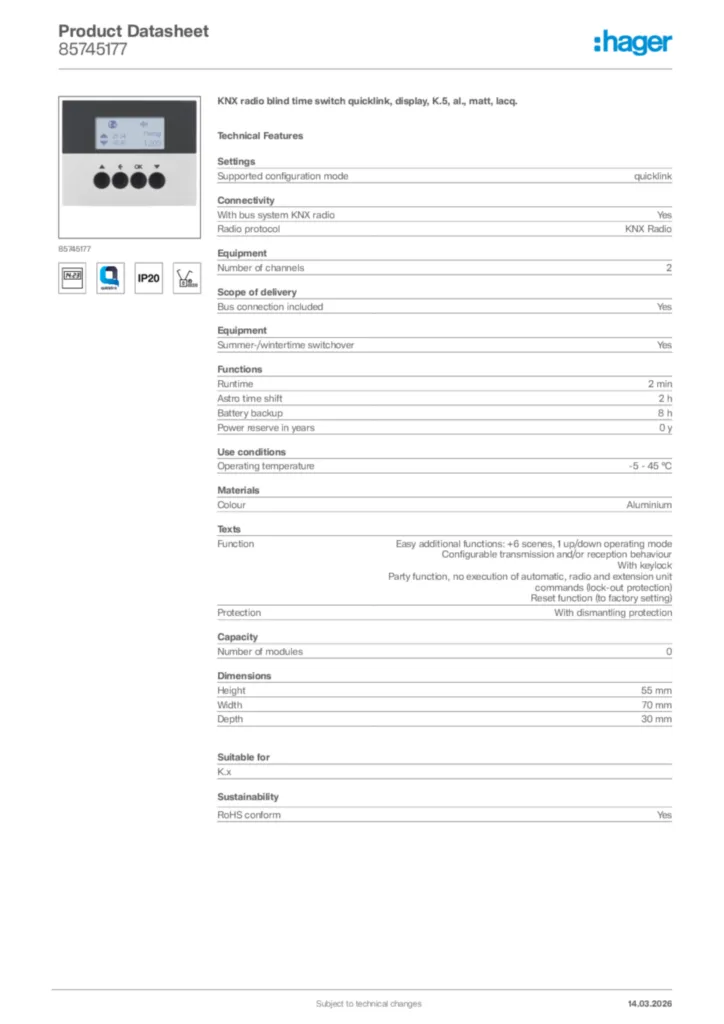

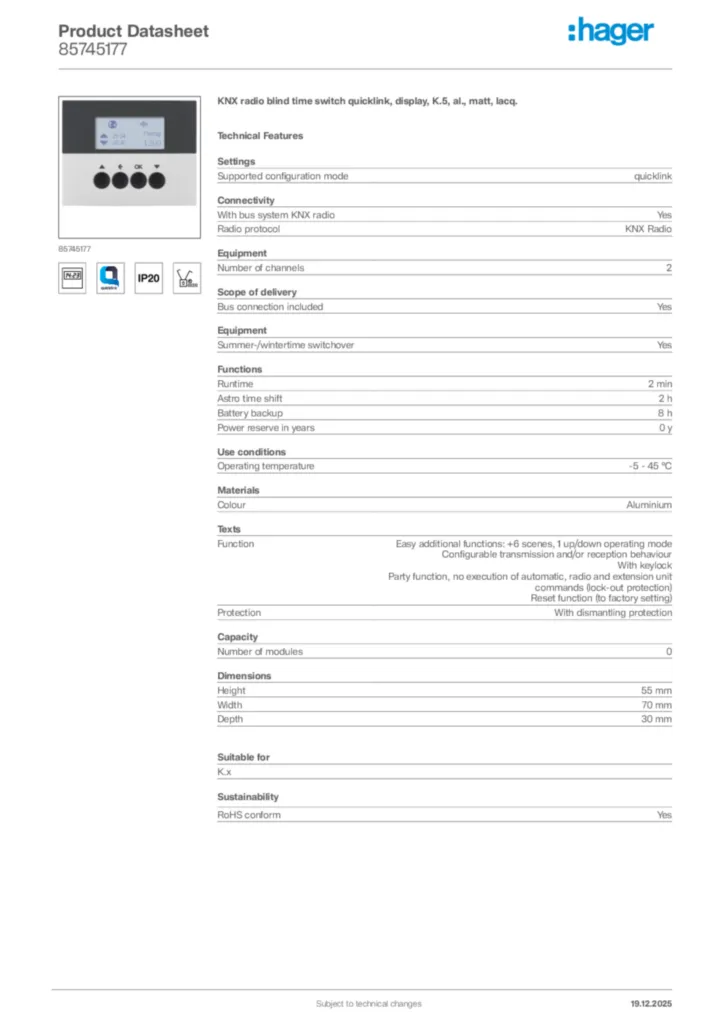

Hager Product data sheet 85745177
