KNX radio blind time switch quicklink, display, R.1/R.3/1930/R.cl., p.white gl. 85745139
EAN
4011334375708
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels2
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Runtime2 min
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourPolar white
Texts
-
FunctionEasy additional functions: +6 scenes, 1 up/down operating mode, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (lock-out protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Depth30.50 mm
-
Related SystemsR.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

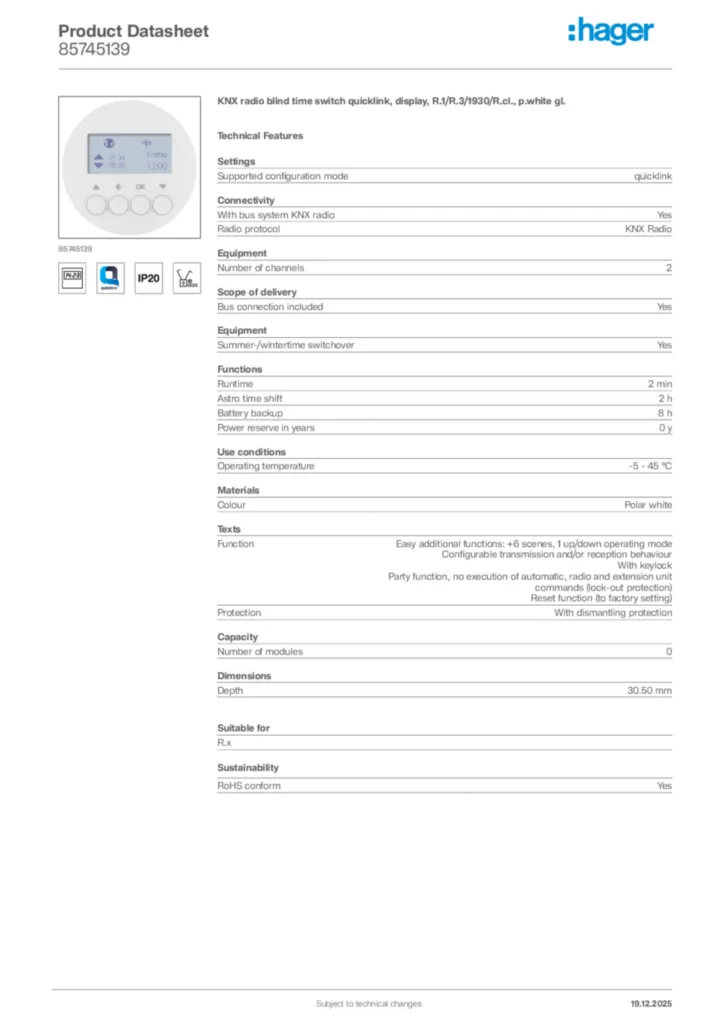

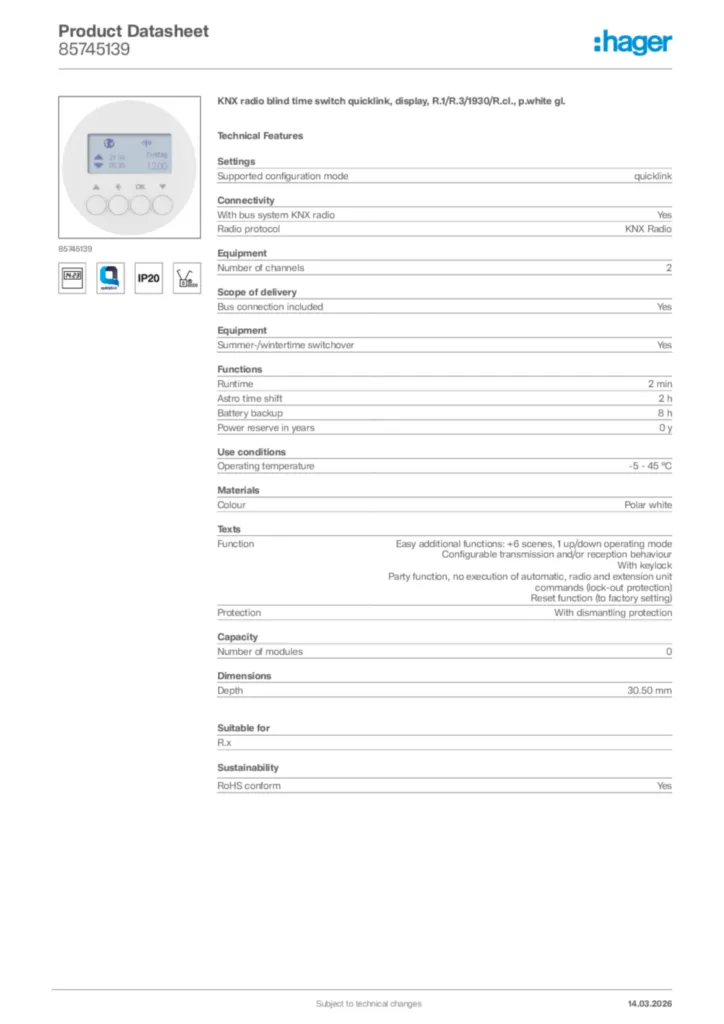

Product datasheet
Hager Product data sheet 85745139
KNX radio blind time switch quicklink, display, R.1/R.3/1930/R.cl., p.white gl.
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF288,56 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF286,16 kB
