The Hager KNX radio 2-gang flat solar quicklink wall-transmitter (S.1/B.7, aluminum matt) enables wireless control of lights, blinds, and scenes. Solar-powered (no batteries), 4-channel KNX Radio with quicklink for fast setup, +6 scenes, on/off and 1 up/down control, reset. Slim 14 mm surface-mount design with dismantling protection, IP20, -5 to 45°C. Ideal for retrofit and combination extensions.
EAN
4011334369653
Packaging
1 Piece
KNX radio wall transmitter 2-gang solar quicklink 4-channel anthracite 85656183
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modequicklink
Voltage
-
Operating voltage3 - 3 V
Equipment
-
Number of channels4
-
Transmitter duty cycle1 %
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
Use conditions
-
Operating temperature-5 - 45 °C
Dimensions
-
Assembling height14 mm
Materials
-
ColourAluminium
-
MaterialThermoplastic
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
-
ProtectionWith dismantling protection
-
VoltagePower supply via solar cells
-
Installation modeFor flat surface mounting and extension of combinations
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

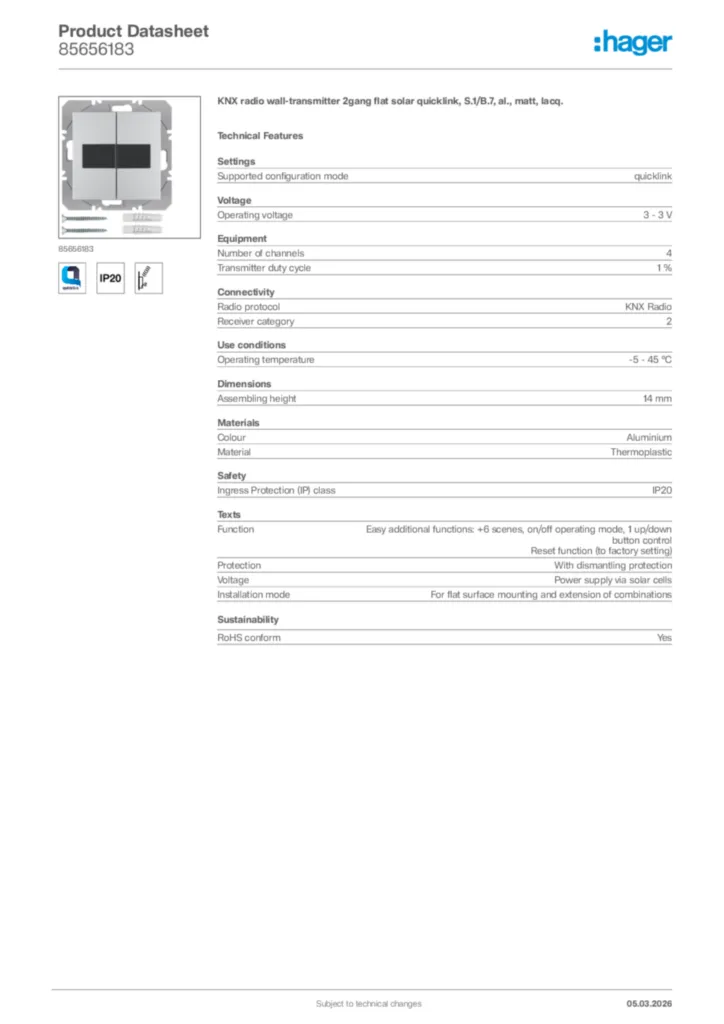

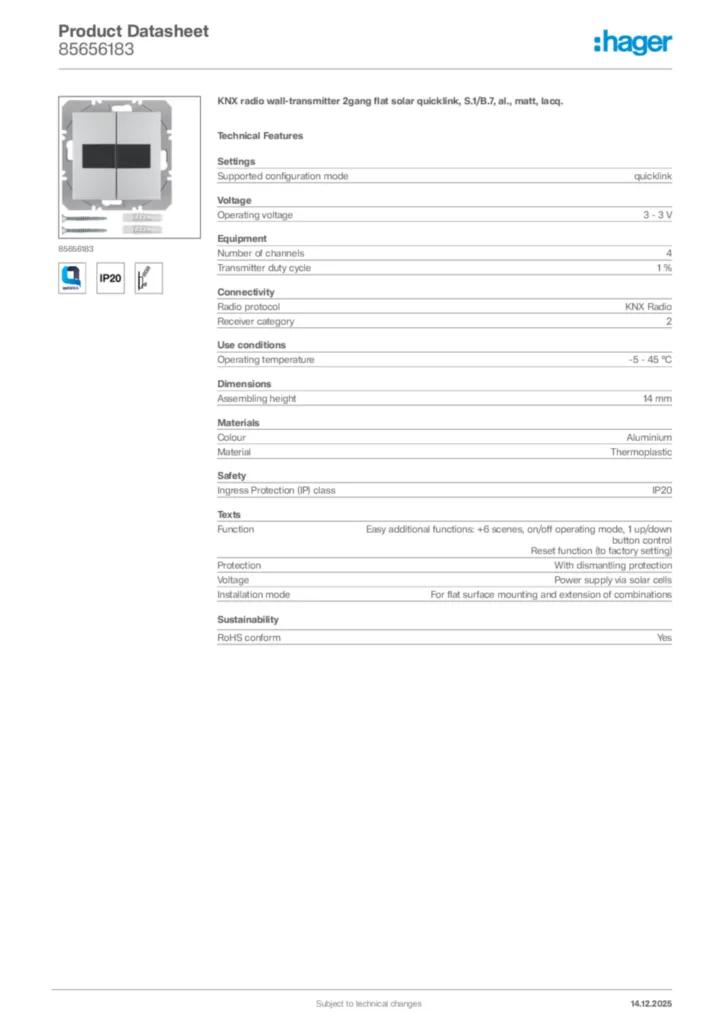

Product datasheet
Hager Product data sheet 85656183
KNX radio wall-transmitter 2gang flat solar quicklink, S.1/B.7, al., matt, lacq.
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF290,47 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF292,46 kB
