The Hager KNX radio wall-transmitter 2-gang S.1 (white glossy) offers battery-free wireless control via integrated solar cells. Quicklink configuration, 4 channels, +6 scenes, on/off and up/down control suit lighting and blinds. Slim 14 mm surface-mount design with dismantling protection, IP20, −5 to 45 °C. Ideal for retrofits and extensions without wiring, using KNX Radio (receiver category 2), 1% duty cycle.
EAN
4011334369615
VPE
1 piece
KNX RF wall transmitter 1-gang solar powered quicklink 2-channel Polar white 85656182
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Settings
-
Supported configuration modequicklink
Voltage
-
Operating voltage3 - 3 V
Equipment
-
Number of channels4
-
Transmitter duty cycle1 %
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
Use conditions
-
Operating temperature-5 - 45 °C
Dimensions
-
Assembling height14 mm
Materials
-
ColourWhite
-
MaterialThermoplastic
-
RAL codeSimilar to RAL 1013
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
-
ProtectionWith dismantling protection
-
VoltagePower supply via solar cells
-
Installation modeFor flat surface mounting and extension of combinations
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

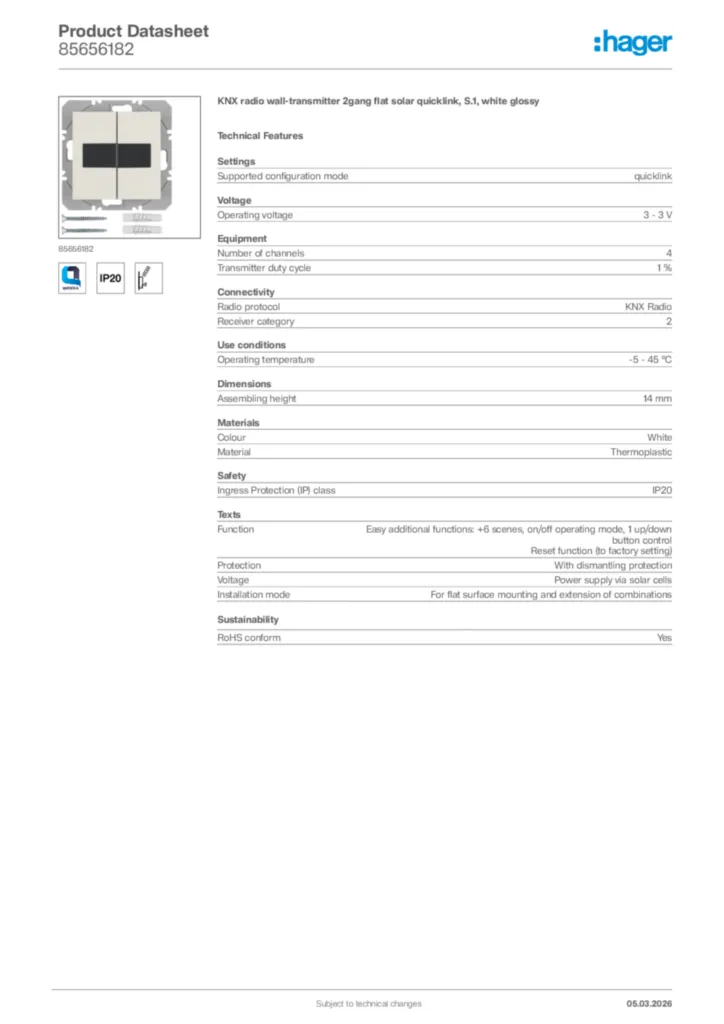

Hager Product data sheet 85656182
KNX radio wall-transmitter 2gang flat solar quicklink, S.1, white glossy
PDF -
ProductECDeclaration
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF292,46 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF290,47 kB
