The Hager KNX radio wall-transmitter 1-gang flat quicklink (K.5, aluminium matt lacquer) enables wireless KNX control for retrofits and extensions. Offers 2 channels, up to 6 scenes, on/off and up/down control, plus factory reset. Quicklink setup, slim 14 mm surface-mount design. 3 V battery, KNX Radio, duty cycle 1%, IP20, -5 to 45 °C, thermoplastic body, receiver category 2, dismantling protection.

EAN

4011334382225

Packaging

1 Piece

Actuators, controls, gateways, …

KNX Radio quicklink wall transmitter 1-gang 2-channel flat anthracite IP20 85655277

Technical properties
Environmental value
Documentations
More products

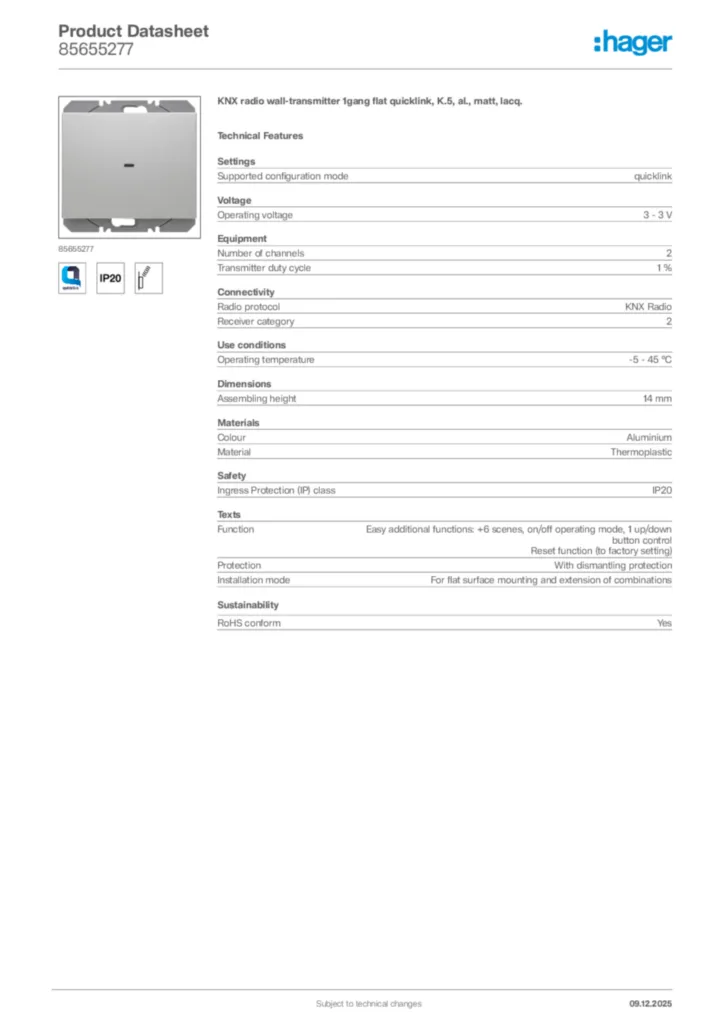

Download the data sheet

Technical properties

Supported configuration mode

quicklink

Operating voltage

3 - 3 V

Number of channels

2
Transmitter duty cycle

1 %

Radio protocol

KNX Radio
Receiver category

2

Operating temperature

-5 - 45 °C

Assembling height

14 mm

Colour

Aluminium
Material

Thermoplastic

Ingress Protection (IP) class

IP20

Function

Easy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
Protection

With dismantling protection
Installation mode

For flat surface mounting and extension of combinations

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
