The Hager KNX radio wall-transmitter 1-gang flat quicklink (K.5, stainless steel matt lacquer) provides wireless control for KNX scenes, lighting, and blinds. With 2 channels, quicklink setup, +6 scenes, on/off mode, up/down control, and factory reset, it’s flexible and simple to commission. Slim 14 mm, IP20, -5 to 45 °C. Durable stainless steel/thermoplastic, dismantling protection, and flat surface mounting for easy upgrades.
EAN
4011334370567
VPE
1 piece
KNX Radio Wall Transmitter 1-gang quicklink 2-channel Aluminium IP20 85655273
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Settings
-
Supported configuration modequicklink
Voltage
-
Operating voltage3 - 3 V
Equipment
-
Number of channels2
-
Transmitter duty cycle1 %
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
Use conditions
-
Operating temperature-5 - 45 °C
Dimensions
-
Assembling height14 mm
Materials
-
ColourStainless steel
-
MaterialStainless steel, Thermoplastic
-
RAL codeSimilar to RAL 9022
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
-
ProtectionWith dismantling protection
-
Installation modeFor flat surface mounting and extension of combinations
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

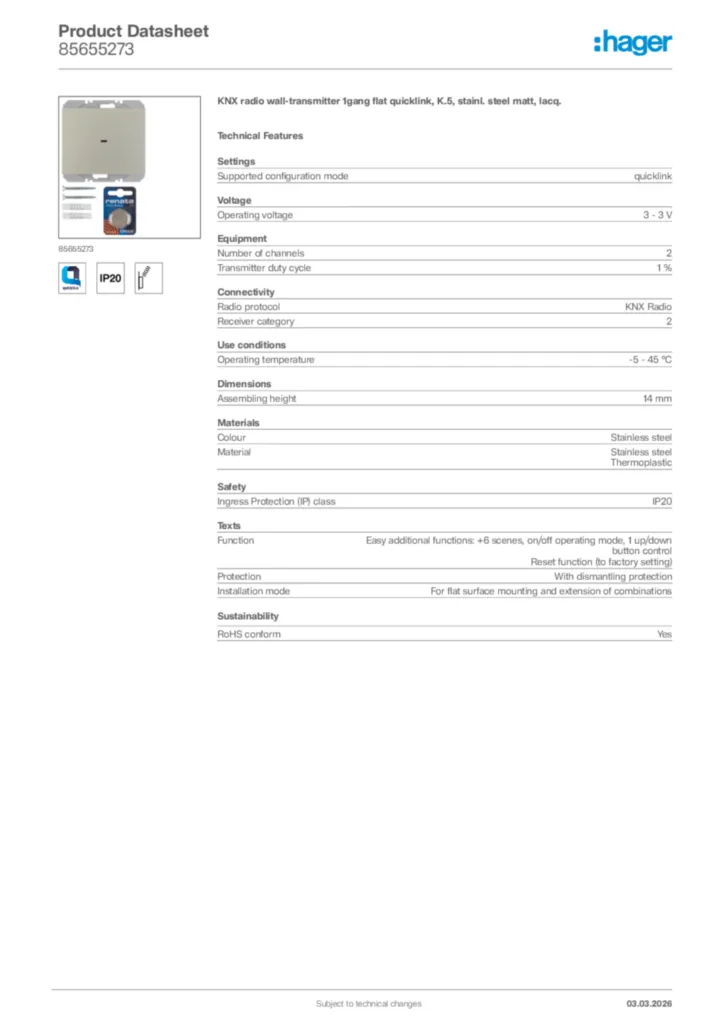

Hager Product data sheet 85655273
KNX radio wall-transmitter 1gang flat quicklink, K.5, stainl. steel matt, lacq.
PDF -
ProductECDeclaration
Declaration of Conformity
Declaration of conformity International 2021-09-14
PDF306,69 kB
Declaration of Conformity
Declaration of conformity International 2021-09-14
PDF307,99 kB
